10326813-1-M-Delta-899356-Roller-Outfeed
Part Location Diagram of 899356 Delta Roller-Outfeed
See part 185 in the diagram
( Grid squares measure 1x1 inch )
10326813-1-S-Delta-899356-Roller-Outfeed 10326813-2-S-Delta-899356-Roller-Outfeed Part Location Diagram of 899356 Delta Roller-Outfeed

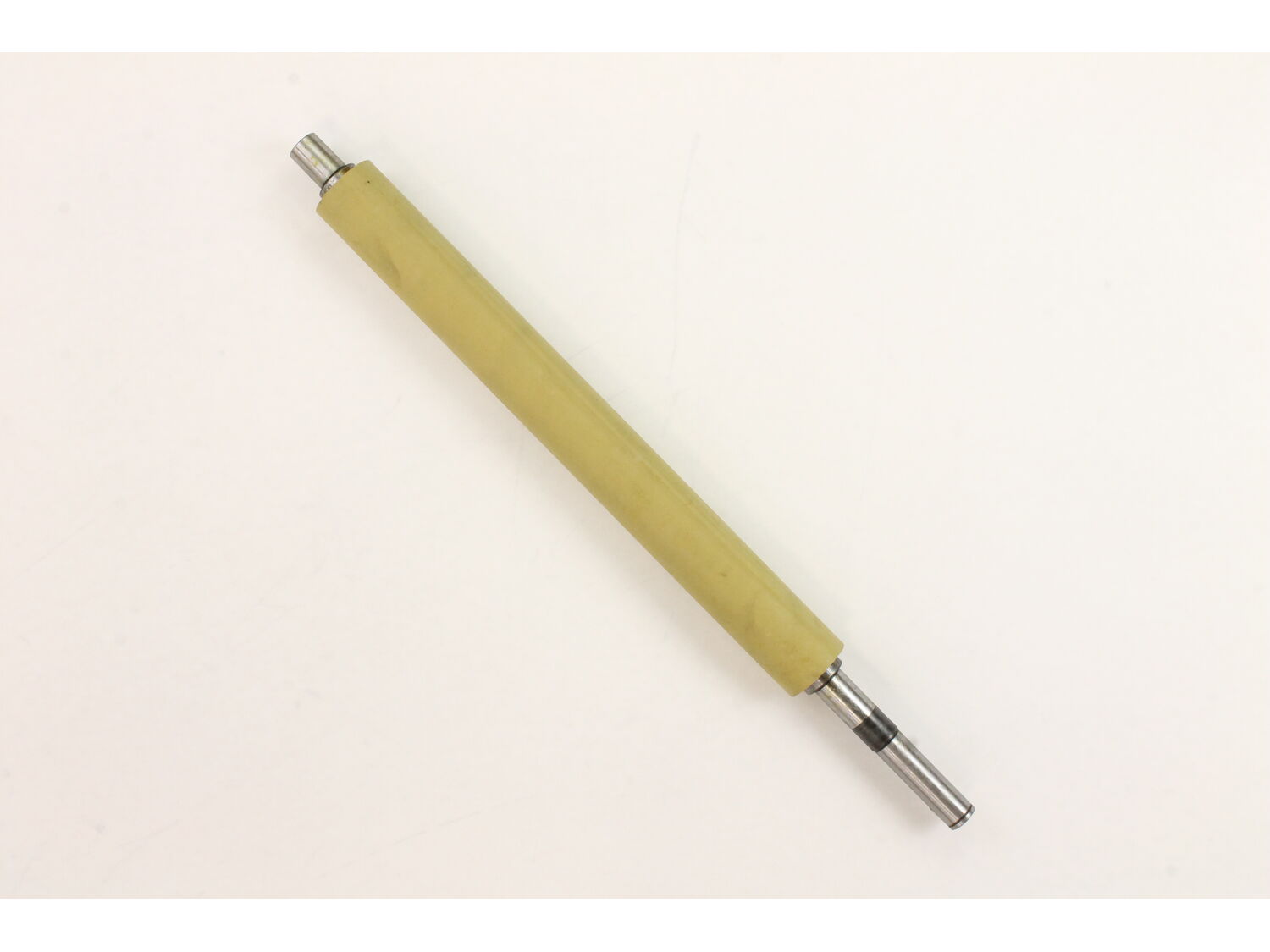

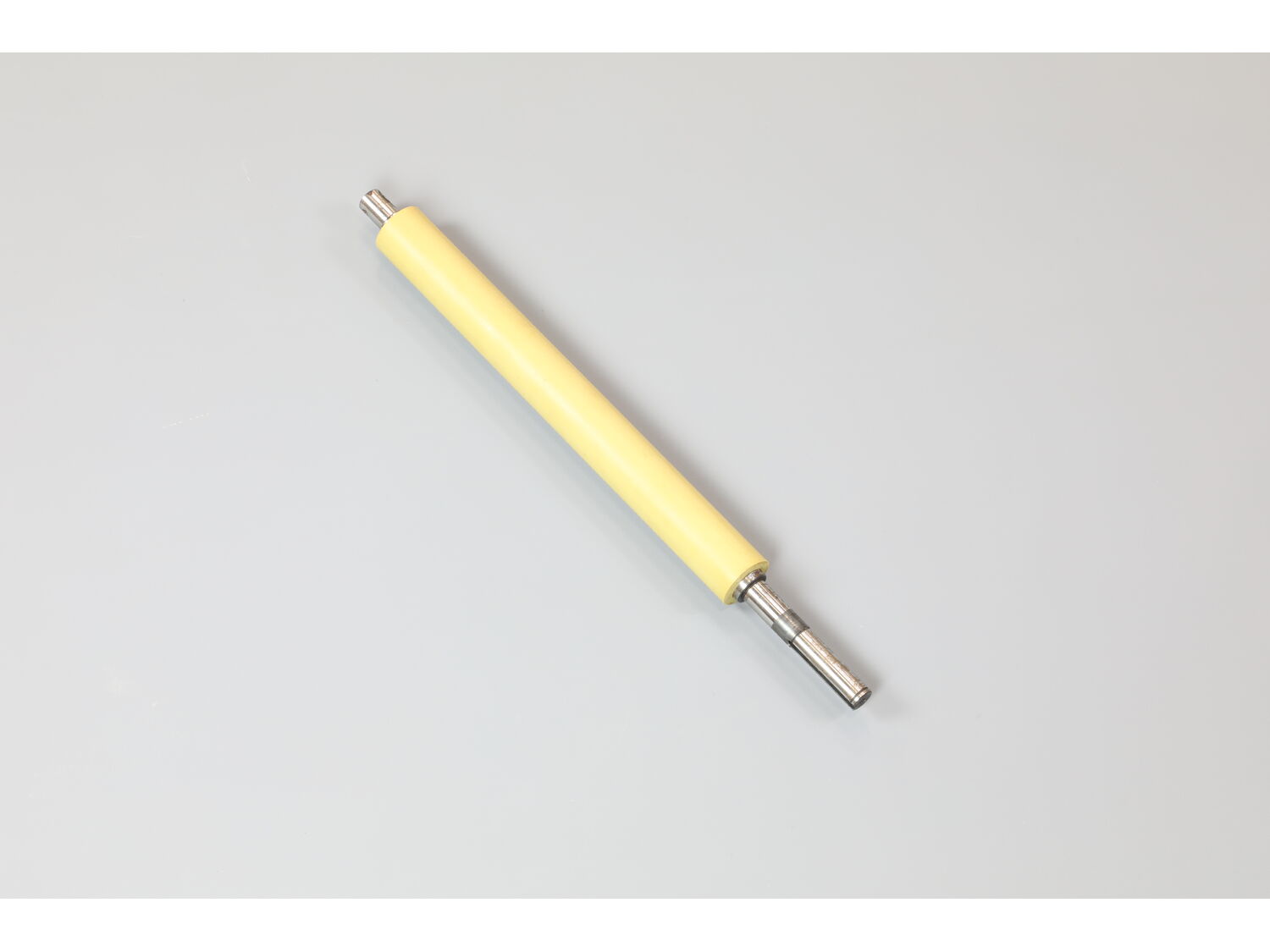

Roller-Outfeed 899356

Manufactured by:
Delta
ERP Number:
ERP10326813
Part Number:
899356
Original Equipment Manufacturer ?
$75.89
Special Order

A Bit Difficult

1- 2 hours

(5 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Frequently Purchased Together Troubleshooting Questions & Answers Repair Instructions Model Cross Reference

Frequently Purchased Together

?

Troubleshooting

This part works with the following brands:
  • Delta
This part works with the following products:
  • Planer Jointer

Questions & Answers

?

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?
  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
My delta planer no longer feeds the wood through and it sounds like a stripped gear ? What do i need
James - March 11, 2023

Hi James, Thank you for your question. If your planer is not feeding the wood, there are some parts that you will need to check to see which one is causing the issue. We recommend checking the drive belt, the infeed and outfeed rollers, the planer knives and the key. If you suspect the gears, you will need to check them to. Once you have determined the part you need, please call customer service. We look forward to hearing from you!

eReplacementParts Team
March 11, 2023

Did this question help you?
Thank you for voting!

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

1- 2 hours

(5 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

In and outfeed rollers were glazed and would not feed the wood

Greg from Harvest, Alabama

2 of 2 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Socket set, Wrench set
Parts Used:
899357, 899356
Found on-line procedure for infeed roller along with Delta owners manual for out feed roller adjustment, job was fairly straightforward. Most difficult task was the chain and sprocket removal and replacement. Fortunately my son-in-law had a bicycle chain tool and saved the job. Planer operates like it did on day one. If I had remembered to check with ereplacement for Delta\'s discontinued parts I would have never bought a new planer. Thanks for a great service. Greg.
Read less
Did you find this story helpful?
Thank you for voting!

Rollers had flat spot and needed to be replaced.

Jay from POCATELLO, Idaho

1 person found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Socket set
Parts Used:
899357, 899356
1. Take the cover off and raise the assembly.
2. The roller assembly, located underneath, has two mounts, one on either side. Take the two screws per mount off and drop the roller bearing. The roller will come free.
3. Replace the roller and reassemble.
Did you find this story helpful?
Thank you for voting!

Roller quit grabbing and slipped wood sporadically

Mark from KIRKLAND, Washington

1 person found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers
Parts Used:
899357, 899356
I removed the top and both side covers. Removed the chain guard. I removed two retaining rings on the gear side of the rollers and removed the gears. I removed the retaining blocks on the opposite side and slid the rollers out. I had to loosen the gear side a little as well. I slid both rollers out and the new rollers in then reversed the prosses had trouble with the block springs so I
Lowered the rollers on a large block to hold them up while I tightened the screws.
Read less
Did you find this story helpful?
Thank you for voting!

infeed and outfeed rollers would not grip due to age

Glen from Filer, Idaho

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Parts Used:
899357, 899356
replaced in and out feed rollers
Did you find this story helpful?
Thank you for voting!

Infeed & outfeed rollers worn out

Larry from Fredericksburg, Texas

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Screw drivers, Wrench set
Parts Used:
899357, 899356
Removed covers, gear box with sprockets & chains , placed wood blocks under feed rollers & lowered the knife head to relax the spring tension. Removed the roller retainers & springs & installed the new rollers then reversed the procedure.
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP10326813
Manufacturer Part Number: 899356
Brand Model Number Description
Delta 22-580 Planer Jointer - Planer
Roller-Outfeed
$ 75.89
