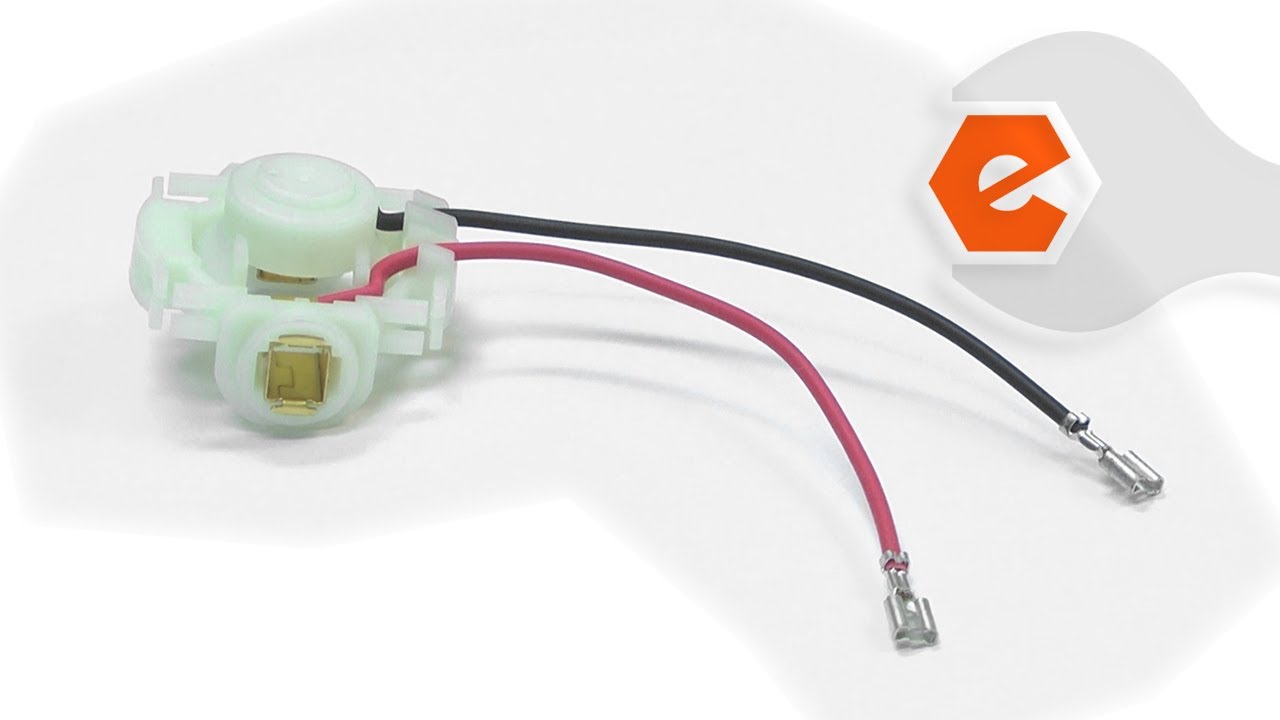

The endbell goes between the yoke unit and the housing set and is available individually. This is an authentic replacement part sourced from the original manufacturer for use with Makita grinders. It is made out of plastic and metal and will need to be replaced if it becomes broken. A screwdriver may be needed during the installation of this part.
Removed the body screws and head, split the grinder, removed the end bell and replaced with the new one with new brushes, then put it back together. Then finished with a new holder cap cover
Took grinder all the way apart. Unhooked clip on color coded wires, then removed endbell. Inserted new endbell into same slot and reconnected wires to the same locations as previous wires. Put grinder back together and installed new bushes. Bingo!
1. Removed the metal head. (4 screws)
2. Removed the screws holding the body together. (5 screws)
3. Removed the two dust brush covers and the two screw on brush covers.
4. Removed the two brushes.
5. Removed the brush holder with two wires. (mine was melted from the heat.)
6. Greased the gear head with a li
... Read moreght grease. (I used superlube)
7. Reassemble in opposite order of taking it apart.
Read less
