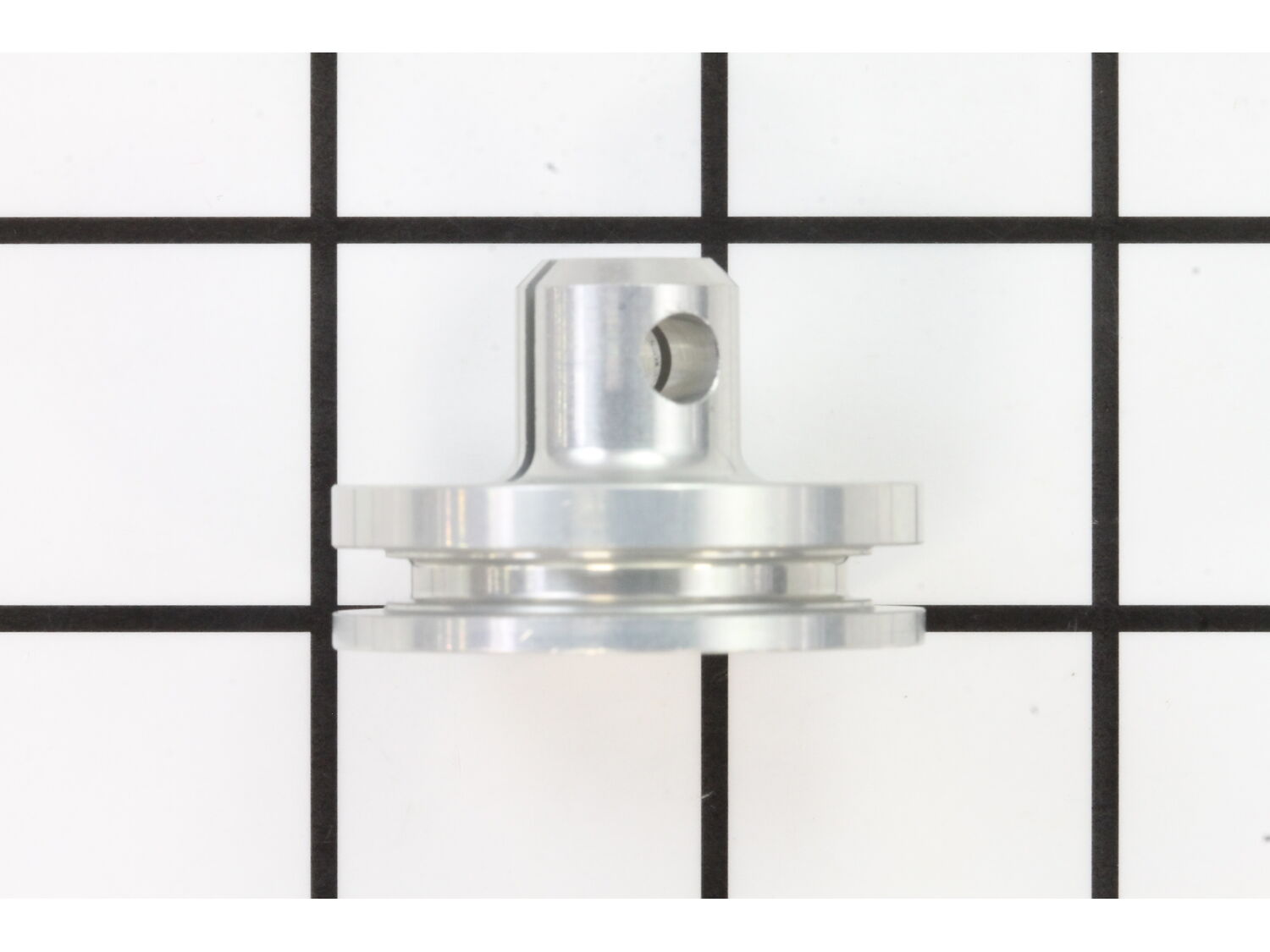

This replacement main piston helps restore driving power and consistent stapling performance by transferring compressed air to the tool's driving mechanism. Built from durable metal for long-lasting reliability, it is an ideal solution for repairing staplers that are experiencing power loss, misfires, or inconsistent operation. Installation typically involves disassembling the cylinder assembly, replacing the worn piston, and reassembling the tool according to the manufacturer's service procedures. Regular lubrication and maintenance can help extend tool life and maintain peak performance.
Remove the top of the gun, remove the piston/driver. Remove the worn seals. Clean and lube the inside of the gun. Line up the hole in the driver and the hole in the piston, then with a punch drive the larger pin in first, then the small pin inside of the larger one. Install the piston and driver, and the new seals. Then replace the top.
<
... Read morebr />
Easy to get parts from you by going to your model break down of exact staple gun and order parts. Thanks, been using you for years...
Pull head off 4screws
Push piston out
Put new piston in vice and assemble driver bang in rivets with hammer and back side of nail punch there are 2 rivets big one 1st then 2nd
Install new seals
Slide in driver put head back the way it was tighten 4 machine screws
Take a break
Go back to making money
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP10072298
Manufacturer Part Number: EC0168
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
