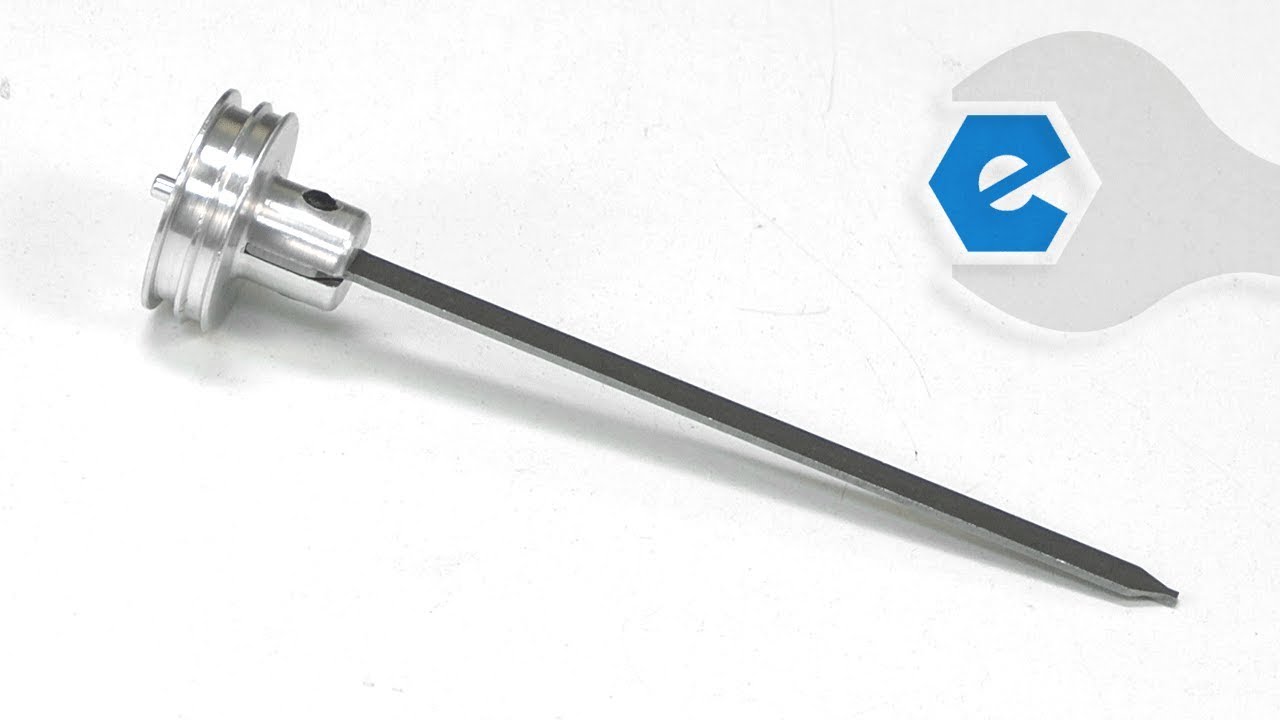

This is an authentic OEM sourced replacement part designed for use with brad nailers. The piston/driver assembly is the part of the nail gun that drives the nail into the material that is being used. Drivers do have a tendency to bend or break if not used correctly or if you are driving nails into extra hard material. This assembly is made out of metal and it is sold individually. To help extend the life of a pneumatic tool use the specified oil in it daily 4-5 Drops will do every time you use it. To replace this part you would need a screwdriver • First you want to remove 4 screws from cap • Remove the cap • Remove driver, and take out piston ring and o-ring • Secure the o-ring and piston ring on new driver • Install new driver • Reattach the cap with the 4 screws
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Nail gun driver
Quality parts, fair pricing. The nail gun works great again.
Guest - July 2, 2020
Verified Purchase
★★★★★
★★★★★
Fu fácil de reparar
La llego rápido de lo que yo pensaba, por eso se los recomiendo para que orden piezas que pueden encontrar más fácil y así poder estar más satisfechos de las cosas que uno compra, gracias
Guest - November 10, 2020
Verified Purchase
★★★★★
★★★★★
Driver
Items I purchased shipped quickly and were an exact fit. Great prices.
Guest - January 1, 2021
Verified Purchase
★★★★★
★★★★★
23 gauge piston and ring
Wolf's website gave me a little trouble got the wrong part but customer service was great and took care of me and got the parts swept out and installed in my gun and everybody's happy now I got to find the next replacement Piston from my other nailer =ƒÿè=ƒæì
Anonymous - June 14, 2022
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Take off the back of the nailer off, usually 4 Allen bolts, there is a spring in the head valve so itGÇÖll try to push out, I usually unscrew a little of each bolt at a time.
2. Once open, you wanna get the cylinder loose, I use rag and grab ahold of the cylinder and gently move it in all directions, while trying to pull, mine c
... Read moreame out easy because it was cracked, but some can be tight. Take your time and it will pop out.
3. Inspection of broken parts first, then all o-rings that are on the cylinder and the driver were changed.
I use a little grease on each so the o-ring doesnGÇÖt twist or not seal properly.
4. Make sure you took note of which way the cylinder goes and the plastic ring that holds it in place, I usually take pictures, and ziplock/label parts that are easy to lose.
5. After all o-rings are changed, install the cylinder, you need to be gentle but push as even as possible so there is a good seal, install the driver after a bit of grease, making sure you are right side up, the driver rod has a groove, make sure you look to see which way yours goes in.
6. Finally done with the hard part, to reinstall the back valve body, first replace the gasket, then line up the bolt holes, the spring will push up, so you need to hold it and install the two adjacent screws first, holding it down prevents stripping the bolts, and once they are all in I will tighten in a sequence,
(R top, L bottom) and same on the other two bolts.
7. Finished, first attach air hose, to check for leaks, if non insert nails and test on a scrap board. Adjust sink depth because that can change with new seals.
My gun works, I love it, rigid is my favorite nailer, and ereplacementparts.com is my go to for buying parts for all my tools!
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP18990119
Manufacturer Part Number: 9R195283-K
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
_WW.gif "Part Location Diagram of 9R195283-K DeWALT PISTON DRIVER ASSEMBLY")
_WW.gif "Part Location Diagram of 9R195283-K DeWALT PISTON DRIVER ASSEMBLY")
