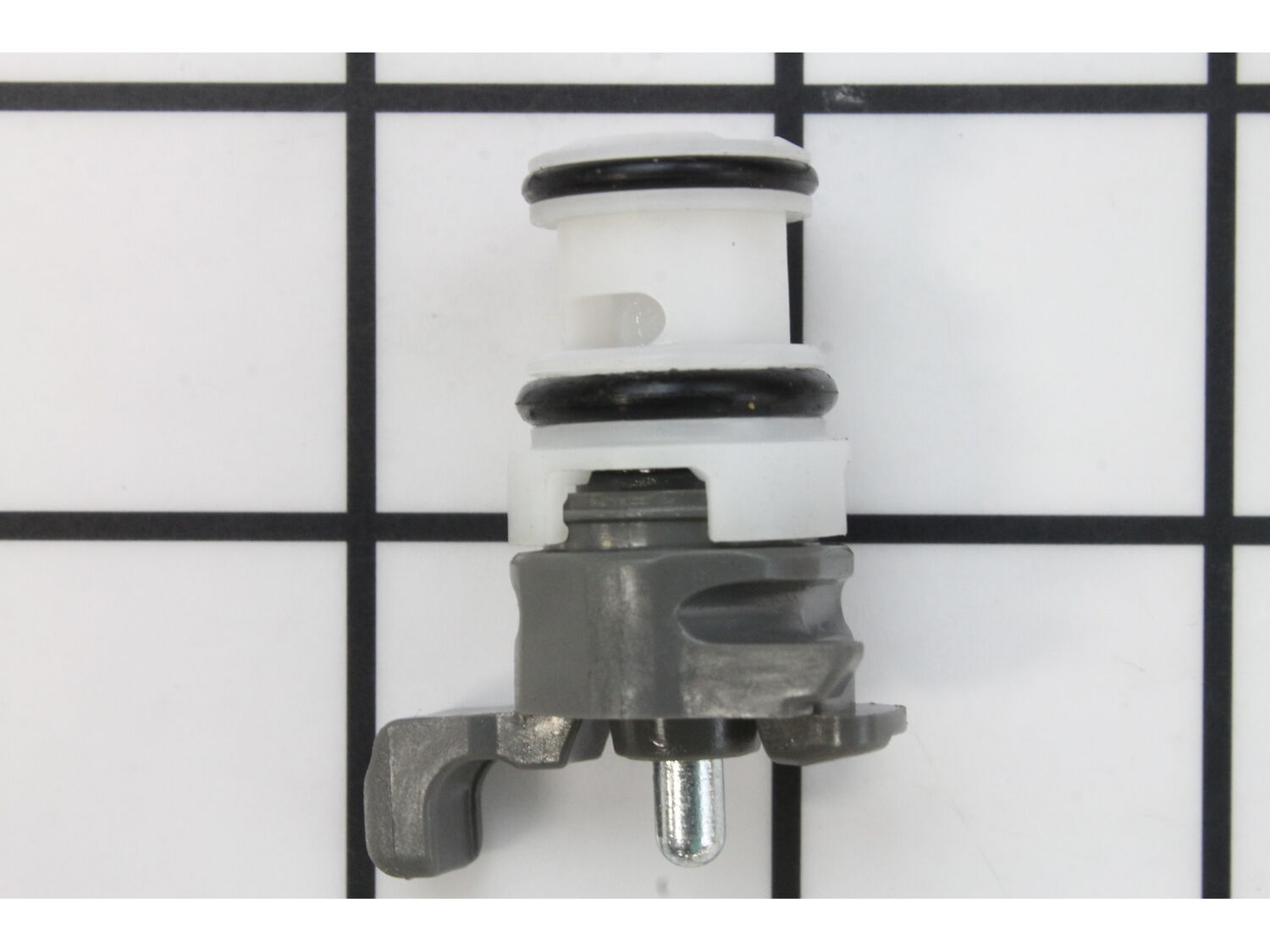

It is a genuine Porter Cable replacement part, sold individually.
The Trigger Valve Assembly regulates the compressed air via the trigger to your Nailer.
Repair is fairly easy, requiring a small hammer and a punch pin. Remove trigger pin with punch pin, remove trigger, remove pins and valve assembly, clean area and lubricate o-ring is recommended, replace valve assembly and trigger.
This part is compatible with the Nailers shown below.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Easy repair. DIY friendly
Arrived as expected. Perfect fit.
Paul - April 29, 2019
Verified Purchase
★★★★★
★★★★★
Parts worked great!
The parts were exactly what I needed and once installed, it worked perfectly! No air leak!
Guest - May 1, 2019
Verified Purchase
★★★★★
★★★★★
This was what it needed
Just needed a little force to snap it in place. Would be nice if PC would offer the little seal needed instead of overcharging for a full assembly.
Guest - June 4, 2019
Verified Purchase
★★★★★
★★★★★
correct part. easy replacement. arrived as scheduled.
Porter Cable DA205C finish nailer. would not fire. no air leakage noted. internal o-rings on trigger valve destroyed by age, turned to gum.
Replaced assembly, gun fired normly.
Guest - June 6, 2019
Verified Purchase
★★★★★
★★★★★
Easy fix
This was a easy fix. The part arrived promptly.
Gerardo - June 17, 2019
Verified Purchase
★★★★★
★★★★★
same part and simple to replace
arrive ok , work ok , the only thing is not coming the retainer ring for pin to hold the trigger , after installed work very good, I have another and I will order same.
Guest - June 23, 2019
Verified Purchase
★★★★★
★★★★★
Easy repair if you have the right size drift.
Fixed the air leak / no fire problem.
Tom - June 26, 2019
Verified Purchase
★★★★★
★★★★★
Worked great
Easy to install and work great
Guest - July 6, 2019
Verified Purchase
★★★★★
★★★★★
Porter Cable Trigger Value Assembly
I ordered this part on a Wednesday and it arrived on the following Saturday. It was exactly what I ordered and took me about 15 minutes to replace the old one. My PC nail gun is working perfect again.
Guest - July 13, 2019
Verified Purchase
★★★★★
★★★★★
The correct part the first time
I have ordered parts from you before and keep returning because the pictures and diagrams help define the part that I don't have a part number for.
Guest - July 23, 2019
Verified Purchase
< Prev
1
2
3
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
This job was so easy, the hardest part was removing the old trigger valve assy. At first I was intimidated by the task at hand, but when you follow the steps below it is simple.
1... remove small roll pin from trigger with a punch pin or use the head of a medium size finnish nail (tapping the point with hammer until pin moves). Ther
... Read moree will be a small plastic o ring , do not destroy this you will need it.
2... remove trigger and set aside with pin and small plastic retaining o ring from step one.
3... tap out the two roll pins that hold the trigger valve assy in place and set asside. My gun had one pin longer than the other.
4... wrap a heavy cloth or small towel around your hand and place it in front of the trigger valve and hook the gun up to the air source.
The valve will pop out fast and hard, so be ready.
Replacement steps...
1... place new trigger valve assy in the gun. Be sure to line up the slots for the roll pins.
2... tap longer roll pin into the thicker part of the gun, and the smaller pin in next. There was no o ring for theese pins.
3... place trigger in gun as it came out, making sure to place wire spring over trigger pin.
4... tap in roll pin through gun trigger and back out through gun.
5... place small plastic o ring on pin.
6... place a couple drops of air tool oil in the air inlet of gun and connect air source. You should be good to go.
It probably took me longer to write these steps than it did to do the job.
Read less
Did you find this story helpful?
Thank you for voting!
Air nail gun stopped working. Leaked air at trigger.
Punch the trigger pin using small punch through grommet this will save grommet for reuse.
Remove trigger and punch the two pins for the trigger assembly out from either side the the shorter pin is on the bottom.
Remove trigger assembly by applying light air to hose fitting and the assembly will pop out quickly. Use a hook to
... Read more pull out remaining housing of assembly that will be left behind. Hook air hose to gun to remove any trash inside gun housing then remove air hose and clean trigger assembly housing with a QTip to remove excess oil or trash. Lubricate trigger assembly O Rings with gun oil or Vaseline and press assembly in with fingers until seated. Install the two roll pins using the punch with short pin on bottom long pin on top. Finally install the trigger back into place using the punch to help line up for the pin to be inserted correctly on the first or second try. Slip the tiny grommet onto pin on the round grooved side of pin hole. Lightly oil gun and works like new again. This took maybe 20 minutes at most from getting the tools to putting them back up. 28$ worth of parts saved from spending 160$ on a new nail gun.
The key to the repair is removing the spiral pins and the small pin (held by rubber washer) on the trigger. The use of a small punch simplifies the repair. Once the 3 pins are removed the trigger assembly pulls out with some pressure. The reassembly is a matter of lining up the pins and trigger assembly and pressing the pins back in pl
... Read moreace.
Ordered a trigger valve after reading reviews of similar complaints. Swapped the trigger valve out in a few minutes with a small pin punch. Worked perfect. Great website for the do it yourself or professional person.
Drive the roll pin out of the nailer used a small screwdriver to pry the trigger assembly applied 3 in 1 oil on the new trigger assembly went in smooth drove the roll pins back in hooked the air up and shot nails perfectly.
Take out roll pins holding trigger and valve assemblies. Use fine long nose pliers to pull out trigger valve assembly and replace.
