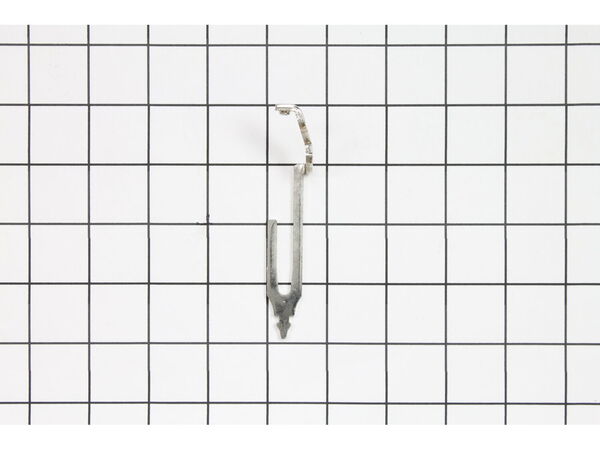

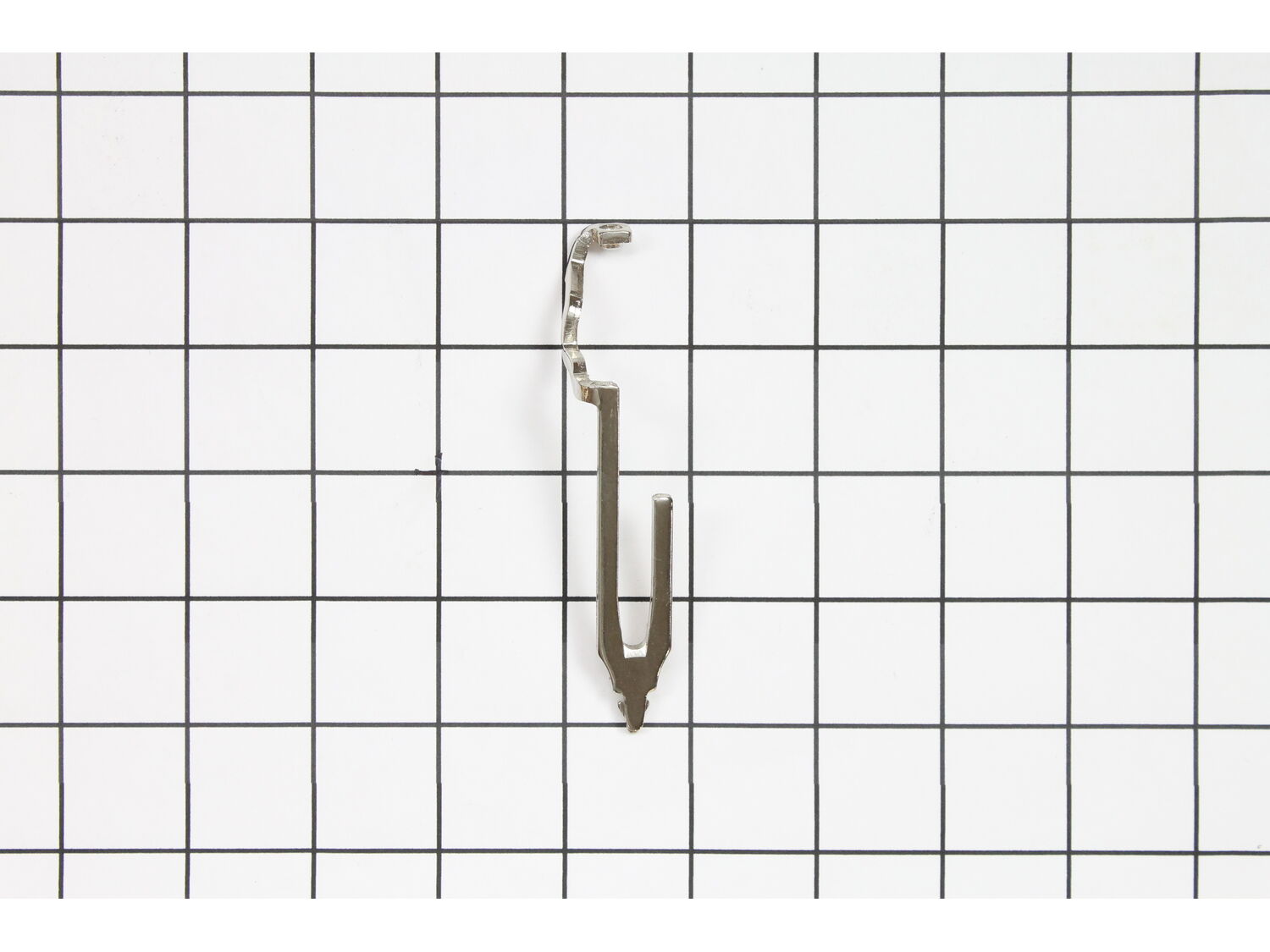

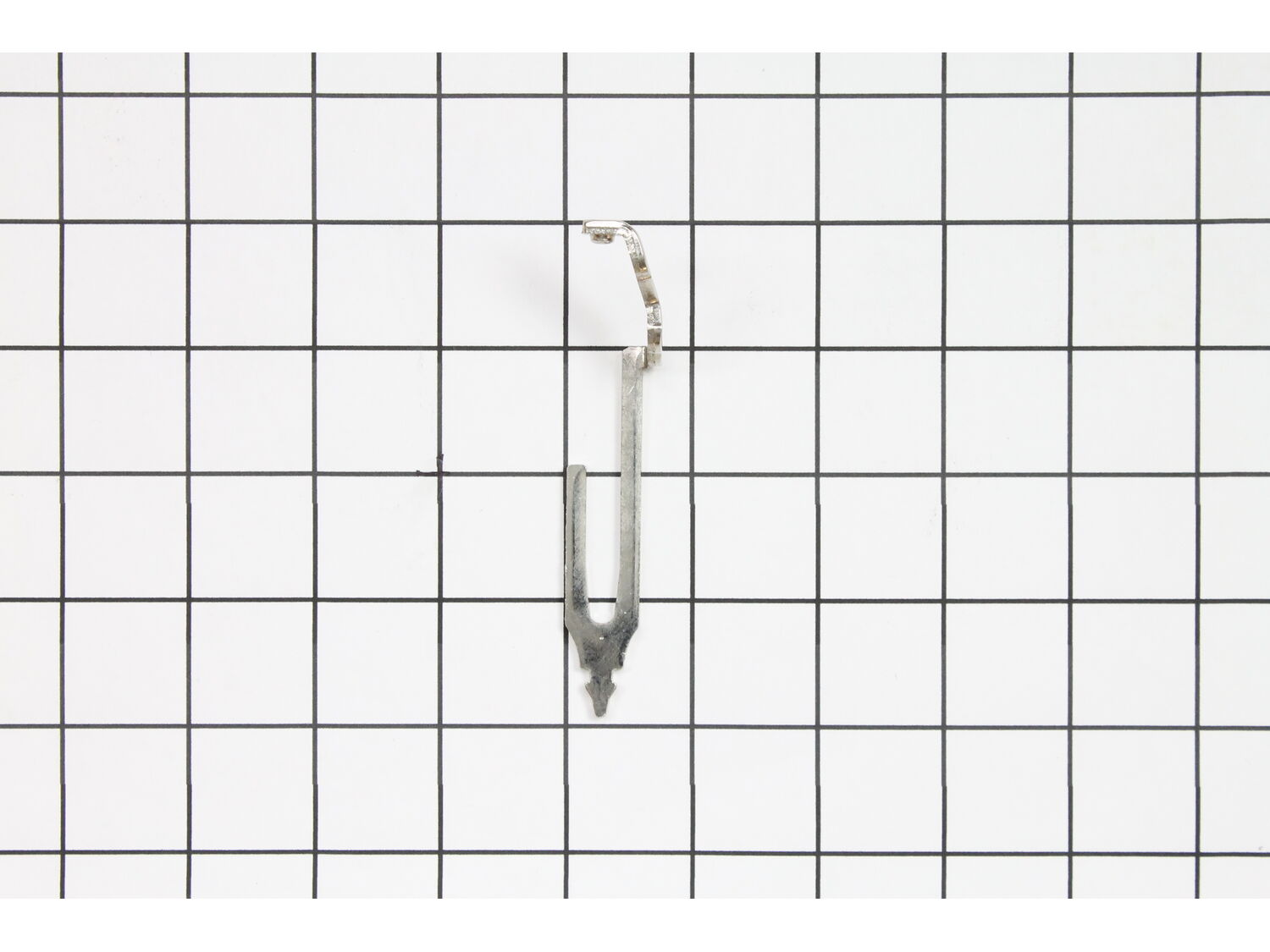

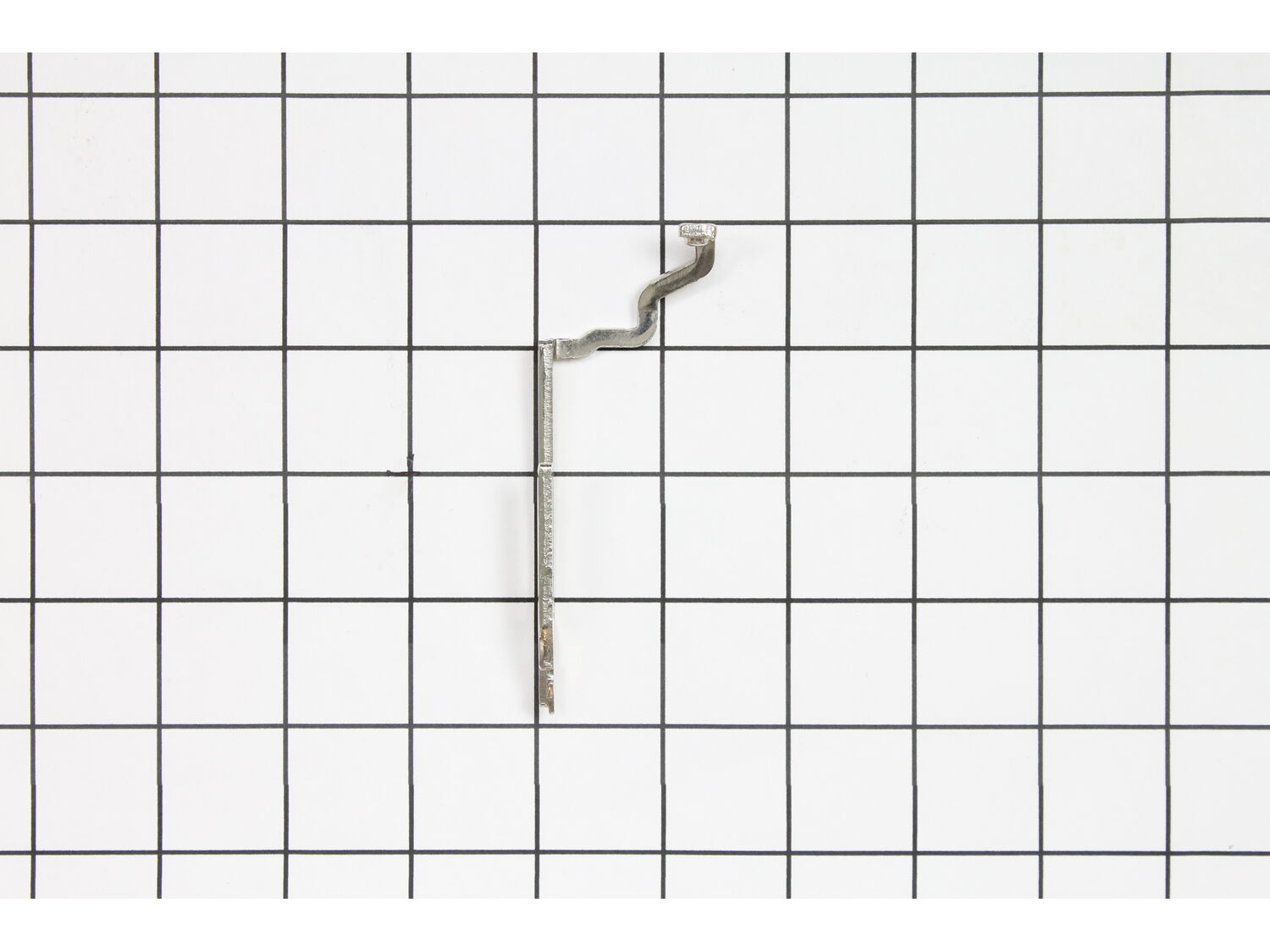

Part Location Diagram of 9R196686 DeWALT TRIP ASSEMBLY
See part 57 in the diagram
( Grid squares measure 1x1 inch )

TRIP ASSEMBLY 9R196686

Manufactured by:
DeWALT
ERP Number:
ERP18990179
Part Number:
9R196686
Original Equipment Manufacturer ?
$8.99
On Order

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • DeWALT
  • Bostitch
This part works with the following products:
  • Nailer
Part# 9R196686 replaces these:
9R196686,

Model Cross Reference

This part works with the following models:
ERP Number: ERP18990179
Manufacturer Part Number: 9R196686
Brand Model Number Description
Bostitch BTFP12233 Nailer - 18ga Brad Nailer Kit 2-1/
DeWALT DWFP12233 Nailer - Pin Nailer
DeWALT DWFP12233R Nailer - Pin Nailer
