Part Location Diagram of N690269 DeWALT DRIVER ASSEMBLY KIT
See part 252 in the diagram

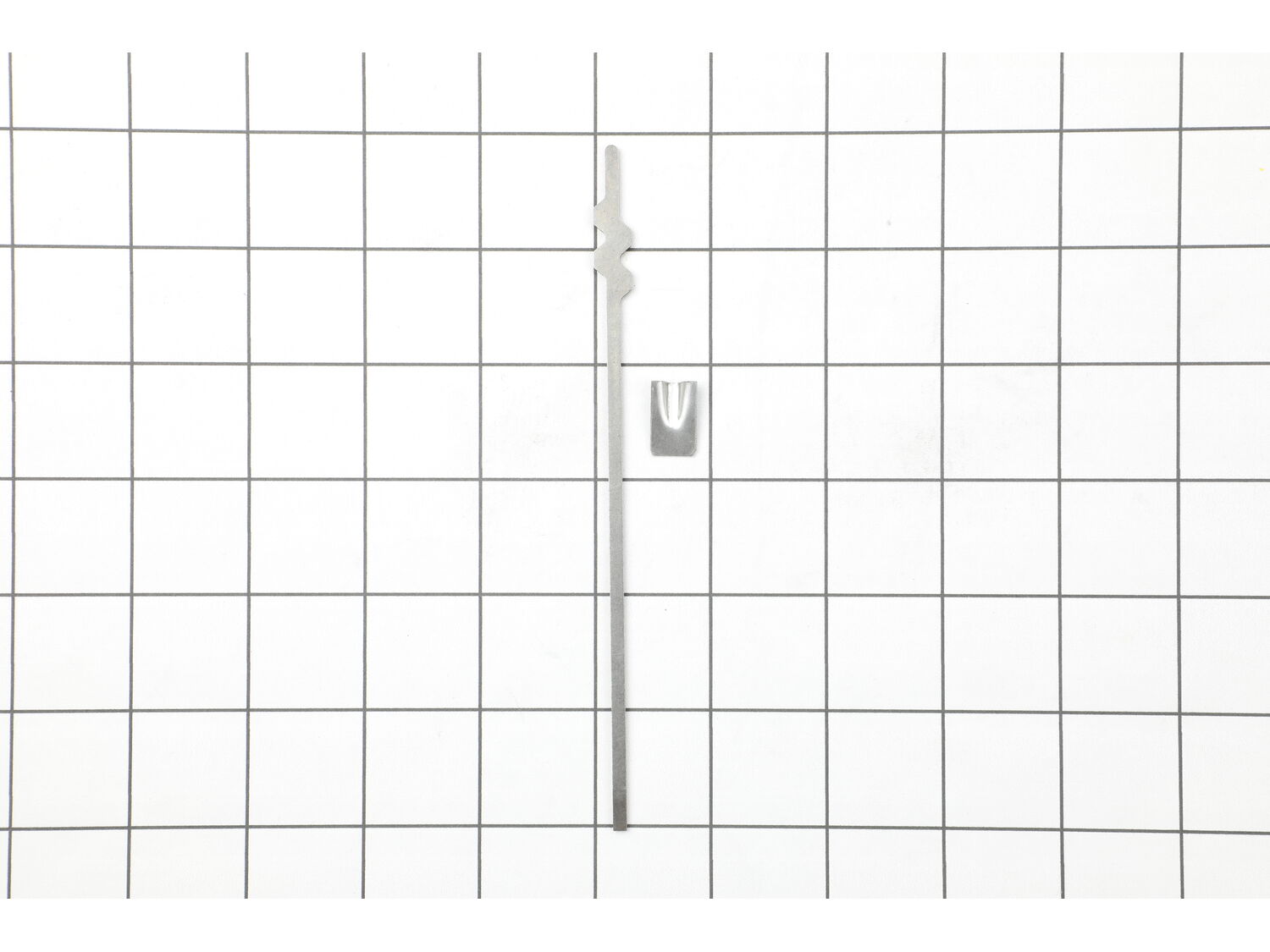

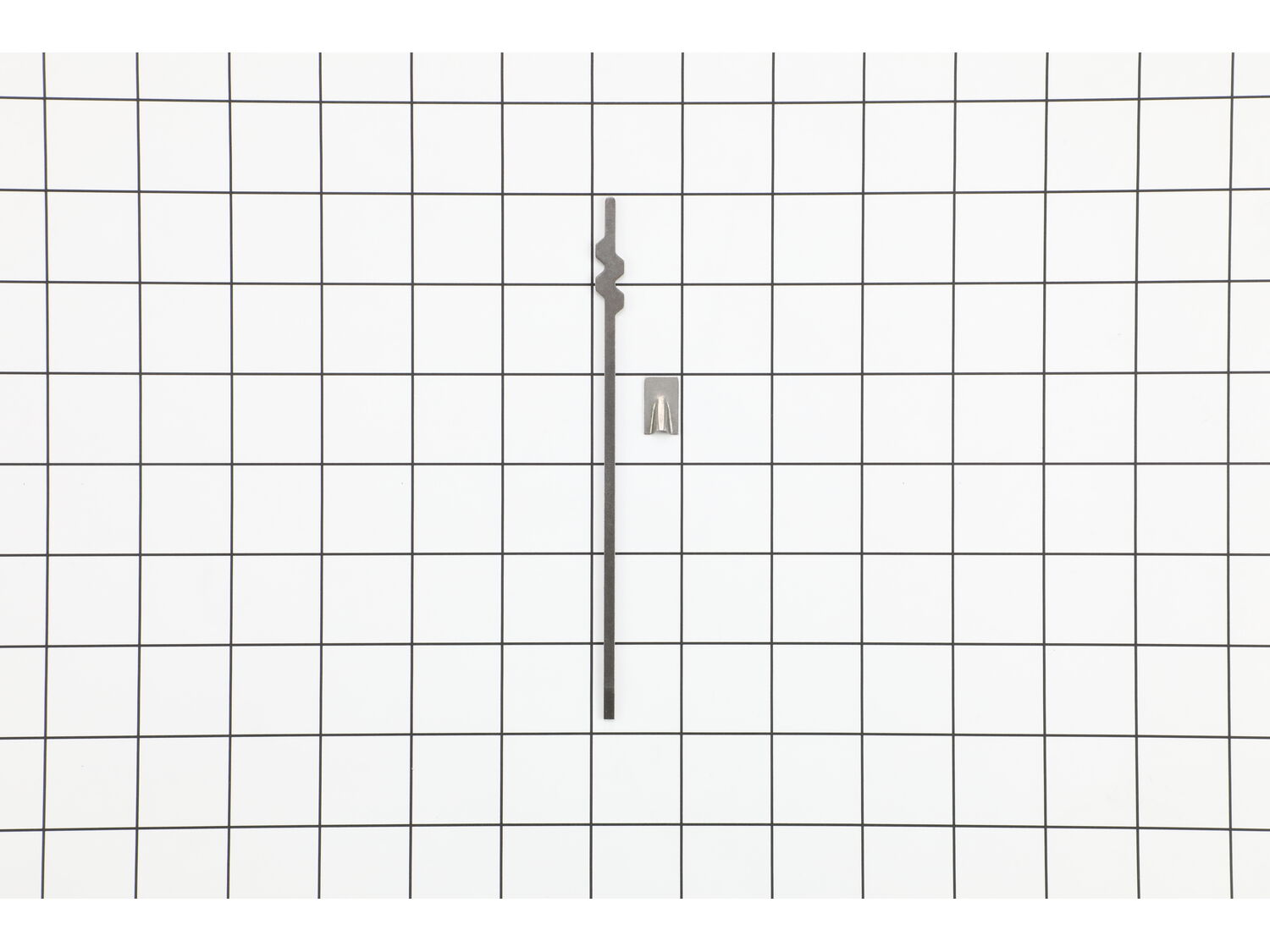

( Grid squares measure 1x1 inch )

DRIVER ASSEMBLY KIT N690269

Manufactured by:
DeWALT
ERP Number:
ERP17787983
Part Number:
N690269
Original Equipment Manufacturer ?
$64.71
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

1- 2 hours

(2 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • DeWALT
This part works with the following products:
  • Nailer

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

1- 2 hours

(2 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Driver blade broke.

Aaron from Nashville, Arkansas

1 person found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Wrench set
Parts Used:
N690269
Took the gun apart until I could get the driver blade out from the back of the gun, took the driver blade and clip out, put new driver blade in the clip/holder, and reinstalled it and put the gun back together.
Did you find this story helpful?
Thank you for voting!

Driver blade replacement

Larry from Florence, Kentucky

0 of 1 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Parts Used:
N690269
Remove nailer carcass and then remove the driver assembly two screws , you will need a star bit screw driver to take carcass apart
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP17787983
Manufacturer Part Number: N690269
Brand Model Number Description
DeWALT DCN660BR Nailer - Cordless Nailer
DeWALT DCN660D1R Nailer - Cordless Nailer
