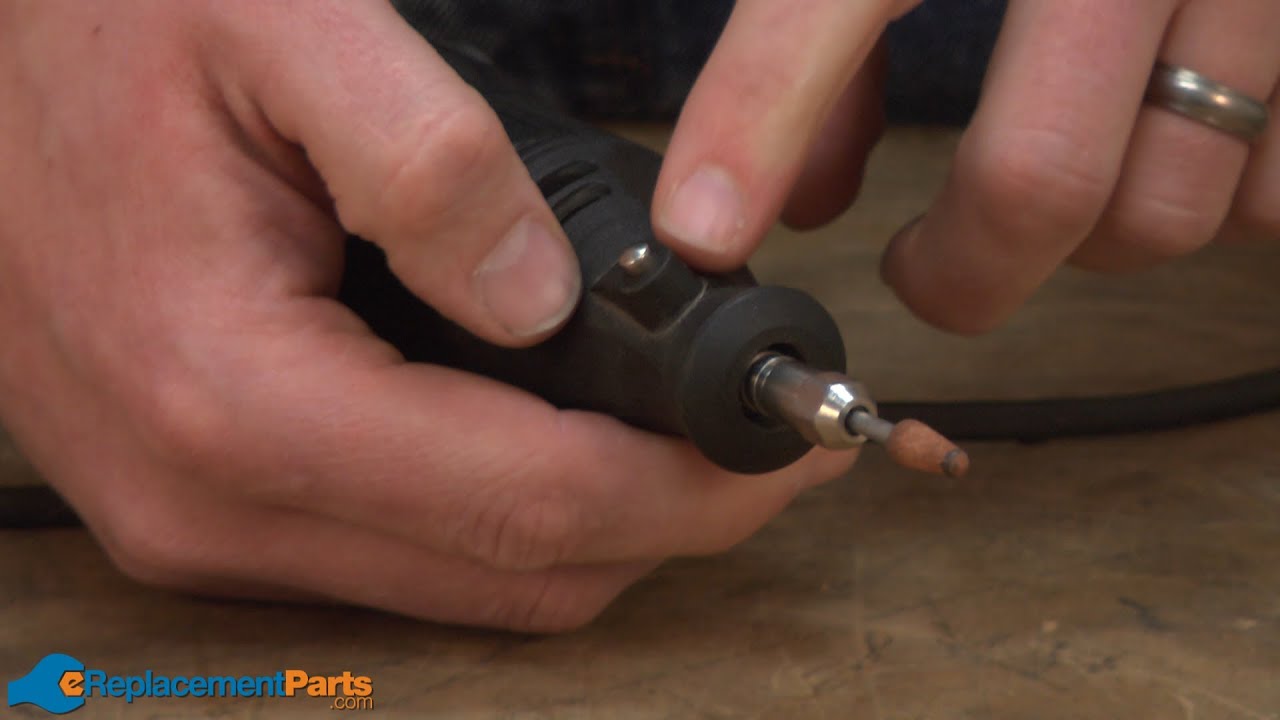

This is the lock pin assembly for various dremel and multi-tool models. The lock pin is a crucial component within power tools, responsible for securing the bits in place during use to prevent any movement. Over time, lock pins can wear down or become damaged, leading to improper engagement or hindering the rotation and functionality of the tool. Replacing a lock pin involves turning off the dremel or multi-tool and removing its motor brushes and housing screws that hold it together. Separate the housing into two halves, take out the motor, and locate the lock pin. Remove the lock pin and its spring, then install the new lock pin and spring. Reinstall the motor, the other half of the housing, along with its screws and bushings.
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.
The locking pins on two of our Dremel tools were worn out
Ann from Plymouth, Iowa
Worn brushes , worn shaft lock and worn brush caps
Gregory from Staten Island , New York
The spindle lock was wore off
gary from Fort Wayne, Indiana
It is a Dremel, the shaft lock was worn out. I replaced it in about 30 minutes.
Joe from Mathiston, Mississippi
Brushes burnt & lock mechanism wore out
Lenard from Jamestown, Missouri
locking mechanism stripped - could not remove tool
Amanda from Carlstadt, New Jersey
Shaft locking assembly not working
Bruce from Northport, Alabama
| Brand | Model Number | Description |
|---|---|---|
| Dremel | 100 | Multi-Tool - (F013001) Series Rotary Tool |
| Dremel | 200 | Multi-Tool - (F013001) Series Rotary Tool |
| Dremel | 200-N | Router - Rotary Tool |
| Dremel | 215 | Multi-Tool - Corded Multi-Tool |
| Dremel | 275 | Multi-Tool - Corded Multi-Tool |
| Dremel | 275SS120 | Router - Tooling |
| Dremel | 275T6 | Multi-Tool - Multipro Multi-Tool |
| Dremel | 277 | Multi-Tool - (F0131CA) Corded Multi-Tool |
| Dremel | 285 | Multi-Tool - (F0130CA) Corded Multi-Tool |
| Dremel | 285T6 | Multi-Tool - Multipro Multi-Tool |
| Dremel | 395 | Multi-Tool - (F013011) Corded Multi-Tool |
| Dremel | 395T6 | Multi-Tool - Multipro Multi-Tool |
| Dremel | 395T6100 | Router - Rotary Tool |
| Dremel | 395T6BARETOOL-VS | Router - Rotary Tool |
| Dremel | 395T6V | Router - Rotary Tool |
| Dremel | 395T6VS | Router - Rotary Tool |
| Dremel | 500395 | Router - Multipurpose Tool |
| Dremel | 500395MTOOL | Router - Multipurpose Tool |
| Craftsman | 572610220 | Multi-Tool - Rotary Tool |
| Craftsman | 572610230 | Multi-Tool - Rotary Tool |
| Craftsman | 572610520 | Multi-Tool - Rotary Tool |
| Craftsman | 572610530 | Multi-Tool - Rotary Tool |
| Craftsman | 572610720 | Multi-Tool - Rotary Tool |
| Craftsman | 572610830 | Multi-Tool - Rotary Tool |
| Craftsman | 572610950 | Multi-Tool - Rotary Tool |
| Craftsman | 572610960 | Multi-Tool - Rotary Tool |
