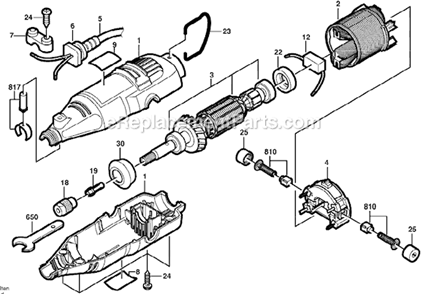

Part Location Diagram of 2615302217 Bosch Tool BRUSH CAP SET
See part 25 in the diagram

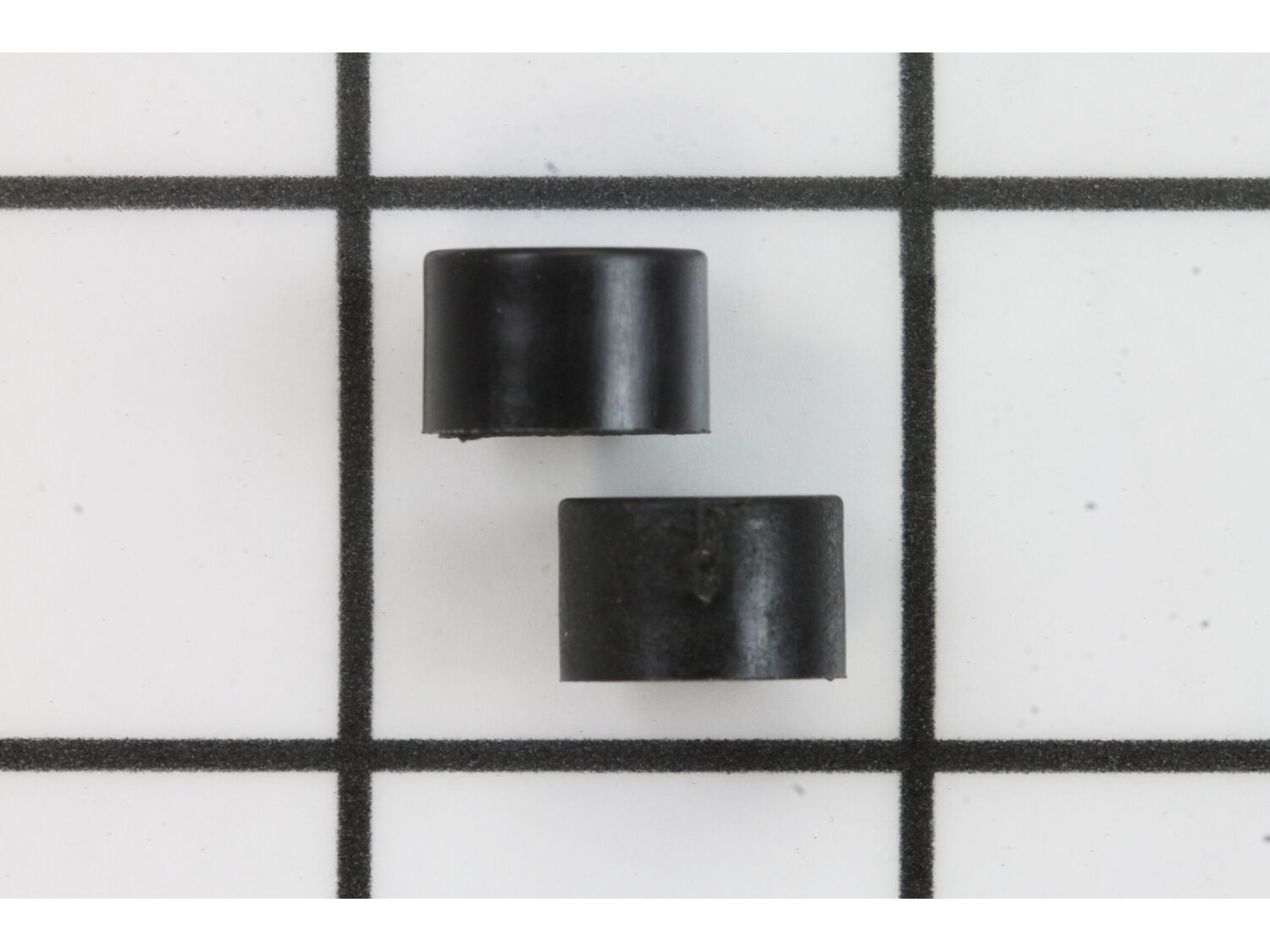

( Grid squares measure 1x1 inch )

BRUSH CAP SET 2615302217

Manufactured by:
Bosch Tool
ERP Number:
ERP19515339
Part Number:
2615302217
Original Equipment Manufacturer ?
  Works with your model  7200!
In Stock
Delivers in 3-5 Business Days!

Easy

Less than 15 mins

(1 rated repair) ?
  Works with your model   7200!

Product Description

?

This is an authentic manufacturer made replacement part which is specially designed for use with Craftsman variable speed rotaries. The caps covers and protects the motor brush on the motor brush holder. This part is made of durable plastic and is sold in a pack of two. For this repair, you will need a pair of needle nose pliers to aid you. Before starting this repair, be sure to unplug the unit from the wall.

Troubleshooting

This part works with the following brands:
  • Bosch
  • Dremel
  • Craftsman
  • Skil
This part works with the following products:
  • Multi-Tool
  • Router
Part# 2615302217 replaces these:
2615302217,

Customer Part Reviews

?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(1 Review)
Click to filter by ratings:
  • 5 stars
    1
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

Less than 15 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Worn brushes , worn shaft lock and worn brush caps

Gregory from Staten Island , New York

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Remove brush caps and brushes . Remove torx screws . Separate case halves . Lift armature , field coil and switch from case . Replace lock and lock spring . Replace armature , field coil and switch to case . Replace case screws . Replace new brushes and new brush caps .
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP19515339
Manufacturer Part Number: 2615302217
Brand Model Number Description
Bosch 0276M Hammer Drill - Rotary Tool
Dremel 0276MTOOL Router - Rotary Tool
Dremel 0396MTVS Router - Rotary Tool
Dremel 275 Multi-Tool - (F013000) Corded Multi-Tool
Dremel 276 Chainsaw - Multipurpose Tool
Dremel 277 Multi-Tool - (F0131CA) Corded Multi-Tool
Dremel 285 Multi-Tool - (F0130CA) Corded Multi-Tool
Dremel 395 Multi-Tool - Corded Multi-Tool
Dremel 396 Chainsaw - Multipurpose Tool
Dremel 500395 Router - Multipurpose Tool
Dremel 500395MTOOL Router - Multipurpose Tool
Craftsman 572610031 Multi-Tool - Variable Speed Rotary
Craftsman 572610220 Multi-Tool - Rotary Tool
Craftsman 572610230 Multi-Tool - Rotary Tool
Craftsman 572610520 Multi-Tool - Rotary Tool
Craftsman 572610530 Multi-Tool - Rotary Tool
Craftsman 572610720 Multi-Tool - Rotary Tool
Craftsman 572610830 Multi-Tool - Rotary Tool
Craftsman 572610950 Multi-Tool - Rotary Tool
Craftsman 572610960 Multi-Tool - Rotary Tool
Skil 7200 Sander Polisher - TYPE 1 (F01200) Corner Sander
Bosch MISC Miscellaneous - Misc
