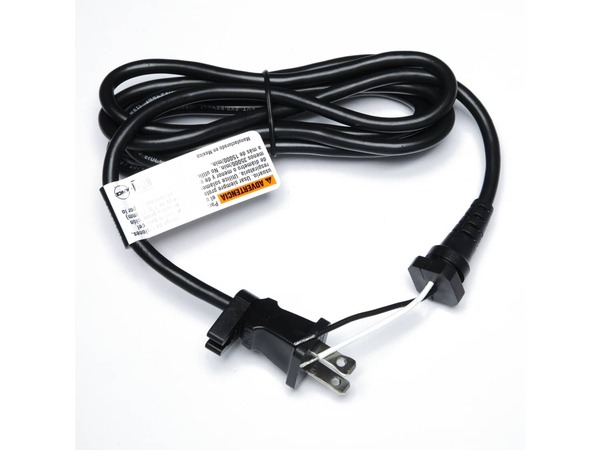

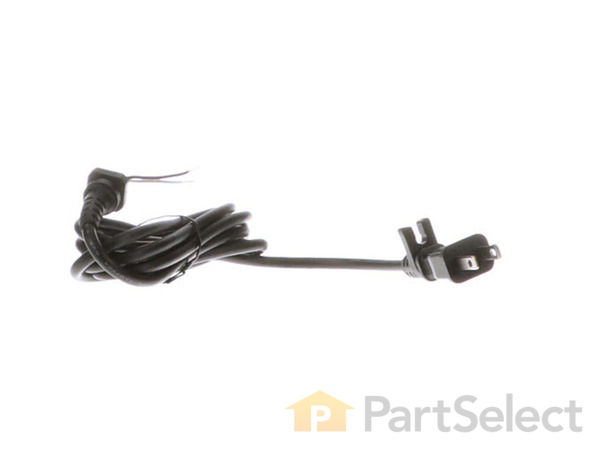

This replacement power cord is supplied form original equipment manufacturer. It is specially made for Dremel rotary multi-tools. I plays a key role by delivering the electricity from the outlet to the tool. This cord is rubber insulated and it is sold individually. It does include a rubber grommet/sleeve. To complete this repair you would need a screwdriver. • Remove housing screws • Remove the housing • Disconnect wires from the old cord • Remove old cord • Secure the new power cord in place • Reattach wires • Reassemble and test the unit
Troubleshooting
This part works with the following brands:
Bosch
Dremel
Craftsman
This part works with the following products:
Multi-Tool
Router
Part# 2615294041 replaces these:
2615294041,
★
Customer Part Reviews
?
4.9
Average Rating (out of 5):
★★★★★
★★★★★
(13 Reviews)
Click to filter by ratings:
5 stars
12
4 stars
1
3 stars
0
2 stars
0
1 star
0
< Prev
1
2
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Very good
Fast shipping, great part to replace a 20 year old cord, very easy. Much better than the original hard cracking cord
Guest - February 4, 2020
Verified Purchase
★★★★★
★★★★★
Good fit easy repair
Exactly the same
Guest - March 10, 2020
Verified Purchase
★★★★★
★★★★★
I have purchased many parts and always received the exact part I needed and would highly recommend ereplacementparts.com
Part came quickly, fit perfectly, was a breeze to install.
Guest - March 28, 2020
Verified Purchase
★★★★★
★★★★★
Power Cord
Looks like oem part.
Guest - June 16, 2020
Verified Purchase
★★★★★
★★★★★
Dremel replacement cord
perfect!
Guest - May 8, 2021
Verified Purchase
★★★★★
★★★★★
Power Needed
Perfect and easy replacement part with great pricing. Will continue to do business with this company. (Fast shipper).
Guest - August 10, 2021
Verified Purchase
★★★★★
★★★★★
Power supply cord for dremel
CS: This cord is a prefect matchup and easy to install.
Guest - October 26, 2022
Verified Purchase
★★★★★
★★★★★
Exactly what I needed
My prior power cord got destroyed by a mouse so I thought I would take a chance at trying to replace it. It was straightforward and this was exactly what I needed. Within a half hour I had everything apart, back together and working.
Kristine - October 31, 2023
Verified Purchase
★★★★★
★★★★★
Just right
Came on time, part was the right one and my Drexel is like new!
Susan - May 3, 2019
Verified Purchase
★★★★★
★★★★★
Fast shipping; perfect replacement
This replacement cord arrived quickly and is of high quality. Installation was easy. Thanks!
Guest - May 30, 2019
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Clean the outside of the dermel tool.
Remove screws and collet collar.
Separate cover halves.
Remove bad a/c cord, take notice as to the location of the white and black wires.
Install new a/c cord replacing the white and black wires in the correct position.
Replace the covers and install screws and collet co
... Read morever.
Removed chuck adjustment nut from tool and plastic threaded bushing from spindle end of tool. Removed the brushes.
Then removed 4 screws holding case together. Split and removed top half of case. Used small flat tip screw driver to release cord leads from tool. Removed old cord then installed new. Put case back together then install
... Read moreed new brushes.
1. Unscrew and Remove brush/spring covers on both sides.
2. Remove and set aside brush&springs from both sides noting orientation of brushes.
3. Twist off and set aside collet nut (<<4. Twist off and set aside plastic top cover.
5. Gently pry apart back cover (same side with Torx screws) using f
... Read morelathead screw driver.
6. Note location of B&W wires and holes they go into on Electronic Speed Switch.
7. Gently pull B&W wires out of Electronic Speed Switch with needle nose pliers.
8. Align replacement power cord inside housing.
9. Reattach B&W wires to Electronic Speed Switch.
10. Reassemble covers, brush&springs, etc...
- Opened up the case
- Removed brushes
- Removed armature
- Removed old lock
- Removed old power cord (I had damaged it as part of an earlier project)
- Install new powercord
- Install lock
- Install armature
- Installed the brushes and here is an easy part to screw up. The brushes have a
... Read morecontour to them. Match the contour to where they will contact the armature. If you don\'t they will bind the assembly and it won\'t spin freely.
- Reinstall the case making sure to put the wires into the slots to the case doesn\'t cut the wires
- Check that the shaft spins freely.
- Plug in and test
I followed the directions sent with the new power cord and when I finished installing new power cord, I plugged it in and it started. I was real happy.
The tool needed to be opened and then the old cord came out just fine. It took three tries to get the new cord installed. First two times the tool refused to spin. Tool was quite old; wires did not attach well enough on the first couple of tries.
replaced the brushes and brush cover doors, plus replaced the power cord which had cracked.
Repair was easy enough thanks to ereplacement parts having the exact matching parts. Couldn\'t find procedure to release power cord wires, so cut and soldered new cord with shrink on the wires. Didn\'t take long and runs like new.
removed old power cord after checking with a ohm meter,showed a dead short,keept blowing the breaker in the breaker box. replaced new power cord and now runs again like new..
