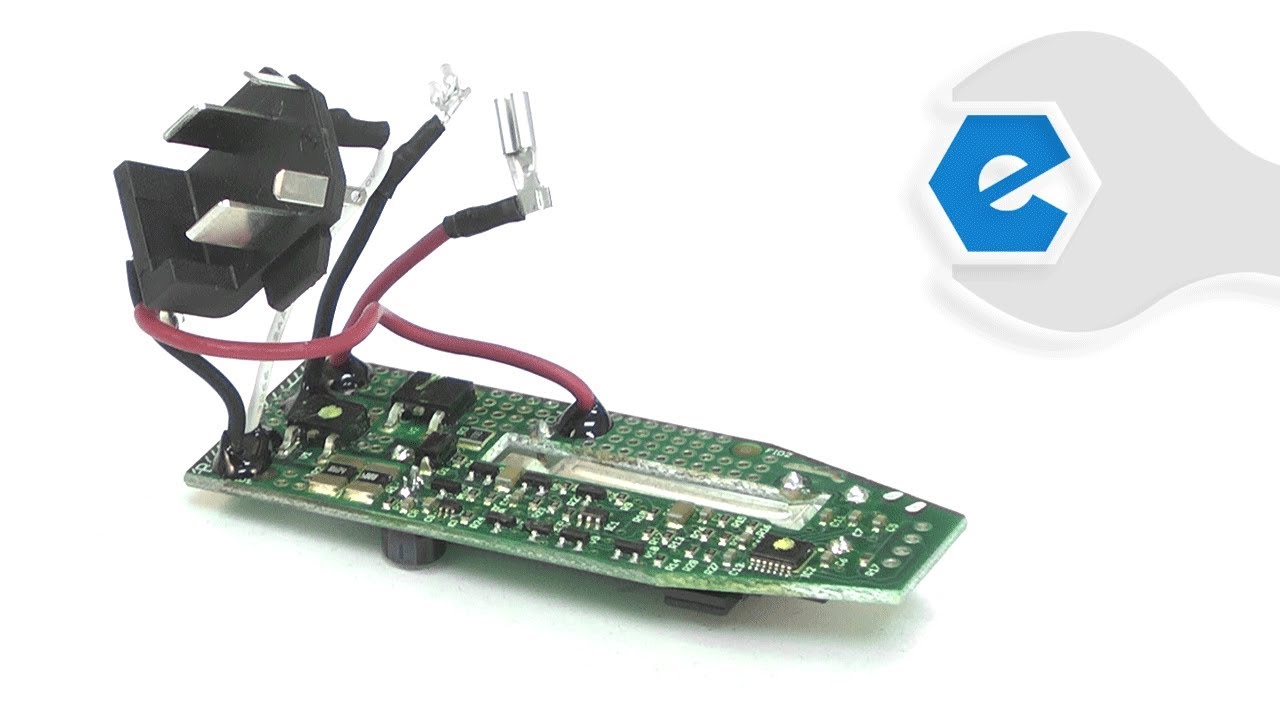

This part is available as an individual replacement. The electronic assembly attaches to the battery pack. A set of pliers and a screwdriver may be needed during the replacement of this item. It is made of durable materials and will need to be replaced if it breaks. This is an OEM part sourced directly from the manufacturer and used in Dremel multi-tools.
Troubleshooting
This part works with the following brands:
Bosch
Dremel
This part works with the following products:
Multi-Tool
Router
Videos For installing this part.
?
★
Customer Part Reviews
?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(3 Reviews)
Click to filter by ratings:
5 stars
3
4 stars
0
3 stars
0
2 stars
0
1 star
0
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Was the right part
It was the right part and came in a timely fashion. That is all I could ask for
Guest - June 10, 2019
Verified Purchase
★★★★★
★★★★★
Great part made the repair easy
The part was just as expected. It fit easily and works great. Arrived very quick.
Glenn - February 12, 2021
Verified Purchase
★★★★★
★★★★★
Easy peasy
My dremel is good as new. Video was clear and easy to follow
Guest - September 17, 2022
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Opened case halves. (Rotor lock button and spring and or the speed control slider may fall out if not careful. If they do, not problem, as it is pretty obvious how they go back in.
2. Un-plug positive and negative leads (remember which is which) from motor and remove old speed control board and battery contactor assy. (They jus
... Read moret slide out)
3. Installed new board and battery contactor assy and re-connected motor leads.
4. Put case halves back together, being careful to not have any of the wires pinched between the posts that meet together when the case halves are joined. Also make sure the slide switch engages the slide potentiometer and make sure the rotor lock button and spring are put back.
For the advanced technician: Replace the shorted Power Fet(s) on the motor control board for next time that you may need this board again.
Read less
Did you find this story helpful?
Thank you for voting!
The dremel 8100 that we have stopped working, and we bought a new controller board
1)Remove the large spindle nose nut.
2)Remove battery pack.
3)Remove clip on battery end with blade screwdriver.
4)Remove five Phillips screws to carefully split body in half.
(Note the position of the components in the body that follows.)
5)Remove spring loaded spindle lock.
6)Pull leads of circuit bo
... Read moreard off battery.
7)Remove circuit board assembly.
8)Install new circuit board assembly carefully tucking wires to facilitate closing body halves.
9)Reverse remaining steps for full assembly.
10) Enjoy
The diagram on your site is very useful finding the problem with symptoms that is happening with the dremel tool shows which part number and cost too. Thank goodness that I found your website
Thank you
Lou.
