Part Location Diagram of 451036-6 Makita Sleeve 17
See part 149 in the diagram

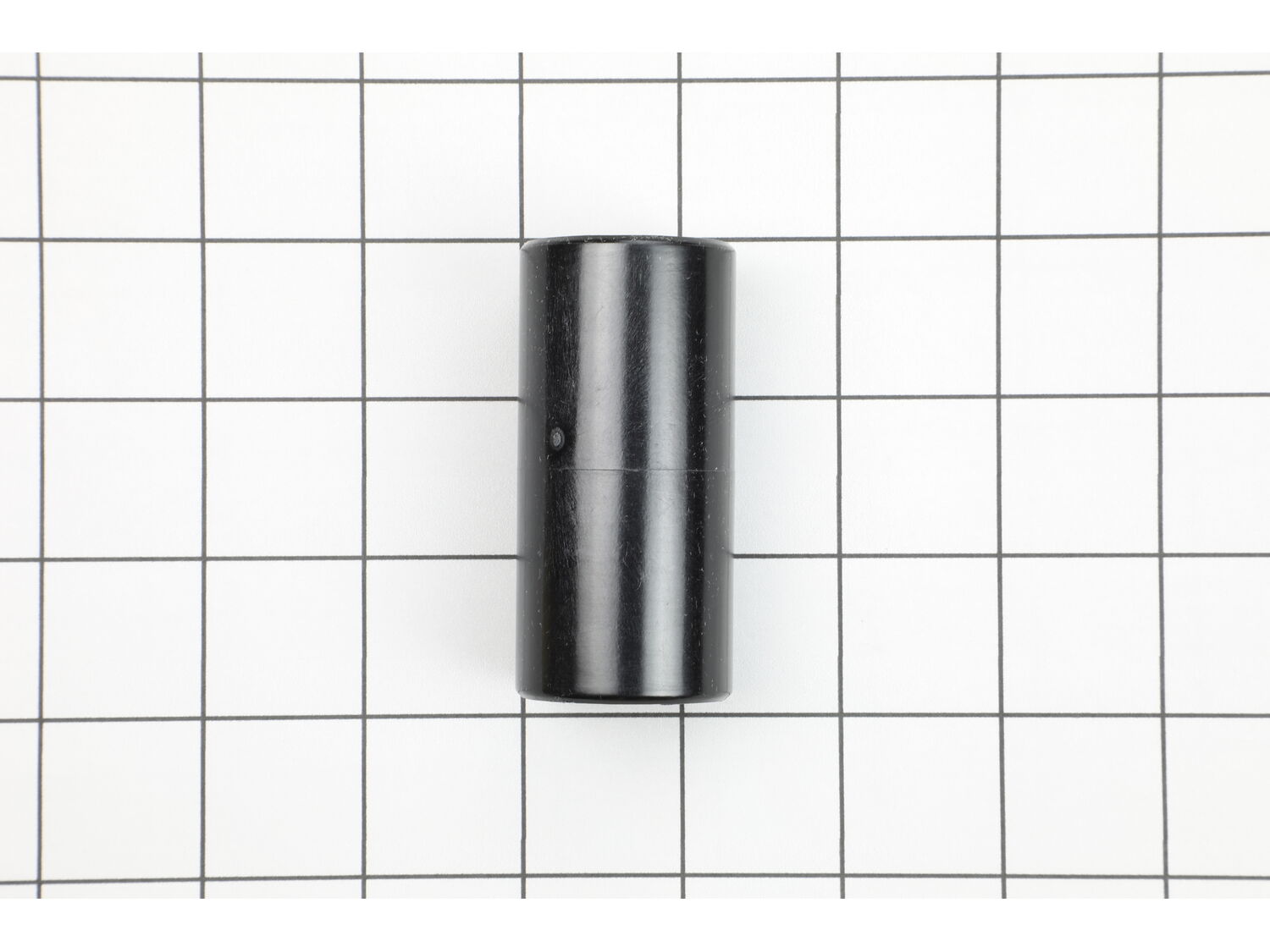

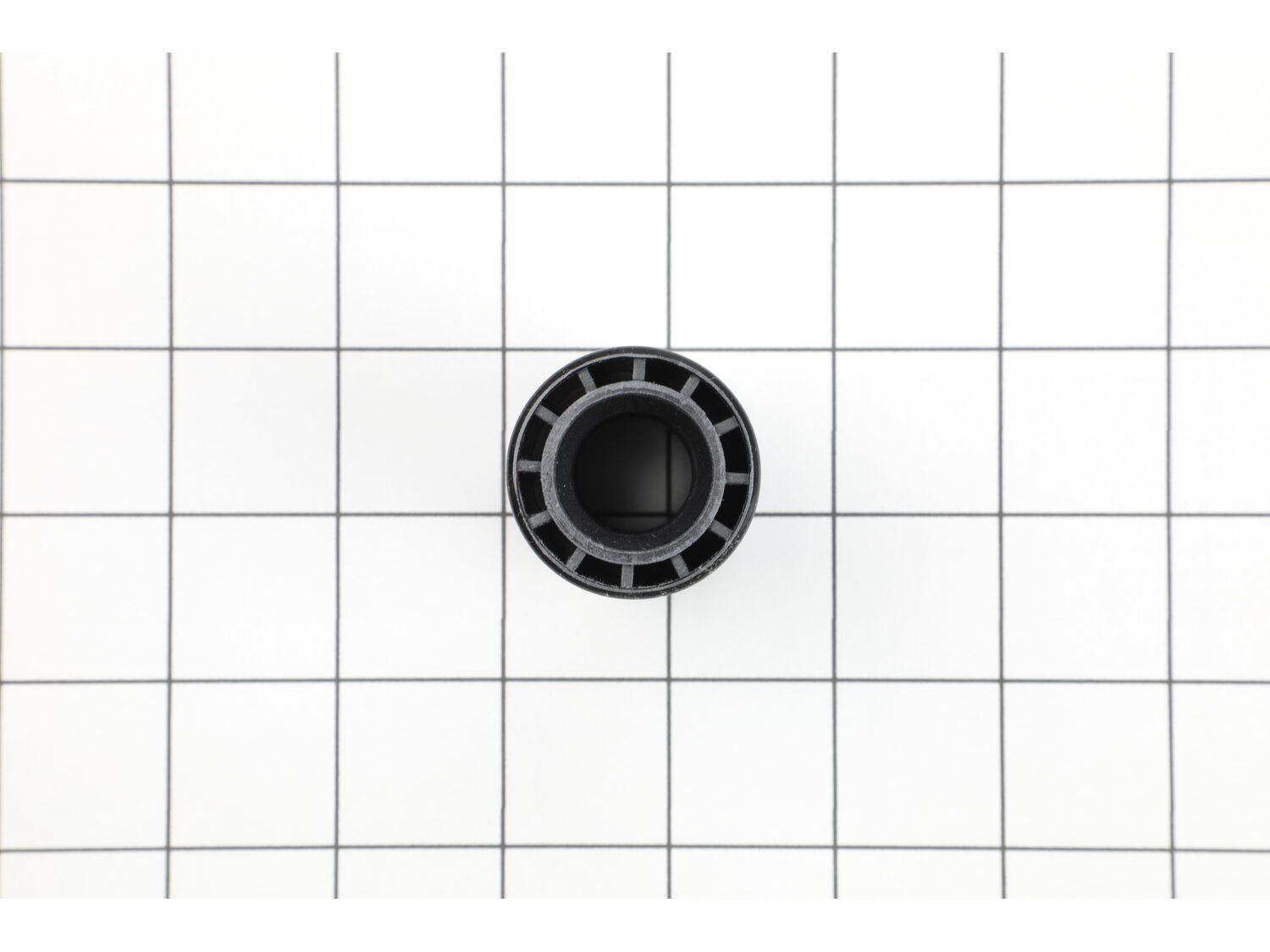

( Grid squares measure 1x1 inch )

Sleeve 17 451036-6

Manufactured by:
Makita
ERP Number:
ERP10151734
Part Number:
451036-6
Original Equipment Manufacturer ?
$6.16
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

30 - 60 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Frequently Purchased Together

?

Troubleshooting

This part works with the following brands:
  • Makita
This part works with the following products:
  • Miter Saw
  • Saw

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

30 - 60 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Torsion spring on Makita miter saw was fatigued and needed to be replaced.

Roger from Bozeman, Montana

2 of 2 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set
Disassemble blade guard
Remove power head from saw
Replace spring, sleeve and pin
Reassemble blade guard
Calibrate and adjust saw to specs
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP10151734
Manufacturer Part Number: 451036-6
Brand Model Number Description
Makita LS1016 Miter Saw - Dual Bevel Slide Compound Miter Saw
Makita LS1016L Miter Saw - 10&#34 Dual Slide Compound Miter Saw
Makita LS1016LX Miter Saw - 10&#34 Dual Slide Compound Miter Saw
Makita LS1016LX5 Miter Saw - 10" Dual Slide Compound Miter Saw with Laser and Stand
Makita LS1016X Saw - Saw
