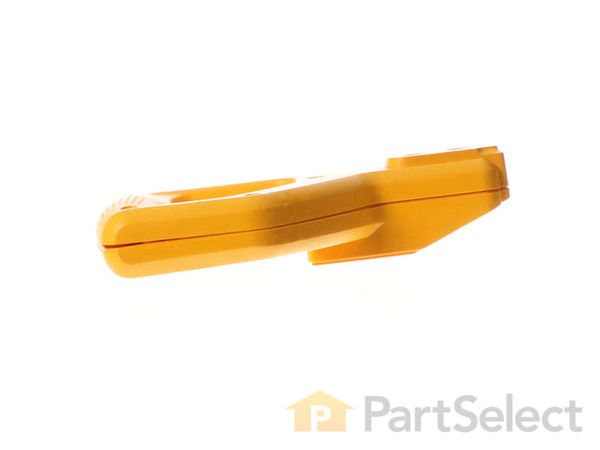

This operating handle assembly is an authentic Dewalt replacement part. It is specially manufactured for use on miter saws. It provides user with a stable grip of a saw allowing for safe operation. This is a yellow plastic handle that is sold individually. Please note, it does not include the hardware to secure it, screws that hold the handle to the frame are sold separately. To complete this repair job you should only need a screwdriver. • Make sure there is now power going to the equipment • Remove screws that secure the old handle • Remove old handle • Secure the new handle using the screws
Troubleshooting
This part works with the following brands:
DeWALT
This part works with the following products:
Miter Saw
★
Customer Part Reviews
?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(9 Reviews)
Click to filter by ratings:
5 stars
9
4 stars
0
3 stars
0
2 stars
0
1 star
0
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Works great.
The part fit up perfectly and works like new
Guest - December 2, 2019
Verified Purchase
★★★★★
★★★★★
Dewalt Repair
Excellent and prompt service. Great communications
Guest - April 27, 2020
Verified Purchase
★★★★★
★★★★★
Prompt service
Arrived quickly, easy to install
Pete - April 8, 2021
Verified Purchase
★★★★★
★★★★★
great place good sevice
great place good sevice
Guest - June 8, 2021
Verified Purchase
★★★★★
★★★★★
Perfect fit
This Orem OEM part was a perfect fit. The price was reasonable and the delivery was quick.
Guest - February 16, 2022
Verified Purchase
★★★★★
★★★★★
Dewalt Miter Box Handle Replacement
How Sweet It Is... To have my favorite tool back in business. 1 week delivery, perfect fit, 20 minute repair. Thank you, Thank you, Thank you!
Guest - February 22, 2022
Verified Purchase
★★★★★
★★★★★
DeWalt handle assemby
The handle was a perfect fit for my DW706 12" chop saw. It arrived just as described and in a reasonably quick time frame. Now I can put the big dog back to work. I will definitely use you again for replacement parts.
Daniel - April 12, 2022
Verified Purchase
★★★★★
★★★★★
Exact replacement parr
Shipment arrived promptly and in excellent condition. After installation my device operated as if it was brand new.
Guest - April 22, 2022
Verified Purchase
★★★★★
★★★★★
saw handle
The part was easy to locate in the parts list and it fit perfect. Thank you.
Guest - June 20, 2022
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed the screws that were connecting the handle to the saw. Then removed the internal parts of the old handle. And reversed the tear down procedure.
Did you find this story helpful?
Thank you for voting!
Kerf plate endured 10 yrs of use, saw slid off bench in vehicle cargo area which broke the handle, bearing noise from normal use signaled problems
1) Kerf plate
2) Handle replacement, not a problem, just note where wires run.
3) Bearing replacement - ouch. Could have gone really well, however, the screw that held the belt pulley broke in the armature spindle. Recommend using a hand driver or ratchet rather than an impact driver because you\'ll likely figure out th
... Read moreat heat or some sort of penetrating oil is required before you break off the pulley screw. The general steps of this repair are not difficult if you have a bearing puller and a press - provided you have more patience than I did.
First remove all screws on top of Operating Handle & Lifting Handle. Once the handles are able to be removed from the saw you will have access to the interior of the operating handle where you can find the trigger switch, etc. Next remove the brush inspection cap to access the brushes. There will be a small spring/tab that holds either br
... Read moreush in place. Move those to either side to allow for extraction of the brushes. I would also recommend taking this time to remove the commutator housing the rest of the way, and clean the carbon off from the previous brushes. This can be done with a little contact cleaner, or any other electrical engine safe cleaner, and 600 - 1000 grit sand paper. Replace the commutator housing, ensure the new brushes are installed, and making good contact with the commutator and replace the inspection cap. Finally, to replace the power cord, with the handle assembly still taken apart remove the terminals from the trigger switch with a screwdriver, and discard the previous incoming power cord. Strip the new cord so that copper is visible, and reattach a new set of terminals to the bare copper. Reattach to the trigger switch using the screw. Replace the pre-existing handle assembly with the new one and replace all screws. New brushes will spark in excess until worn, but make sure new brushes are seating properly, and making good contact with commutator for best performance.
Removed one torx screw from carry handle
Removed all torx screws from existing broken control handle
Removed cracked handle
Removed wiring without disturbing wire layout
Installed bottom half of handle assembly
Placed wires back in track
Installed top half of handle
Reinstalled and secured all
... Read more torx screws
Reinstalled carry handle
Removed the screws, removed the broken handle and reassembled.
Did you find this story helpful?
Thank you for voting!
