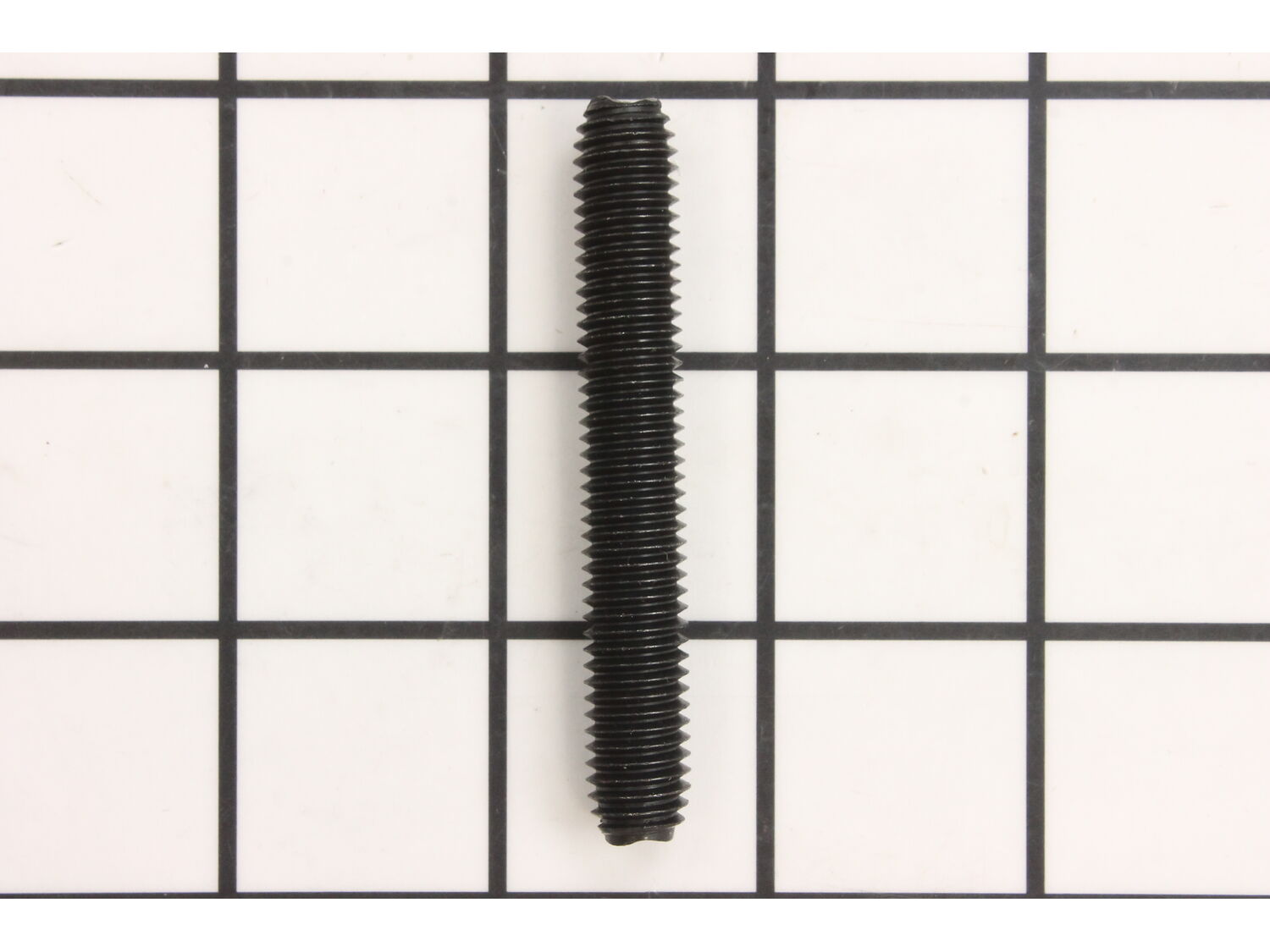

Stud 146760-02

Manufactured by:
DeWALT
ERP Number:
ERP10166139
Part Number:
146760-02
Original Equipment Manufacturer ?
$6.16
In Stock
Delivers in 3-5 Business Days!

Easy

Less than 15 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Frequently Purchased Together Troubleshooting Repair Instructions Model Cross Reference

Frequently Purchased Together

?
Bevel Handle
$17.28
In Stock
Washer
$6.16
In Stock
Minimum Quantity of 2 required

Troubleshooting

This part works with the following brands:
  • DeWALT
This part works with the following products:
  • Miter Saw

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

Less than 15 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Stud 146760-02 was damaged during disassembly for long distance relocation

Earl from Lady Lake, Florida

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Parts Used:
146760-02
1. Removed old stud with locking pliers
2. Cleaned out threaded hole
3. Put thread lock on one end of new stud and inserted into aluminum saw base
4. Installed top saw housing and tighten down locating screw
5. Installed handle on other end of stud
6. Hand tightened until handle seated firmly against rest in saw blade housing
Read less
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP10166139
Manufacturer Part Number: 146760-02
Brand Model Number Description
DeWALT DHS716 Miter Saw - 120vmax Corded/Cordless Miter Saw
DeWALT DHS716AB Miter Saw - 120v Fixed Miter Saw
DeWALT DHS716AT2 Miter Saw - 120v Brsls 12in Dual
DeWALT DHS716T2 Miter Saw - 120vmax Corded/Cordless Miter Saw
DeWALT DHS790 Miter Saw - 120vmax Corded/Cordless Miter Saw
DeWALT DHS790AB Miter Saw - 120v Cord/Crdlss Mit
DeWALT DHS790AT2 Miter Saw - Brshls 120v 12-In Mi
DeWALT DHS790T2 Miter Saw - 120v 12in Brshls Sl
DeWALT DW703 Miter Saw - 10 Inch Compound Miter Saw
DeWALT DW703-B2 Miter Saw - 10 Compound Mitre Saw
DeWALT DW703-B3 Miter Saw - 10 Compound Mitre Saw
DeWALT DW703-BR Miter Saw - 10 Miter Saw
DeWALT DW706 Miter Saw - 12 Dual Bevel Miter Saw
DeWALT DW713 Miter Saw - Mitre Saw
DeWALT DW713-AR Miter Saw - 10 Miter Saw
DeWALT DW713-B2 Miter Saw - 10 Miter Saw
DeWALT DW713-B3 Miter Saw - 10 Miter Saw
DeWALT DW713-BR Miter Saw - 10 Miter Saw
DeWALT DW715 Miter Saw - Miter Saw
DeWALT DW715-AR Miter Saw - 12 Miter Saw
DeWALT DW715-B2 Miter Saw - 12 Miter Saw
DeWALT DW715-B2C Miter Saw - 12 Miter Saw
DeWALT DW715-B3 Miter Saw - 12 Miter Saw
DeWALT DW715-BR Miter Saw - 12 Miter Saw
DeWALT DW716 Miter Saw - Miter Saw
DeWALT DW716XPS Miter Saw - Dw716 With Xps
DeWALT DWS709 Miter Saw - 12in Bevel Miter Saw
DeWALT DWS779 Saw - 12in Doubl Bevel Saw
DeWALT DWS780 Miter Saw - 12in Compound Miter Saw
DeWALT DWS780-AR Miter Saw - 12in Compound Miter Saw
Stud
$ 6.16
In Stock
✖
Stock Status
✖
Mail-In Recycling Rebate

Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

✖
