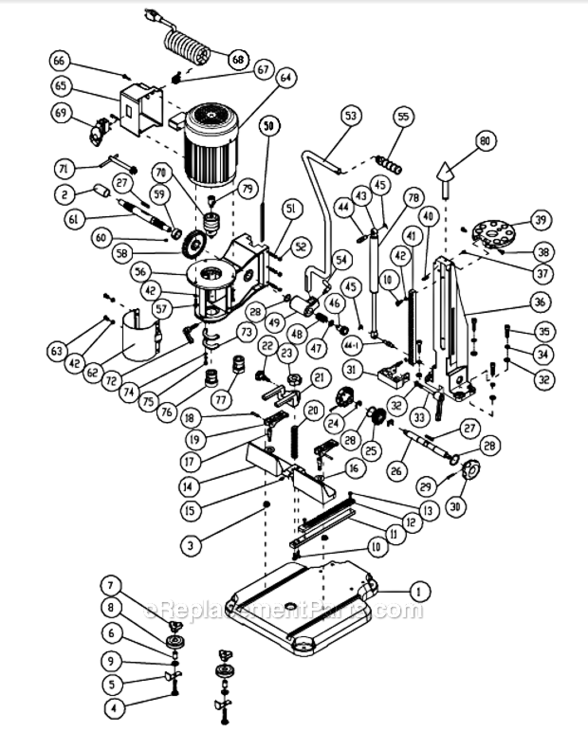

This is an authentic replacement part manufactured for use with woodworking power tools. The hex socket head screw has multiple applications across a variety of tools. This socket head screw is sold individually, please see model diagram for part location and usage.
Remove throat plate.
Remove blade.
Remove table mount knobs and tilt table.
Loosen bearing guide, eccentric shaft lock bolt , using Allen wrench.
Push broken shaft out of bracket from back of machine. I used a pc of wood.
Install new eccentric shaft with bearings installed and retained by Socket Head Ca
... Read morep Screw.
Tighten bearing guide eccentric shaft lock bolt .
Replace table and mount knobs.
Install blade and throat plate.
Adjust saw per manufacturers recommendations.
Read less
