Part Location Diagram of DE96-01136B Samsung Wire Harness Assembly
See part 12-16-1 in the diagram
( Grid squares measure 1x1 inch )

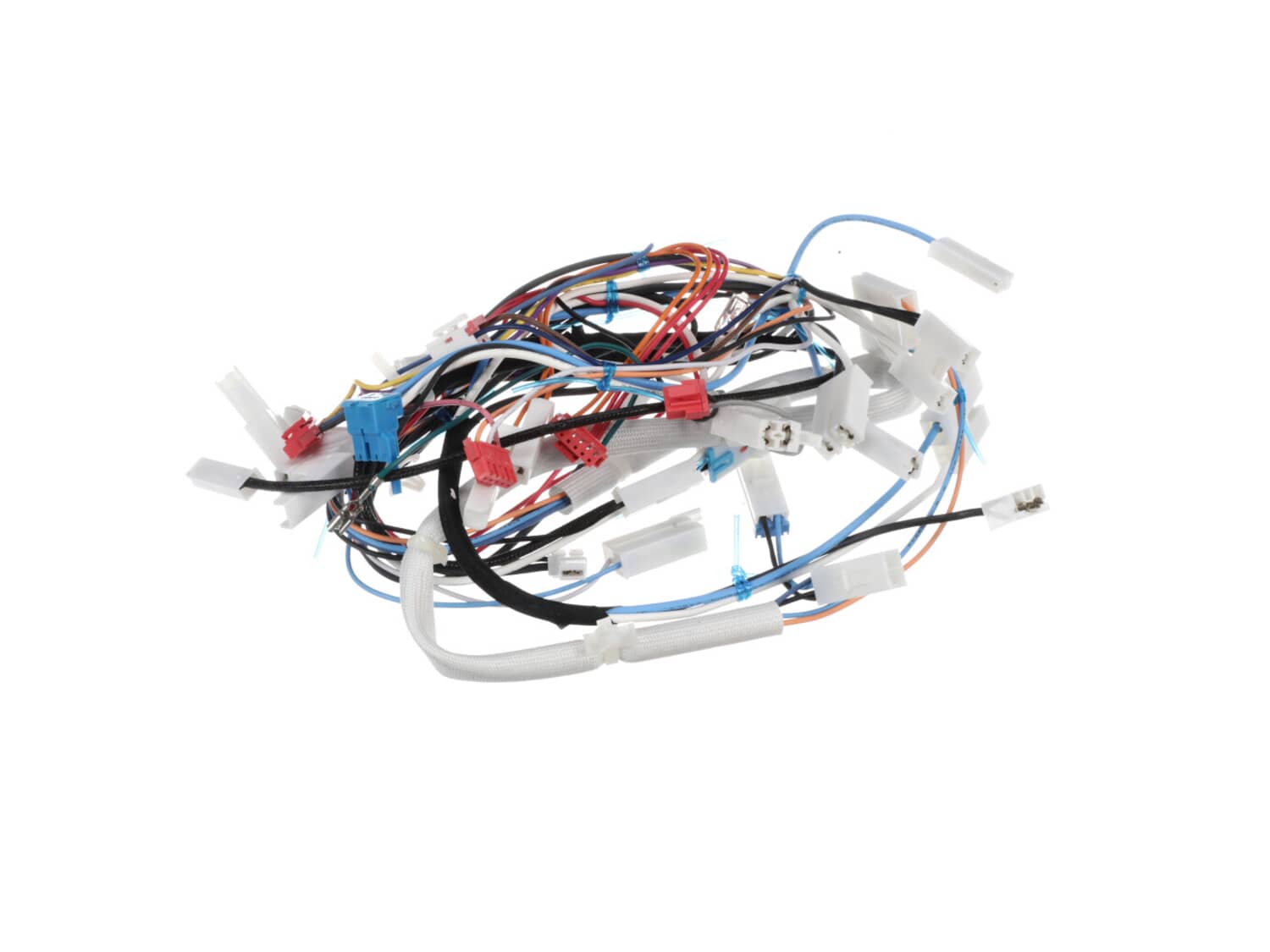

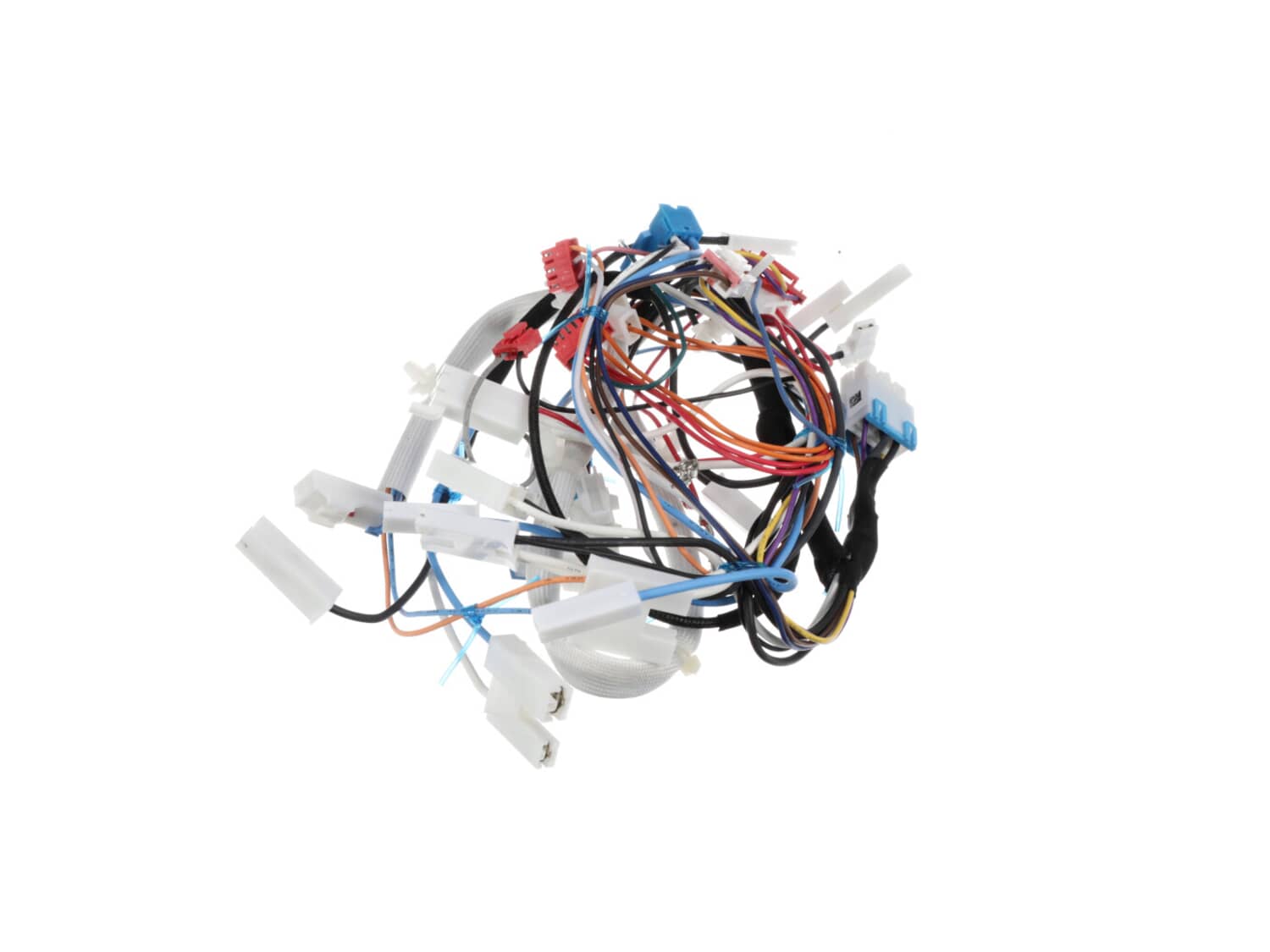

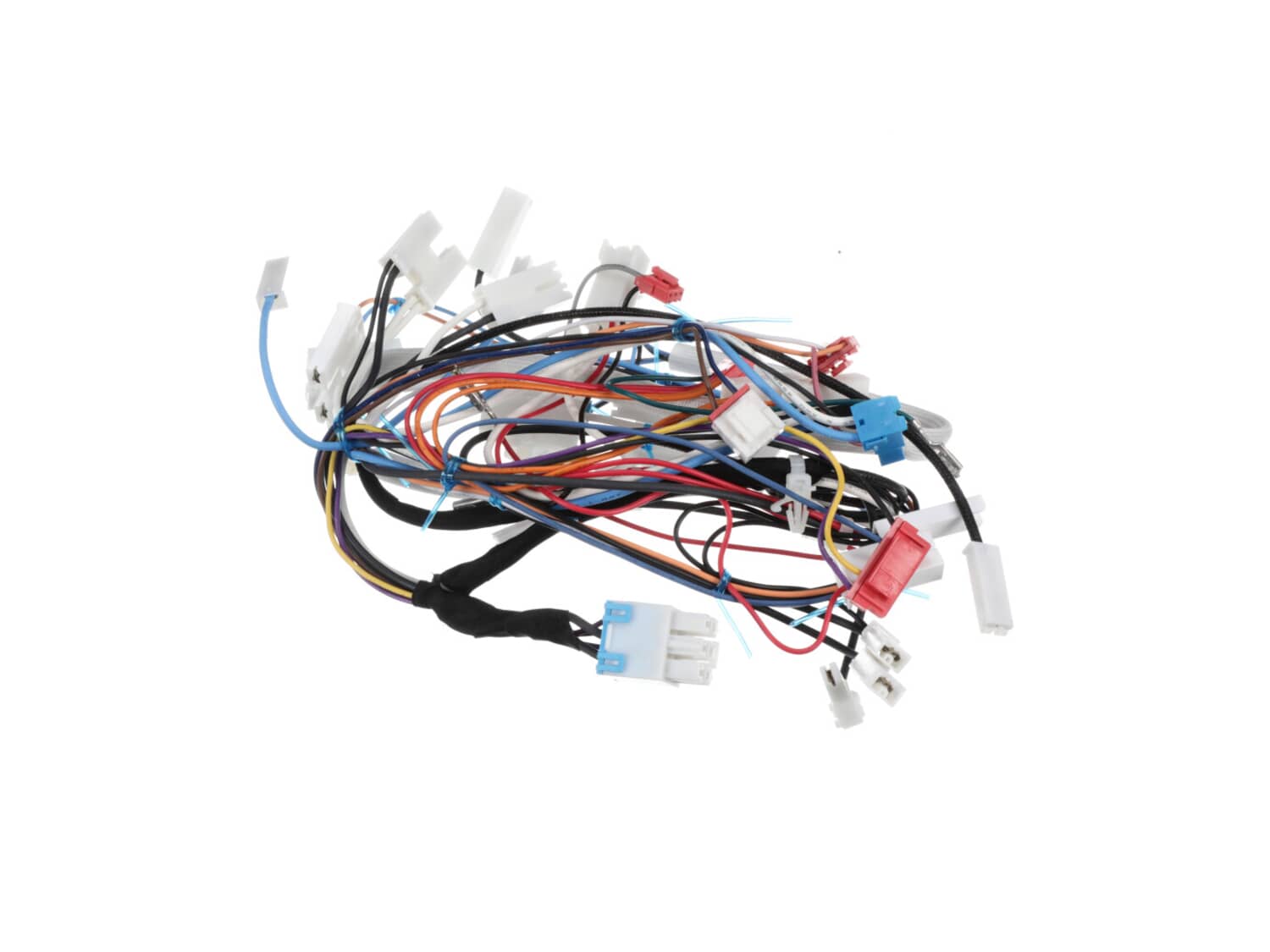

Wire Harness Assembly DE96-01136B

Manufactured by:
Samsung
ERP Number:
ERP16736420
Part Number:
DE96-01136B
Original Equipment Manufacturer ?
$190.88
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Samsung
This part works with the following products:
  • Microwave
  • Microwave Oven Combo

Model Cross Reference

This part works with the following models:
ERP Number: ERP16736420
Manufacturer Part Number: DE96-01136B
Brand Model Number Description
Samsung ME11A7510DG Microwave - Microwave/Hood Combo
Samsung ME11A7510DG/AA Microwave - 1.1 Cu Ft Over The Range Microwave - Black Stainless Steel
Samsung ME11A7510DS Microwave - Microwave/Hood Combo
Samsung ME11A7510DS/AA Microwave - 1.1 Cu Ft Over The Range Microwave - Stainless Steel
Samsung ME11CB751012AA Microwave Oven Combo - Mwo : Microwaveoven
Samsung ME11F7510MT/AA Microwave Oven Combo
