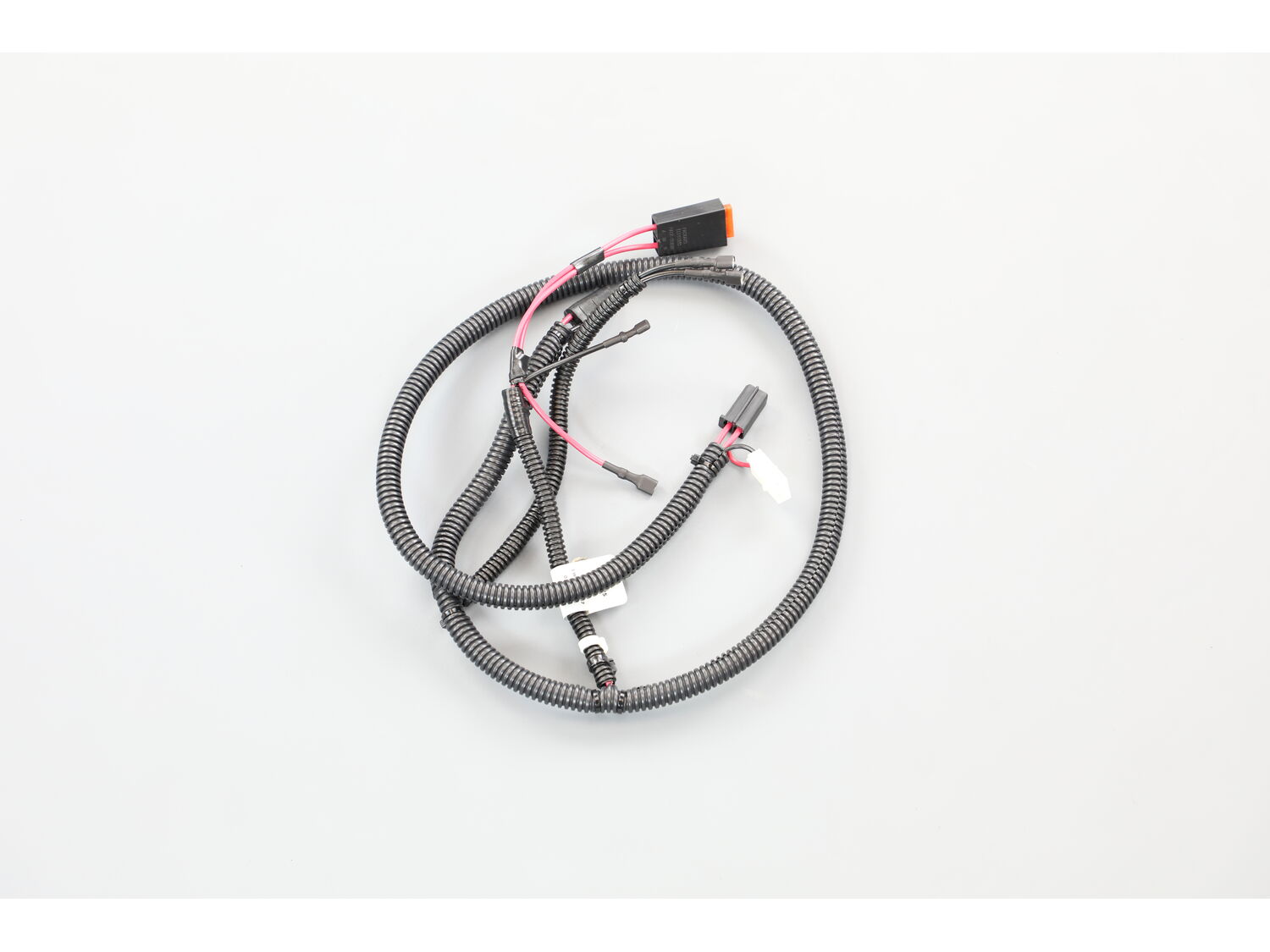

9259982-1-M-Toro-117-1216-Harness-Wiring

( Grid squares measure 1x1 inch )

9259982-1-S-Toro-117-1216-Harness-Wiring

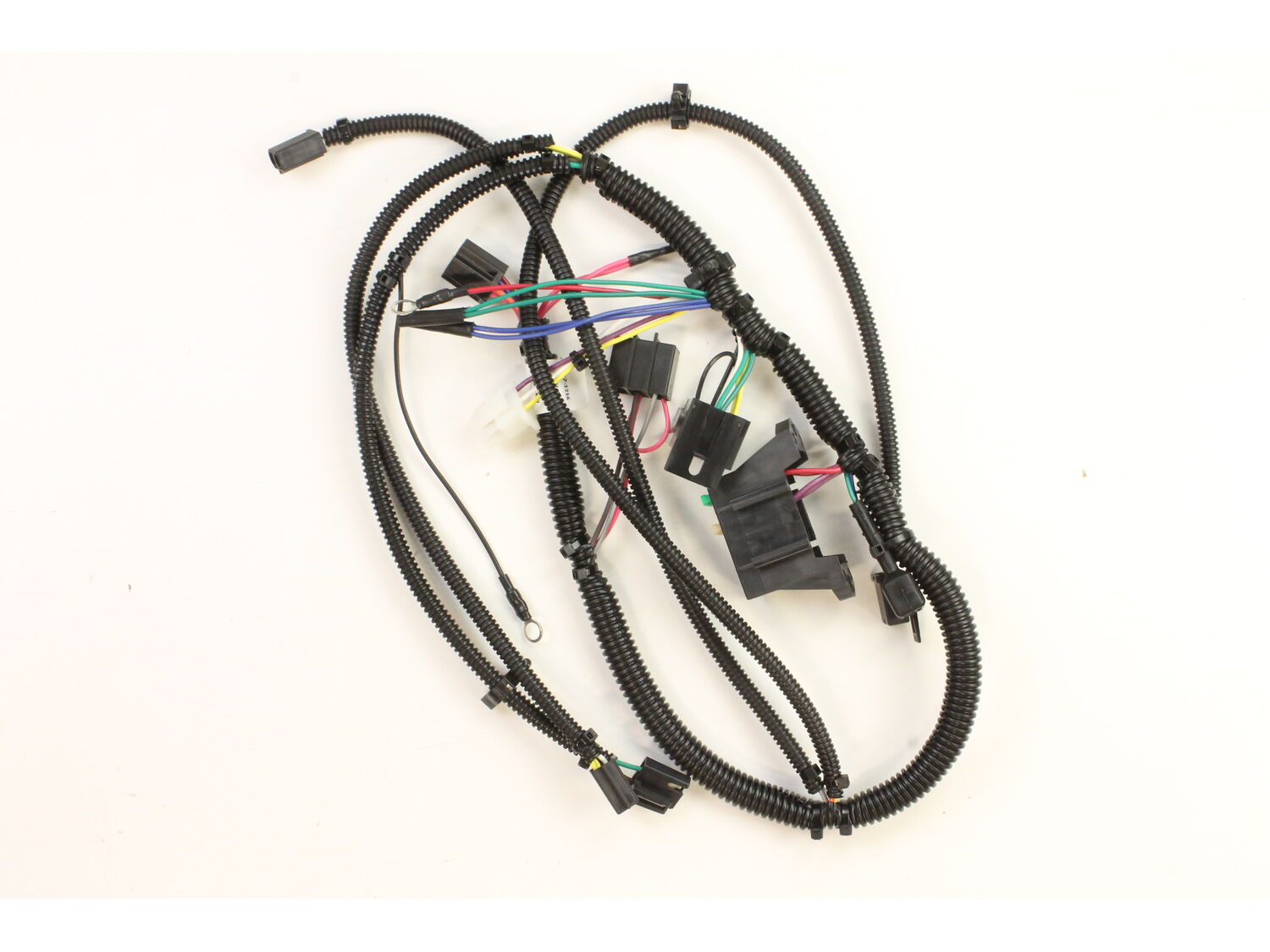

9259982-2-S-Toro-117-1216-Harness-Wiring

Harness-Wiring 117-1216

Manufactured by:: Toro
ERP Number:: ERP9259982
Part Number:: 117-1216

$326.03

A Bit Difficult

1- 2 hours

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Enter your model number

Jump to:

Troubleshooting Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:

Toro
Lawn Boy

This part works with the following products:

Lawn Tractor
Lawn Mower

Part# 117-1216 replaces these:

117-1216,

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

1- 2 hours

(1 rated repair) ?

< Prev
1
Next >

Sort by:

The wires to the clutch were broken

Brent from Columbia Falls, Montana

1 person found this instruction helpful.

Difficulty Level:: A Bit Difficult
Total Repair Time:: 1- 2 hours
Tools:: Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Parts Used:: 117-1216

I took all the parts off of the mower that were in the way or covering the wire harness.
Then I started unplugging the old plugs and attaching the new ones one by one so that I wouldnÆt lose track of whee things went.
I used some dielectric grease on the electrical contacts.
Then I put all the body parts back on an d tes ... Read more

Read less

Did you find this story helpful?

< Prev
1
Next >

Model Cross Reference

This part works with the following models:

ERP Number: ERP9259982
Manufacturer Part Number: 117-1216

Brand	Model Number	Description
Toro	136	Lawn Mower - 136/Serial: 136e280000001-136e280999999/2008
Toro	136E	Lawn Mower - 136e/Serial: 290000001-290999999
Toro	725058046	Lawn Mower - 725058046/Serial: T07zt0001-
Toro	725058056	Lawn Mower - 725058056/Serial: T07zu0001-
Toro	725058066	Lawn Mower - 725058066/Serial: T07zv0001-
Toro	725058086	Lawn Mower - 725058086/Serial: T09zw0001-
Toro	74360	Lawn Tractor - Lawn Tractor
Toro	74363	Lawn Tractor - Lawn Tractor
Toro	74370	Lawn Tractor - Lawn Tractor
Toro	74372	Lawn Tractor - Lawn Tractor
Toro	74373	Lawn Tractor - Lawn Tractor
Toro	74374	Lawn Tractor - Lawn Tractor
Toro	74375	Lawn Tractor - Lawn Tractor
Toro	74380	Lawn Tractor - Lawn Tractor
Toro	74381	Lawn Tractor - Lawn Tractor
Toro	74391	Lawn Mower - 74391/Serial: 290000226-290999999
Toro	74399	Lawn Tractor - Lawn Tractor
Lawn Boy	81271	Lawn Tractor - Precision Z3500 Hlx Riding Mower
Toro	94360	Lawn Mower - 94360/Serial: T07zt0001-
Toro	94370	Lawn Mower - 94370/Serial: T07zu0001-
Toro	94372	Lawn Mower - 94372/Serial: T07zv0001-
Toro	94375	Lawn Mower - 94375/Serial: T09zw0001-
Toro	RZT420H	Lawn Mower - Toro Lawn Mower Model RZT420H Parts
