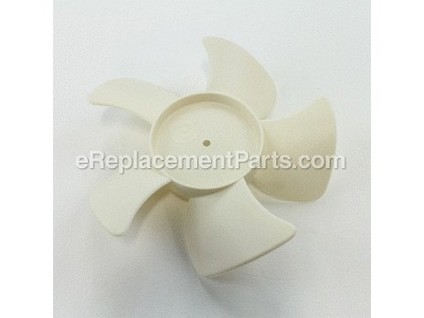

8834263-1-M-Toro-108393-Nylon Fan-L-Cw
Part Location Diagram of 108393 Toro Nylon Fan-L-Cw
See part B-15 in the diagram
( Grid squares measure 1x1 inch )
8834263-1-S-Toro-108393-Nylon Fan-L-Cw Part Location Diagram of 108393 Toro Nylon Fan-L-Cw

Nylon Fan-L-Cw 108393

Manufactured by:
Toro
ERP Number:
ERP8834263
Part Number:
108393
Original Equipment Manufacturer ?
$56.49
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

30 - 60 mins

(3 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Description Troubleshooting Repair Instructions Model Cross Reference

Product Description

?

This nylon cooling fan is a genuine OEM Toro/Wheel Horse replacement designed to mount on the hydrostatic transmission and help dissipate heat during operation. Made from durable plastic with a four-blade design, it supports proper transmission cooling and reliable performance, making it an ideal replacement when a damaged or missing fan leads to overheating or reduced drivetrain efficiency.

Troubleshooting

This part works with the following brands:
  • Toro
This part works with the following products:
  • Lawn Tractor

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

30 - 60 mins

(3 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Correct replacement

Peter from Boyertown, Pennsylvania

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Socket set
Parts Used:
108393
1. took off mounting nut and washer
2. Removed old broken fan
3. Installed new fan with washer and bolt
4. Started to verify operational - all good
Did you find this story helpful?
Thank you for voting!

Hydro fan blade was broken ,disconnect rod missing

Randy from WATERLOO, Iowa

0 of 1 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set, Wrench set
Parts Used:
110780-03, 108393
Removed foot rest and drive belt cover ,removed broken fan blade and installed the new one ,removed drive belt and idler pulley and installed disconnect arm and pulley,reinstalled belt ,cover and foot rest
Did you find this story helpful?
Thank you for voting!

Picked up a stick, it lodged under seat where the nylon fan blade is, breaking a blade and cracking another. This helps cool the transmission.

Jerald from Leslie, Arkansas

0 of 1 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Wrench set
Parts Used:
108393
Jacked machine up, pulled right wheel set on jack stand. Loosened idler (drive belt) removed. Loosened fan blade removed and replaced and put everything back together again.
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP8834263
Manufacturer Part Number: 108393
Brand Model Number Description
Toro 01-08K803 Lawn Tractor - Lawn Tractor
Toro 01-10K803 Lawn Tractor - Lawn Tractor
Toro 01-12K803 Lawn Tractor - Lawn Tractor
Toro 01-14KE03 Lawn Tractor - Lawn Tractor
Toro 01-14KE04 Lawn Tractor - Lawn Tractor
Toro 01-17K803 Lawn Tractor - Lawn Tractor
Toro 01-17KE02 Lawn Tractor - Lawn Tractor
Toro 01-17KE03 Lawn Tractor - Lawn Tractor
Toro 01-19KE01 Lawn Tractor - Lawn Tractor
Toro 01-19KE02 Lawn Tractor - Lawn Tractor
Toro 11-08K801 Lawn Tractor - Lawn Tractor
Toro 11-10K801 Lawn Tractor - Lawn Tractor
Toro 11-10K802 Lawn Tractor - Lawn Tractor
Toro 11-12K801 Lawn Tractor - Lawn Tractor
Toro 11-12K802 Lawn Tractor - Lawn Tractor
Toro 11-14KE01 Lawn Tractor - Lawn Tractor
Toro 11-16K801 Lawn Tractor - Lawn Tractor
Toro 11-17K801 Lawn Tractor - Lawn Tractor
Toro 11-17KE01 Lawn Tractor - C-175 Twin Automatic Lawn Tractor
Toro 21-08K801 Lawn Tractor - Lawn Tractor
Toro 21-08K802 Lawn Tractor - Lawn Tractor
Toro 21-08K803 Lawn Tractor - Lawn Tractor
Toro 21-10K801 Lawn Tractor - Lawn Tractor
Toro 21-10K802 Lawn Tractor - Lawn Tractor
Toro 21-10K803 Lawn Tractor - Lawn Tractor
Toro 21-10K804 Lawn Tractor - Lawn Tractor
Toro 21-12K801 Lawn Tractor - Lawn Tractor
Toro 21-12K802 Lawn Tractor - Lawn Tractor
Toro 21-12K803 Lawn Tractor - Lawn Tractor
Toro 21-12K804 Lawn Tractor - Lawn Tractor
Nylon Fan-L-Cw
$ 56.49
In Stock
✖
Stock Status
✖
Mail-In Recycling Rebate

Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

✖
