10069908-1-M-Snapper-705128-Arm Brake Mower
Part Location Diagram of 705128 Snapper Arm Brake Mower
See part A-63 in the diagram

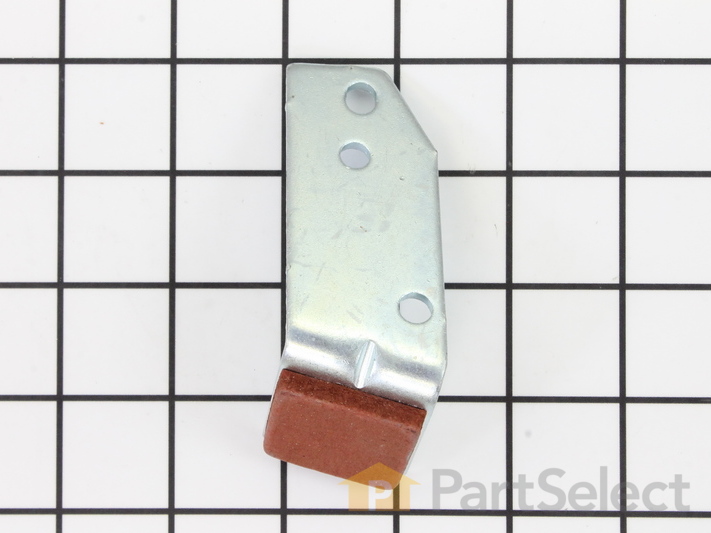

( Grid squares measure 1x1 inch )
10069908-1-S-Snapper-705128-Arm Brake Mower Part Location Diagram of 705128 Snapper Arm Brake Mower

Arm Brake Mower 705128

Manufactured by:
Snapper
ERP Number:
ERP10069908
Part Number:
705128
Original Equipment Manufacturer ?
$56.09
On Order

Easy

30 - 60 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Description Troubleshooting Repair Instructions Model Cross Reference

Product Description

?

This brake arm is a genuine OEM replacement designed for lawn tractors. It plays a key role in the braking system by engaging and controlling brake operation to help ensure safe stopping and reliable performance. Built from durable materials for a precise fit, it’s an ideal replacement when worn or damaged brake components affect braking response or overall tractor safety.

Troubleshooting

This part works with the following brands:
  • Snapper
This part works with the following products:
  • Lawn Tractor

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

30 - 60 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

The old brake was worn out

leslie from Middlebury Center, Pennsylvania

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set
Parts Used:
709728, 705226, 705148, 705128
1 Lifted the front of the tractor and blocked it up
2 Removed all the deck supports
3 Slid the deck from under the tractor
4 Removed the old spring
5 Removed old arm break
6 Installed one screw in the end of the arm break
7 Installed spring
8 Moved arm break into position
9 Placed wood bloc k between the two pulleys to keep tension off of break pad
10 Aligned second screw hole and inserted screw
11. Removed wooden block
12 Reinstalled deck
Read less
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP10069908
Manufacturer Part Number: 705128
Brand Model Number Description
Snapper ST1842 Lawn Tractor - 42-In. 18.5 Gross Hp Tractor
Snapper ST1942 Lawn Tractor - 42-Inch 19 Gross Hp Hydro Drive Lawn Tractor
Snapper ST1946 Lawn Tractor - 46-Inch 19 Gross Hp Hydro Drive Lawn Tractor
Snapper ST2046 Lawn Tractor - 46-In. 20 Gross Hp Tractor
Snapper ST2446 Lawn Tractor - 46-Inch 24 Gross Hp Hydro Drive Lawn Tractor
