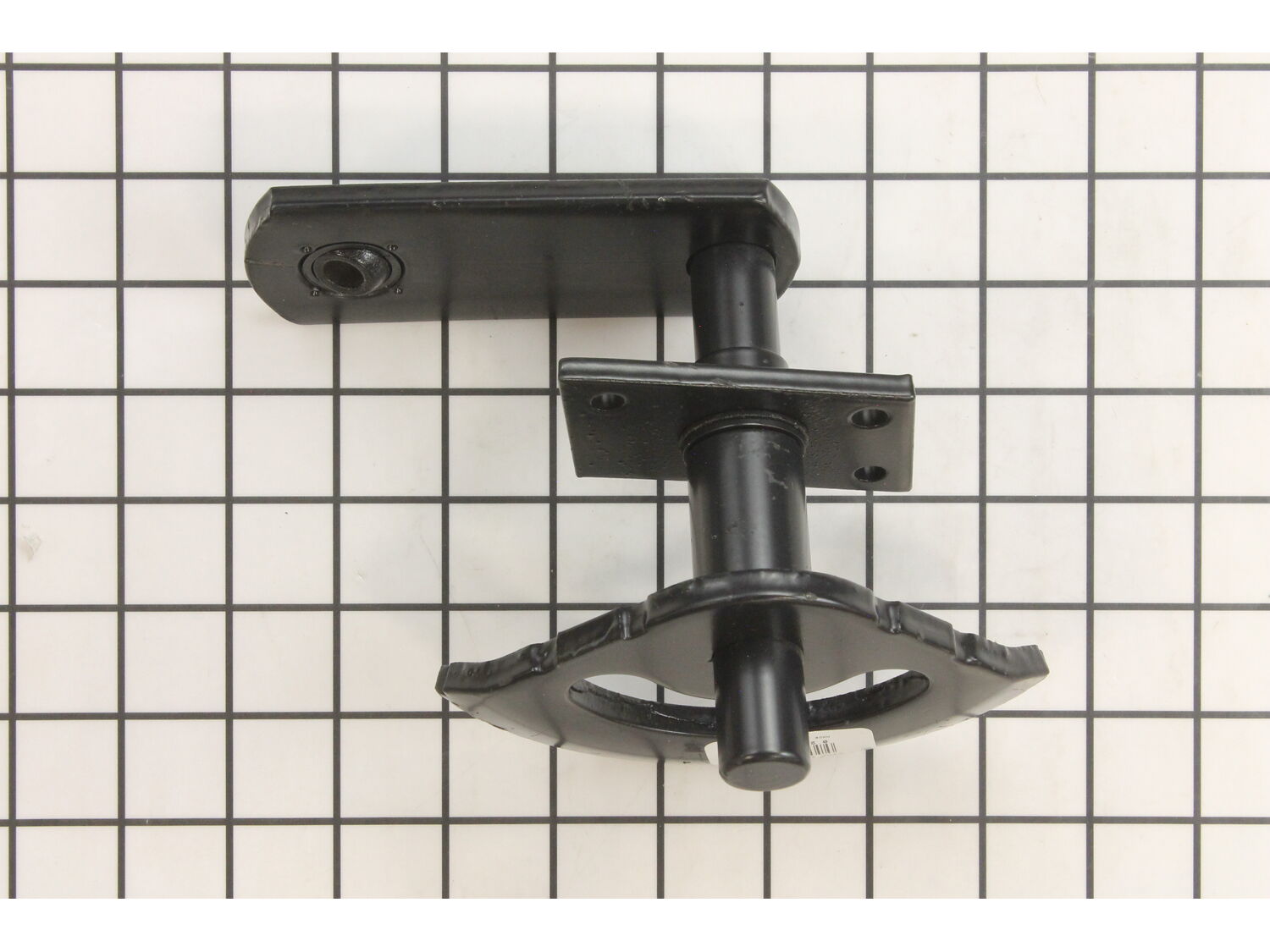

GEAR & SHAFT ASSEMBLY, Steering 1724470ASM

Manufactured by:: Murray
ERP Number:: ERP8888900
Part Number:: 1724470ASM

$175.47

A Bit Difficult

15 - 30 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Enter your model number

Jump to:

Troubleshooting Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:

Simplicity
Snapper
Murray
Craftsman

This part works with the following products:

Lawn Tractor
Lawn Mower

Part# 1724470ASM replaces these:

1724470ASM,

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

15 - 30 mins

(1 rated repair) ?

< Prev
1
Next >

Sort by:

Ball joint had failed

Aaron from Sheboygan, Wisconsin

0 of 1 people found this instruction helpful.

Difficulty Level:: A Bit Difficult
Total Repair Time:: 15 - 30 mins
Tools:: Pliers, Screw drivers, Socket set, Wrench set
Parts Used:: 1724470ASM

1. Removed the mower deck and raised the front end.
2. Removed the steering rod.
3. Removed the bolts that holds the assembly in place.
4. Loosened both bolts and removed one that holds the power steering drive gear in place.
5. Removed the assembly.
6. Lubricated and installed the new assembly.
7. Reve ... Read more
