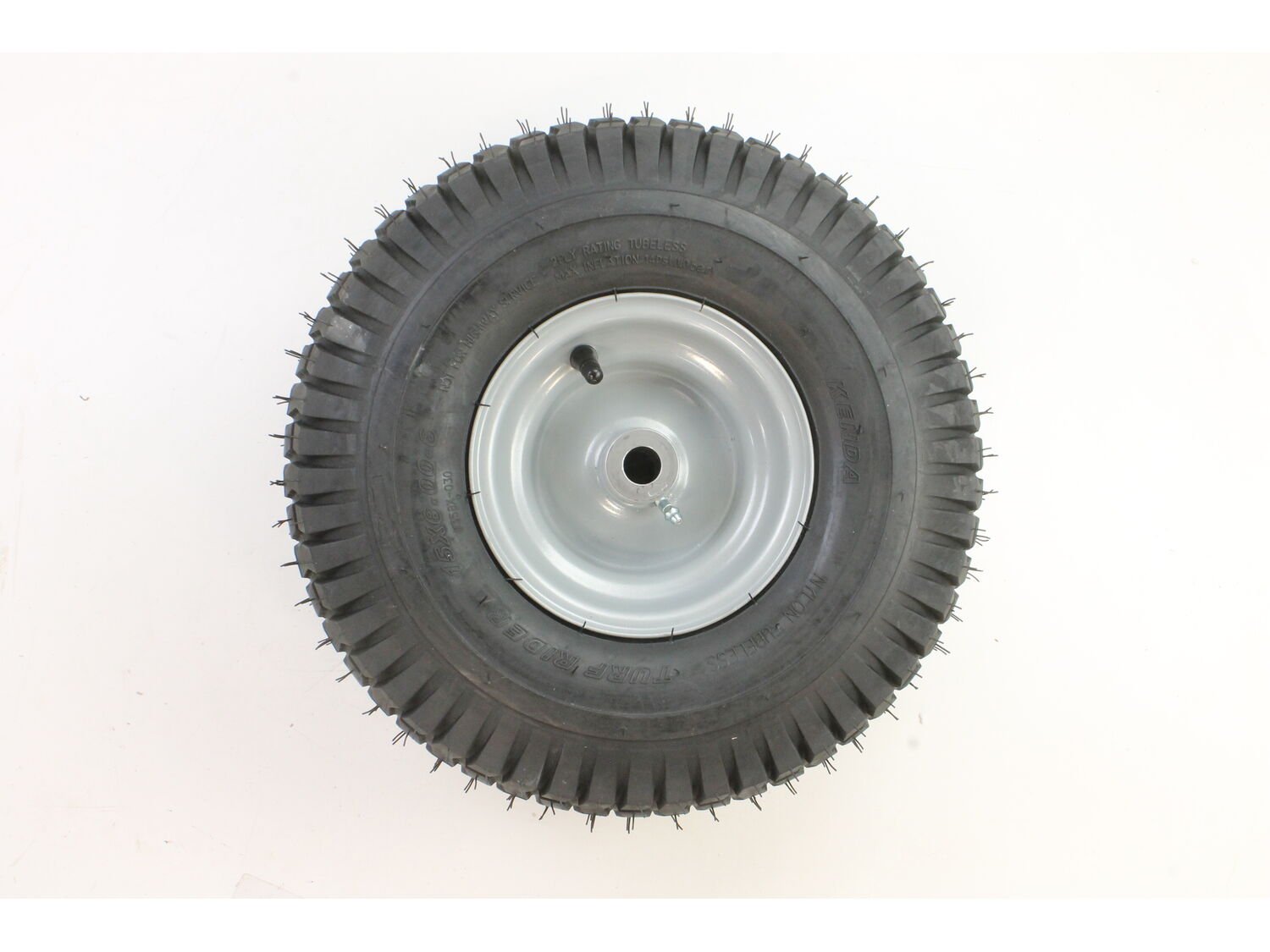

16300784-1-M-Murray-1761503YP-Wheel And Tire Assembly, Front, 15 X 6-6
Part Location Diagram of 1761503YP Murray Wheel And Tire Assembly, Front, 15 X 6-6
See part L-10 in the diagram
( Grid squares measure 1x1 inch )
16300784-1-S-Murray-1761503YP-Wheel And Tire Assembly, Front, 15 X 6-6 Part Location Diagram of 1761503YP Murray Wheel And Tire Assembly, Front, 15 X 6-6

Wheel And Tire Assembly, Front, 15 X 6-6 1761503YP

Manufactured by:
Murray
ERP Number:
ERP16300784
Part Number:
1761503YP
Original Equipment Manufacturer ?
$197.82
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

1- 2 hours

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Simplicity
  • Snapper
  • Murray
  • Briggs and Stratton
  • Craftsman
This part works with the following products:
  • Lawn Tractor
  • Lawn Mower
Part# 1761503YP replaces these:
1729708SM, 1761503YP,

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

1- 2 hours

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Major bearing failure of blade shaft.

John from Vashon, Washington

3 of 3 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Socket set, Wrench (Adjustable), Wrench set
Parts Used:
1732543SM, 1713616SM, 1713199ASM, 1761503YP, 1713196SM, 1732951SM, 1713619SM, 1705897SM, 1713338ASM, 1713612SM, 1707335SM
Removed the old housing assembly. Pressed the new bearings into the new housings. Assembled the new parts and mounted them on the mower deck. Fastened the blade to the lower end of the new shaft. Remounted the blade drive belt. Replaced the belt guard. Test ran the machine.

Note: When pressing the bearings into the housings , it is critical to apply force only to the outer race of the bearings.
Read less
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP16300784
Manufacturer Part Number: 1761503YP
Brand Model Number Description
Craftsman 130280110 Lawn Tractor - Lt2146 Series 46 Inch Lawn Tractor 21hp
Craftsman 130280111 Lawn Tractor - Lt2146 Series 46 Inch Lawn Tractor 21hp
Craftsman 130280120 Lawn Tractor - Lt2452 Series 52 Inch Lawn Tractor 24hp
Craftsman 130280121 Lawn Mower - Craftsman Lawn Mower Model 130.280121 (130280121, 130 280121) Parts
Simplicity 1693915 Lawn Tractor - Regent, 16Hp Hydro
Simplicity 1693916 Lawn Tractor - Regent, 16Hp Hydro And 38In Mo
Simplicity 1693917 Lawn Tractor - Regent, 16Hp Hydro And 44In Mo
Simplicity 1693918 Lawn Tractor - Regent, 17Hp Hydro
Simplicity 1693919 Lawn Tractor - Regent, 17Hp Hydro And 40In Mo
Simplicity 1693925 Lawn Tractor - Regent, 16Hp Hydro (Ceexport)
Simplicity 1693926 Lawn Tractor - Regent, 16Hp Hydro (Ceexport)
Simplicity 1693928 Lawn Tractor - Regent, 17Hp Hydro (Ceexport)
Simplicity 1693929 Lawn Tractor - Regent, 17Hp Hydro (Ceexport)
Simplicity 1693935 Lawn Tractor - 516H, 16Hp Hydro
Simplicity 1693936 Lawn Tractor - 516H, 16Hp Hydro And 38In Mowe
Simplicity 1693937 Lawn Tractor - 516H, 16Hp Hydro And 44In Mowe
Simplicity 1693938 Lawn Tractor - 517H, 17Hp Hydro
Simplicity 1693939 Lawn Tractor - 517H, 17Hp Hydro And 40In Mowe
Simplicity 1693948 Lawn Tractor - 2516, 16Hp Hydro
Simplicity 1693949 Lawn Tractor - 2516, 16Hp Hydro And 38In Mowe
Simplicity 1693950 Lawn Tractor - 2516, 16Hp Hydro And 44In Mowe
Simplicity 1693951 Lawn Tractor - 2517H, 17Hp Hydro
Simplicity 1693952 Lawn Tractor - 2517H, 17Hp Hydro And 40In Mow
Simplicity 1693957 Lawn Tractor - 2517, 17Hp Hydro (Ceexport)
Simplicity 1693958 Lawn Tractor - 2517, 17Hp Hydro (Ceexport) Tr
Simplicity 1694141 Lawn Tractor - Regent, 16Hp Hydro
Simplicity 1694142 Lawn Tractor - Regent, 16Hp Hydro And 38In Mo
Simplicity 1694185 Lawn Tractor - 2516H, 16Hp Hydro (Ceexport)
Simplicity 1694186 Lawn Tractor - 2516H, 16Hp Hydro (Ceexport) T
Simplicity 1694200 Lawn Tractor - Regent, 16Hp Hydro
