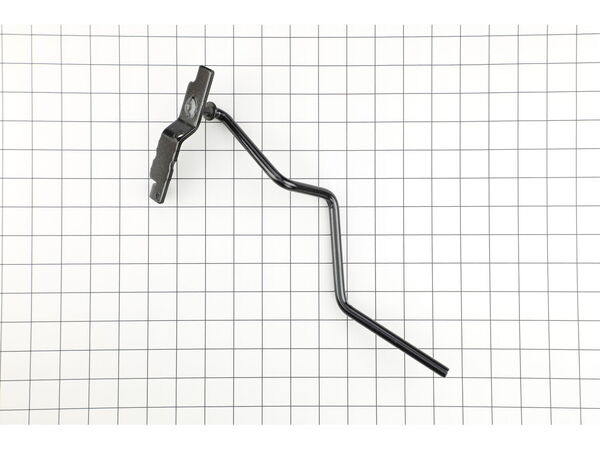

9988549-1-M-MTD-647-04096A-0637-Handle Asm-pto Lt-
Part Location Diagram of 647-04096A-0637 MTD Handle Asm-pto Lt-
See part E-2 in the diagram
( Grid squares measure 1x1 inch )
9988549-1-S-MTD-647-04096A-0637-Handle Asm-pto Lt- 9988549-2-S-MTD-647-04096A-0637-Handle Asm-pto Lt- 9988549-3-S-MTD-647-04096A-0637-Handle Asm-pto Lt- Part Location Diagram of 647-04096A-0637 MTD Handle Asm-pto Lt-

Handle Asm-pto Lt- 647-04096A-0637

Manufactured by:
MTD
ERP Number:
ERP9988549
Part Number:
647-04096A-0637
Original Equipment Manufacturer ?
  Works with your model  13AM77LS058!
$57.33
★★★★★
★★★★★
2 Reviews
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

More than 2 hours

(1 rated repair) ?
  Works with your model   13AM77LS058!

Jump to:

Description Troubleshooting Reviews Questions & Answers Repair Instructions Model Cross Reference

Product Description

?

This is a genuine MTD replacement part. The PTO handle assembly is designed by the manufacturer for use in lawn tractors. This part is made of metal, and is attached to the frame assembly to control the power take-off. You may require a screwdriver, wrench, and pliers when replacing this item. This part is sold individually.

Troubleshooting

This part works with the following brands:
  • MTD
  • Craftsman
  • Troy-Bilt
  • Murray
  • Yard Machines
  • Yard Man
  • Bolens
  • Husky
This part works with the following products:
  • Lawn Tractor
  • Lawn Mower
Part# 647-04096A-0637 replaces these:
647-04040-0637, 647-04040-0638, 647-04040-0650, 647-04040-0665, 647-04040-0709, 647-04096-0637, 647-04096-0638, 647-04096A-0637, 647-04096A-0638,
★

Customer Part Reviews

?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(2 Reviews)
Click to filter by ratings:
  • 5 stars
    2
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Perfect fit
Arrived quickly, perfect fit. Kept me informed along the way from order to delivery.
Guest - July 12, 2023
Verified Purchase
★★★★★
★★★★★
Perfect replacement part
Had to take off the rear wheel and pull out the battery to put on but works perfectly
Guest - November 7, 2023
Verified Purchase

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

More than 2 hours

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

PTO bushings & journal on PTO handle worn out

John from Simpsonville, South Carolina

8 of 8 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers, Socket set, Wrench set
Parts Used:
647-04096A-0637
Remove battery & two battery seat brackets, Remove rubber hand grip from PTO then split bushing, disconnect cable and tension spring on the side, lower deck height maneuver PTO handle into the center & take out through opening where battery was, basically easy just tight space and frustrating.
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP9988549
Manufacturer Part Number: 647-04096A-0637
Brand Model Number Description
MTD 13A1762F020 Lawn Tractor - Ride on Lawn Mower
MTD 13A1762F065 Lawn Tractor - Lawn Tractor
MTD 13A1762F265 Lawn Tractor - Lawn Tractor
MTD 13A1762F500 Lawn Tractor - Lawn Tractor
Yard Machines 13A1762F729 Lawn Tractor - Transmatic Lawn Tractor
MTD 13A2771G790 Lawn Mower - MTD Lawn Mower Model 13A2771G790/2005 Parts
Yard Machines 13A2775S000 Lawn Tractor - Lawn Tractor
Craftsman 13A277XS099 Lawn Mower - Craftsman Lawn Mower Model 13A277XS099 Parts
Craftsman 13A277XS299 Lawn Mower - Craftsman Lawn Mower Model 13A277XS299 Parts
MTD 13A2791G790 Lawn Mower - MTD Lawn Mower Model 13A2791G790/2005 Parts
MTD 13A878XT099 Lawn Tractor - Riding Mowers and Tractors
Yard Machines 13AC762F000 Lawn Tractor - Lawn Tractor
Yard Machines 13AC762F020 Lawn Tractor - Ride On Lawn Mower
MTD 13AC762F052 Lawn Tractor - Front-Engine Lawn Tractor
MTD 13AC762F065 Lawn Tractor - Ride on Lawn Mower
MTD 13AC762F200 Lawn Tractor - Ride on Lawn Mower
MTD 13AC76GF897 Lawn Mower - MTD Lawn Mower Model 13AC76GF897/2010 Parts
MTD 13AC76LF031 Lawn Mower - MTD Lawn Mower Model 13AC76LF031/2011 Parts
Yard Man 13AC76LF055 Lawn Tractor - Ride on Lawn Mower
MTD 13AC76LF058 Lawn Tractor - Lawn Tractor
MTD 13AC77KF897 Lawn Mower - MTD Lawn Mower Model 13AC77KF897 Parts
Yard Machines 13AH762F052 Lawn Mower - Yard Machines Lawn Mower Model 13AH762F052 Parts
Troy-Bilt 13AH762F752 Lawn Tractor - Lawn Tractor
MTD 13AJ771G000 Lawn Tractor - Lawn Tractor
MTD 13AJ771G002 Lawn Tractor - Lawn Tractor
MTD 13AJ771G004 Lawn Tractor - Lawn Tractor
MTD 13AJ771G009 Lawn Tractor - Lawn Tractor
MTD 13AJ771G016 Lawn Tractor - Lawn Tractor
MTD 13AJ771G019 Lawn Tractor - Lawn Tractor
MTD 13AJ771G022 Lawn Tractor - Lawn Tractor
