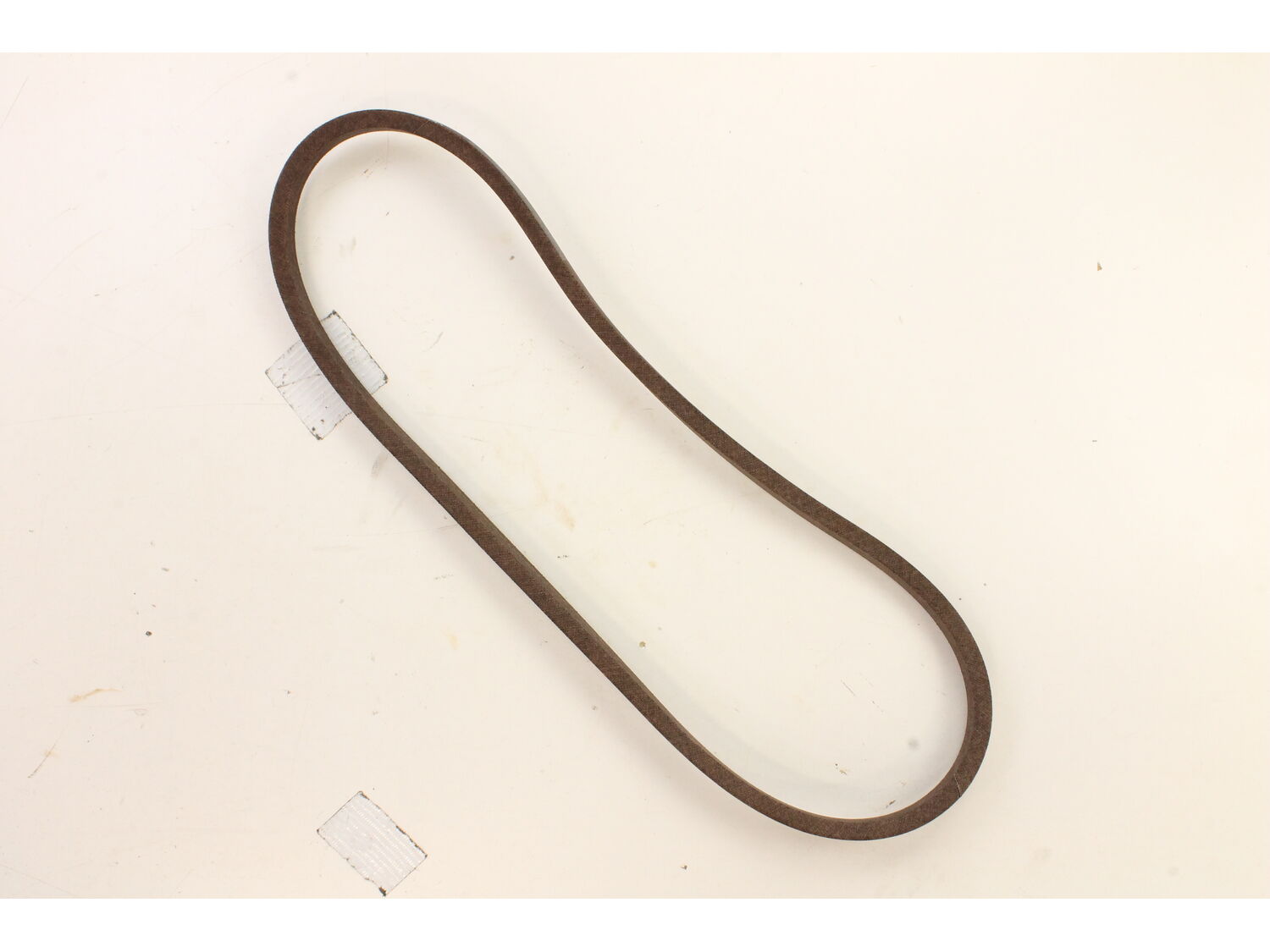

This replacement upper drive belt is a genuine part. It is supplied from original equipment manufacturer for use with riding lawn mowers/tractors. This is one of the belts that drives the mower. When installing a new belt, make sure to clean pulleys to ensure top performance and longevity of your new belt. Inspect belt periodically and replace it when worn or stretched. This part is made out of rubber and it is sold individually. To complete this repair you will need a set of wrenches.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
fit correctly
Quick service and great price!!
Guest - April 30, 2019
Verified Purchase
★★★★★
★★★★★
Great part
The part was correct and website was easy to use
Alex - May 8, 2019
Verified Purchase
★★★★★
★★★★★
Wheel drive belts for garden tractor
The moment I got someone on the phone they spoke English and understood exactly what I needed by my tractor numbers. They arrived quickly and was able to put the machine back in service.awsome job. I'll be using these folks again for the next project. Thank you so much
Guest - April 14, 2020
Verified Purchase
★★★★★
★★★★★
very good service
great belt good service
Guest - May 12, 2020
Verified Purchase
★★★★★
★★★★★
exactly what I ordered
I have used e replacements numerous times and always receive the exact parts that I ordered along with instructions on how to install the part, if needed. And prompt shipment of parts.
Guest - December 10, 2020
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
I am very grateful for the videos you provided, they are very helpful.I had to remove the seat as shown to get to all parts easily. My mower had rusted screws that needed to be removed by cuting them off and replaceing. The main drive belt had to be wiggled around the variable speed pully and there was a hidden guide bar that had to be re
... Read moremoved to extract and replace the drive belt. The rest was a piece of cake. I have had an excellent experience with your company and have told all my friends of you.I also repaired my electric range with your parts that fit perfectly.Thanks and keep up the good work.ps I am 72 years old.
Read less
Did you find this story helpful?
Thank you for voting!
Variable speed drive belt was cracked in many places, causing noise and vibration on control pedal
1. Removed mower deck from mower
2. Removed drive pulley from engine
3. Removed stud that\'s between the drive belt
4. Removed spring from idler gear box
5. Removed drive belt
6. Loosened three bolts that hold the idler gear box so the drive belt could clear the pulley
7. Installed new belts (upper driv
... Read moree belt and variable speed belt also known as drive belt)
8. The worst part in replacing the belts was getting the mower deck back on the mower
1. Remove belt retainer around engine pulley. Mark the hole it was in to be sure it is re-installed correctly later.
2. Remove deck.
2a. Raise mower and support on jack stands or other reliable support.
3. Remove engine pulley.
4. Remove belt retainer at variable speed pulley.
5. Remove variable speed belt.
<
... Read morebr />6. Remove remains of upper drive belt (cords wrapped around moving parts).
7. Install variable speed belt, engine pulley, and belt retainer at variable speed pulley.
8. Install upper drive belt. I removed the upper belt tensioner (idler bracket) and re-installed with belt to facilitate installation.
** For replacing belt pulley
9. Remove belt covers from deck.
10. Remove idler pulleys from deck.
11. Remove old A-section belt.
12. Position new A-section belt over spindle pulleys and route around idler pulleys while re-installing them.
13. Re-install belt covers over spindle pulleys on deck.
14. Install deck on mower per instructions in owners manual.
15. Install belt retainer around engine pulley, taking care to use the same mounting holes where it was before.
Found the bearing was worn out. had to pull the cowling off and gas tank to get to it from the top. The mower deck had to come off and then have to lean the unit over to get to the steering gear underneath. Also need a big breaker bar to remove the drive pulley so the belt would go on.
Did you find this story helpful?
Thank you for voting!
Steering was very loose & sloppy. Variable speed belt was badly worn.
William from Lamar, Arkansas
3 of 3 peoplefound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
1. I took off what was left of the old pulley (mostly plastic) and replaced it with the new all-metal pulley from e-Replacement Parts.
2. Then, I mounted the new upper drive belt.
3. From the time I placed my order on-line it only took two days for e-Replacement Parts to ship the new parts from Utah to me in Virginia and th
... Read moree next morning I quickly made the repair and had my lawn tractor running again.,
Removed deck pins
Removed deck cable
Removed deck
Tilted mower on side (gas can spill )
Loosen side plate to add room for belt
Removed old belt
Removed back pulley to replace bearing
Reinstalled back pulley
Removed pulley and guard from engine end
Routed new belt same as old (take pict
... Read moreure)
Replaced front pulley and wire guard
Replaced top belt
Tighten side plate
Set up mower
Reinstalled deck.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9312657
Manufacturer Part Number: 954-0468
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
