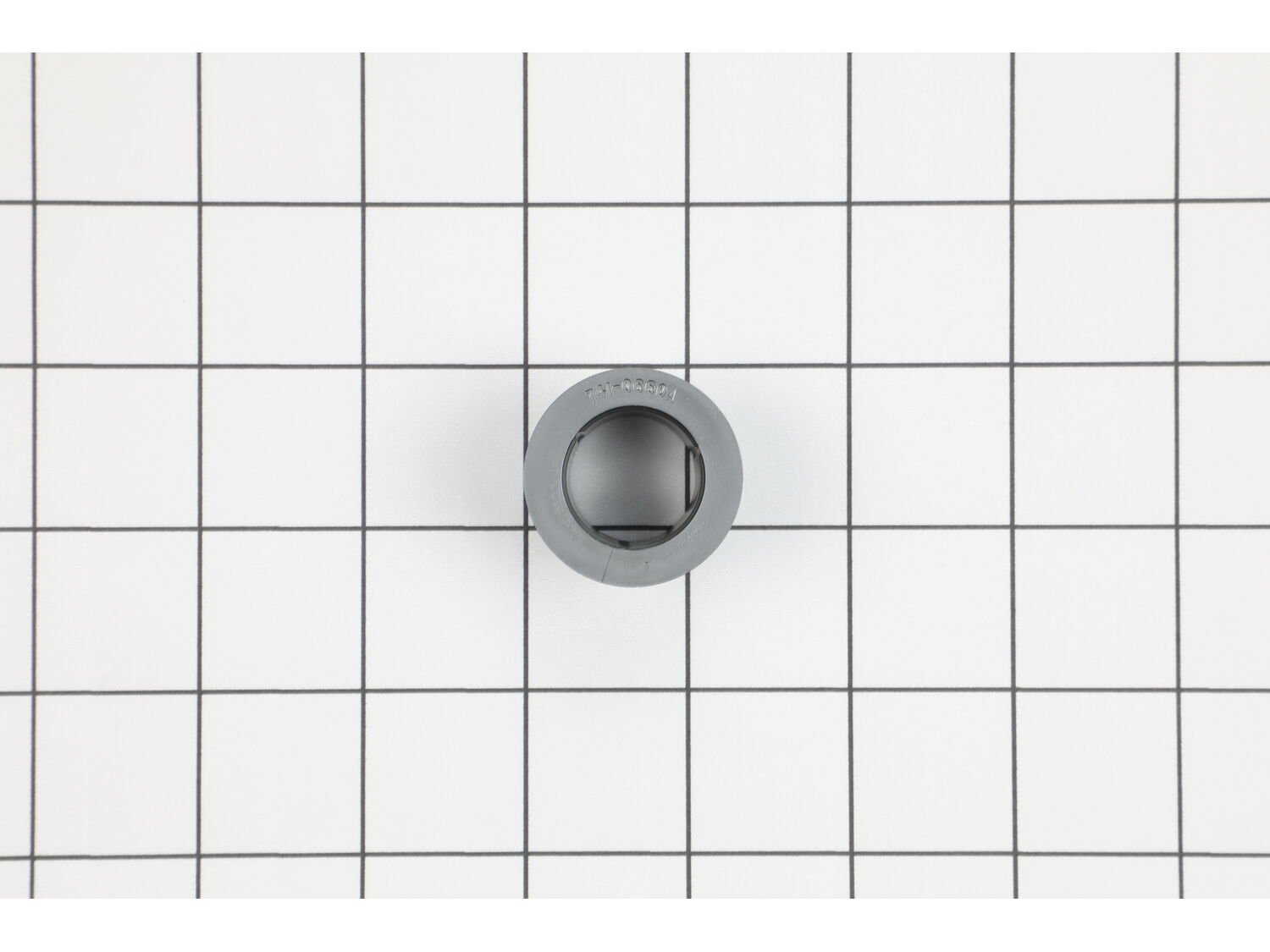

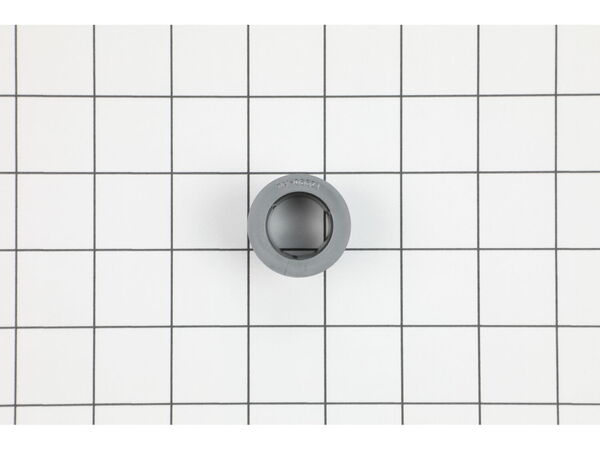

This is a Genuine Manufacturer Approved replacement part used on a variety of Lawn Tractors. This part is Sold Individually. This item helps to secure Axle Assembly to the Pivot Axle. This also helps Axle to move freely and effortless. Due to constant use and pressure being put on this part it would need to be inspected periodically and replaced if its showing signs of wear.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Great Company
Customer service and parts are unbeatable. I Highly Recommend and will be buying my future parts here. Thanks
Charles - April 18, 2019
Verified Purchase
★★★★★
★★★★★
Just what I needed to fix up my older mower.
This is just the parts I needed to get my mower up & running again. Delivery did not take very long and the parts fee and shipping costs were reasonable as well. I shall return as parts are needed.
Guest - July 2, 2019
Verified Purchase
★★★★★
★★★★★
Great part
Brand new part, easy to order
Guest - July 8, 2019
Verified Purchase
★★★★★
★★★★★
Perfect fit
The parts all went together as required.
Guest - August 10, 2019
Verified Purchase
★★★★★
★★★★★
great part
very fast service and fit perfectly!
Guest - April 21, 2021
Verified Purchase
★★★★★
★★★★★
The replacement is excellent way to go
Ordering replacement parts for my lawn tractor through E replacement parts was a very simple easy process and reliable. Would not hesitate to use this ordering process again in the future. Thank you for a pleasant experience.
Guest - July 23, 2021
Verified Purchase
★★★★★
★★★★★
worked as expected
Bushing were exactly what I ordered
Guest - August 17, 2021
Verified Purchase
★★★★★
★★★★★
2015 MTD 42" Flange Bearings
I had a lot of slop in my steering and was constantly having to correct my path when mowing a straight line. The parts were easy to find on the website, came in quickly and well packaged. I couldn't believe how worn the old ones were. I replaced these that fit in the front end frame and it steers great! Greg
Greg - September 16, 2022
Verified Purchase
★★★★★
★★★★★
Easy
Easy to find the parts I needed and fast delivery to me- will use you again in the future and will be recommended to others- Thanks !!
Conney - July 16, 2019
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Raise the front of the mower. You will have to use something other that a mower lift due to having to remove the wheel. Secure the mower on some type of stand for safety. Remove the steering rod from the axle frame. Remove the tie rod that connects to the other wheel. The axle frame should just slide out. In my case there was a good
... Read more bit of wear where the bearing flange goes, so I had to build that up using JB Weld. Once I had applied the JB Weld, I let it set for about 12 hours and then used a file to mill the hole so the bearing flange would slide in. I put a small amount of grease on the inside of the bearing flange, slide the axle frame spindle back into the axle frame through the top and bottom flanges, lowered the mower, replaced the steering rod and the tie rod and was finished. TIP: If you notice either of the wheels starting to lean in at the top. Go ahead and replace the bearing flange. If you catch it before it causes damage top the flange hole in the axle frame, you won\'t have to deal with the JB Weld.
Removed both front wheel bearings. Removed hood and nose cone. Removed steering arm and gear. Removed pivot axle. Greased and replaced all broken or worn out parts. Reassembled all other parts. Steers like new.
Removed bolt from the bottom of steering shaft and pulled up remover the old bushing and grease new bushing and shaft and dropped new bushing in hex indent and put shaft back through and bottom cap and bolt and tightened and put it down on the ground and tested works fine
Did you find this story helpful?
Thank you for voting!
Steering column gear stripped, front axles worn our bushings
Taking everything off to get to the gear assembly including moving gas tank, top of dash, dropping the front of the deck, removing front tires...After fighting with the phillips screw at the bottom of steering shaft for an hour finally had to use torch to heat it then use the 1/2\" impact to break it loose...If you follow your exploded pa
... Read morerts list and not lose any parts this repair is just time consuming but is not that hard...
1. Remove the front tires.
2. Remove the steering linkage.
3. Remove the screws holding the axle assembly.
4. Remove the axle assembly.
5. Remove the pivot axles.
6. Install the axle assembly.
7. Install the axle pivots.
8. Connect the steering linkage and the tires.
Did you find this story helpful?
Thank you for voting!
The steering assembly on the wheel was completely worn out. We\'ve used our riding mower heavily for over 10 years.
We were also changing the front Pivot Axle (ordered separately). We had to use our car jack to jack up the front of the mower - I have a mower jack, but that only picks up one side and we needed both front wheels off the ground. Then we had to remove the wheel on the side with the steering assembly, then the old steering assembly. Ther
... Read moree were 3 of us working on it - 2 senior females and 1 senior male. It was hard work for us, but we just took our time and got it done without any damages or injuries to ourselves or the mower. Some of the bolts are a little hard to get to - and you have to remove some other things from the front to get to the Pivot Axle - but it was worth it. It is now steering like a new mower once more. I mowed for 3 hours this morning and it worked great. Good to fix things yourself if you can.
Removed front wheels, removed wheel spindles from the frame fabricated steel bushing for worn frame to except the new plastic bushings and welded it into the frame. Installed new bushings on both sides lubricated both spindles and reinstalled. Installed front wheels and greased, complete.
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9122043
Manufacturer Part Number: 741-0660A
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
