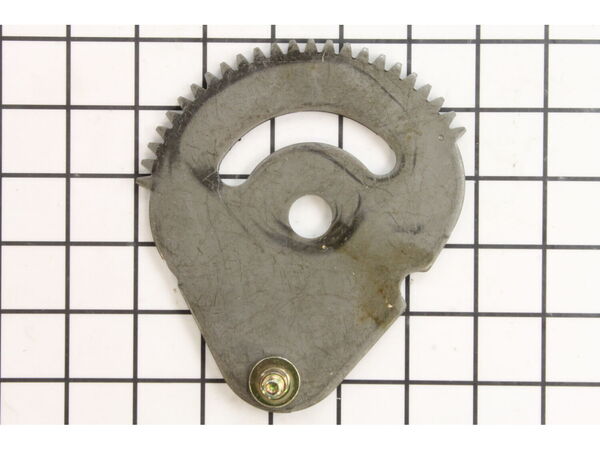

This replacement part is supplied directly from the original equipment manufacturer. It is specially designed for riding lawn mowers and garden tractors. The gear assembly is an important component which allows a user to steer the unit. It is the part that the steering shaft attaches to. This is an identical replacement for a damaged or a missing part that was installed on a new unit. Keep in mind this high-quality steering gear is made of durable metal and is sold individually. Refer to the diagrams of your model for the correct installation of the new part. You may need a screwdriver and a wrench set to take the deck apart in order to perform this repair.
Removed the gas tank for working space,then removed the dash and the shaft retainer to remove the steering wheel and shaft.
Replaced the gear and bushings and added the support plate that my early model did not have. This removed the play in the gear and allowed the steering shaft the fit tightly removing the looseness in the steeri
... Read moreng ,when it was reassembled, it was better than new.
1. Removed deck
2. Removed steering shaft and plate...replaced both
3. Reinstalled deck.
4. Minor adjustments to deck after reinstalling to even out mow
Started out removing steering shaft then the gear assembly and retainer plate then put the new parts back same order that was removed ending with greasing all parts fit perfect steers like new again
1. Drilled out screw at bottom of Steering Shaft.
2. Removed Steering Shaft and Gear Assembly Steering and associated parts.
3. Replaced both with the new parts and screwed together with all the new parts listed and the existing good parts.
Took off steering wheel, removed deck took Phillips screw took the moon gear off. Then reassemble.
Did you find this story helpful?
Thank you for voting!
Steering pinion gear and seat bearing wear worn out and need to be replace. The retaining screw was very difficult to remove and I replaced it with a hex bolt should I ever need to repair it again.
First removed to front next carriage bolt to drop the front end of the deck to improve the work area. Removed the steering wheel. Removed the two back bolt of the gas tank tray and loosened the two front screw this slow the tank to be moved forward, this allows room to take the three bolts out of the steering wheel dash collar. Clamp a pa
... Read moreir of vise grips to the steering shaft. Raise the tractor with a floor Jack or hoist and remove the retaining screw from the shaft located under the tractor, it will be difficult to remove. Remove the shaft from the dash end. Also remove the hex bearing and replace it with a new one this what the steering shaft gear end rests on and is made to be a sacrificed part, the bearing whole becomes worn to the point that will not hold the gear in an engaged position. Once this is is accomplished reassemble the steering system. Recommend that you check the gear engagement to the flat gear it interfaces with there are 24 teeth on the flat gear, I set the engage 13 teeth right 11 left. If you have to replace the flat gear also itGÇÖs two two bolts they will challenge your patients, itGÇÖs difficult to reach under the tractor two fins and engage a wrench and still address the other end on the top side, I made it a lot easier using a pneumatic 1/2 side wrench. I had to, job start to finish about 1 1/2 hrs, approx $90, hope this helps someone else.
Removed steer wheel.
Removed cover just under steering wheel.
Set front of mower up on stand to ease access to phillips headed screw at bottom of shaft. Removed it.
Watch for washers and bushing on end of shaft.
Slide old shaft out top slide new one in, making sure bushing is in fitted slot then washer and screw, h
... Read moreousing under steer wheel then steer wheel bolted back on.
Raise front of mower no need to remove deck on mine. Find the phillips head screw at the bottom of the steering shaft. Heat it with a torch to soften the thread locking compound. Unscrew that one and three other 5/16s self tapping screws to free the shaft from the mower. Use a half inch deep well socket to remove the steering wheel from
... Read morethe shaft. Replace with new shaft and don\'t forget to use thread locking compound on the bottom screw. Thats it.
