12691338-1-M-MTD-738-0919B-Steering Shaft Assembly
Part Location Diagram of 738-0919B MTD Steering Shaft Assembly
See part H54 in the diagram
( Grid squares measure 1x1 inch )
12691338-1-S-MTD-738-0919B-Steering Shaft Assembly 12691338-2-S-MTD-738-0919B-Steering Shaft Assembly 12691338-3-S-MTD-738-0919B-Steering Shaft Assembly Part Location Diagram of 738-0919B MTD Steering Shaft Assembly

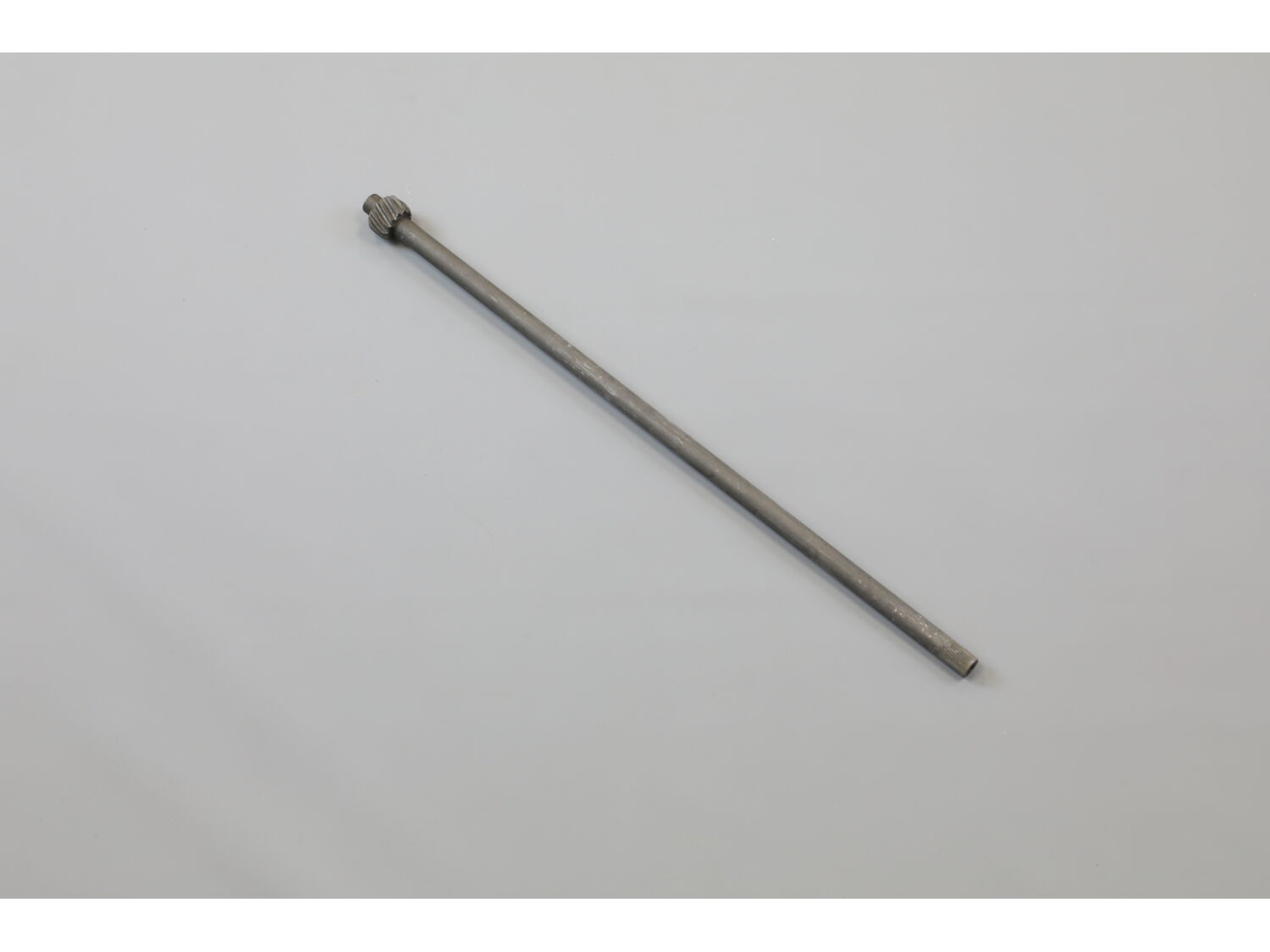

Steering Shaft Assembly 738-0919B

Manufactured by:
MTD
ERP Number:
ERP12691338
Part Number:
738-0919B
Original Equipment Manufacturer ?
$79.74
★★★★★
★★★★★
20 Reviews
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

1- 2 hours

(48 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Description Frequently Purchased Together Troubleshooting Reviews Questions & Answers Repair Instructions Model Cross Reference

Product Description

?

This genuine Steering Shaft is designed to fit all the Lawn Tractor models listed below. It features a 5/8" spline and measures 21.86 inches in length, ensuring a precise fit and reliable performance. A common reason for replacement is wear or stripping of the gear on the shaft, which can lead to steering issues. Before replacing the shaft, it’s recommended to inspect the Steering Gear Segment (Part #717-0622C) to determine if it also needs replacement. Replacing both components together can help restore smooth and accurate steering.

Frequently Purchased Together

?
Screw-shoulder
★★★★★
★★★★★
(1)
$7.23
In Stock
Minimum Quantity of 2 required
GEAR ASM-FRONT STR
$36.70
In Stock

Troubleshooting

This part works with the following brands:
  • MTD
  • Yard Machines
  • Craftsman
  • Yard Man
  • Troy-Bilt
  • Bolens
  • Murray
  • Husky
  • Ryobi
This part works with the following products:
  • Lawn Tractor
  • Lawn Mower
  • Lawn Tractor Accessories
Part# 738-0919B replaces these:
  • 738-0887
  • 738-0919
  • 738-0919A
  • 738-0919B
  • 753-04517
  • 938-0919
★

Customer Part Reviews

?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(20 Reviews)
Click to filter by ratings:
  • 5 stars
    20
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
  • 1
  • 2
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Bolens steering shaft
Exact replacement , easy to install
Robert - April 20, 2019
Verified Purchase
★★★★★
★★★★★
fot
Perfect
Guest - April 24, 2019
Verified Purchase
★★★★★
★★★★★
Great part
Fit perfectly
Guest - April 29, 2019
Verified Purchase
★★★★★
★★★★★
It works good
It was the right part along with the bushing on bottom of shaft, but was a bit hard to remove old shaft and bushing, but that was troy-bilts fault for not putting a bolt on the bottom end of the old shaft instead of a screw. New parts work great though. Ereplacement parts is great for mower parts. Thank you
Guest - May 3, 2019
Verified Purchase
★★★★★
★★★★★
Great service
Correct part, on time
Guest - June 19, 2019
Verified Purchase
★★★★★
★★★★★
Like new
Fast delivery and all the parts fit and the lawn looks great
Sharon - June 14, 2019
Verified Purchase
★★★★★
★★★★★
Great part
Was fast getting this and loved all the help I received to make sure I got it.
Harrison - August 8, 2019
Verified Purchase
★★★★★
★★★★★
Great service
I ordered the part Sunday night and within a a couple hours I had confirmation that the part was picked and ready for shipment. Thank you for your service.
Guest - August 12, 2019
Verified Purchase
★★★★★
★★★★★
Easy repair once you get the screw out the bottom
The part worked exactly like a new one.
James - August 22, 2019
Verified Purchase
★★★★★
★★★★★
Lawn mower
The parts fitted perfectly (3) they arrived in time and I did not miss cutting the grass so scheduled. thanks (ereplacementparts.com
Guest - September 24, 2019
Verified Purchase
  • 1
  • 2

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?
  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
I'm looking for a steering shaft 21 3/4 long for Troy built
Elmer For model number 13WX78KS011 - June 22, 2022

Hello Elmer, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is Part Number: 738-0919B. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

eReplacementParts Team
June 22, 2022

Did this question help you?
Thank you for voting!

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

1- 2 hours

(48 rated repairs) ?
  • 1
  • 2
  • 3
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Splines on bottom of steering shaft which engage with steering plate stripped.

Bill from Perry, Michigan

99 of 99 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set, Wrench set
Parts Used:
738-0919B
Removed mower deck. Raised machine to get access to large phillips head retaining screw in bottom of shaft. Removed it then, removed the steering wheel and stand off. Pulled shaft out and inserted new one. Reversed removable steps to install new shaft.
Did you find this story helpful?
Thank you for voting!

No steering due to stripped teeth on steering shaft gear

vern from oakland, Oregon

54 of 54 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers, Socket set
Parts Used:
738-0919B, 941-0656A
Deck needs to be disconnected and lowered to get better access to bolt in bottom end of shaft . It was a torx head in my machine. Remove bolt. Removed fuel tank mounting screws and tilt tank to side . Remove steering wheel plastic trim . Remove plastic cap over top of shaft. Remove bolt holding steering wheel to shaft. Remove steering whe el. Pull shaft upwards about half way and tilt to right side of motor and slide out of plastic guide at top. The plastic guide will flex enough to let the shaft slide out. Replace the bottom hex flange bearing. It just sets in a hex cutout in the frame. Install the new shaft . Coat the gear and bottom of shaft with grease. Coat the bottom bolt threads with anti-seize compound. Coat the top spline and steering wheel bolt threads with anti-seize compound. Install bolts and steering wheel plastic covers. Reattach deck. The front of the mower needs to be raised to let the deck drop to make it easier.
Read less
Did you find this story helpful?
Thank you for voting!

Steering gear worn

kevn from eat brunswick, New Jersey

54 of 54 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Socket set, Wrench (Adjustable), Wrench set
Parts Used:
738-0919B
Remove steering wheel then mount from dash remove screw at bottom of shaft you need big phillips bit like #4 on ratchet wrench pull out shaft and put new one in it would help to have new wire tie for gas tank working around tank is hard part of project reinstall mount and wheel and you\'re done
Did you find this story helpful?
Thank you for voting!

Steering shaft stripped.

George from Hoschton, Georgia

23 of 23 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Socket set
Parts Used:
738-0919B
1. Removed steering shaft (the most difficult part was loosening the shaft\'s lower end cap )
2. Unbolt and remove the steering wheel.
2. Ensure that the wheels are straight.
3. Install the shaft.
4. Install the shaft end cap
5. Line up the steering wheel and push on the shaft
6. Install and tighten th e steering wheel bolt.
Read less
Did you find this story helpful?
Thank you for voting!

Pinion gear, that\'s fixed to steering shaft, ate its self because of no grease.

david from chino valley, Arizona

16 of 16 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Screw drivers, Socket set, Wrench set
Parts Used:
738-0919B, 741-04124
Remove hood, fuel tank, steering wheel, inner dash support, phillips screw and washer from bottom end of steering shaft and plastic bushing/sleeve from inner dash. this will give you enough wiggle room to pull shaft and pinion out through bottom side. Poor design with the pinion machined onto the shaft. The holes in dash support are not l arge enough to let the shaft and pinion pass through. So its the hard way. So to reassemble just reverse the BS. I added a grease cup, full of grease to shaft just above rack and pinion and let gravity deliver the grease. A dirty dusty place and the grease may make it worse in the long run. Time will tell but it works fine and steers easier now than new. that\'s my wife\'s opinion and she the mower. Good luck
Read less
Did you find this story helpful?
Thank you for voting!

The gear on bottom end of the steering shaft stripped out because the front steering gear assembly became loose

Timothy from Madisonville, Kentucky

11 of 11 people found this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
More than 2 hours
Tools:
Screw drivers, Socket set, Wrench set
Parts Used:
617Z04094A, 738-0919B, 741-04124
No one would want to approach this repair as I did. I tried to do it without disassembling the entire steering console, however, eventually I disassemble it and things began moving quickly. I had a really hard time getting the bolt out of the bottom of the steering shaft and had to buy an impact driver to get it out.
Did you find this story helpful?
Thank you for voting!

Steering gear at the bottom of steering shaft worn out. Steering wheel would not turn wheels.

dennis from WALTERBORO, South Carolina

10 of 10 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers, Socket set
Parts Used:
738-0919B
Would have been a easy fix but had trouble loosening the bolt at the bottom of the shaft. Something that tight should not have a screwdriver slot instead of a bolt head. Trying to loosen it rounded out right away. So I had to take the deck out from under the mower and take it loose with vice grips.took a bit of time to get it broke loose. I put it back with a bolt as it should have been designed.the rest was fairly easy.took the gas tank loose and removed the top part of the dash ,the bolts were on the inside is why I had to take the gas tank loose. Just a bolt holding the steering wheel on. Reversed procedure to put it back together. Easy job if they had a bolt at the bottom of the shaft instead of one with a screwdriver head on there. If it had a bolt head I wouldn\'t have had to take the deck off.
Read less
Did you find this story helpful?
Thank you for voting!

Steering shaft gear worn

Libby from Binghamton, New York

10 of 10 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set
Parts Used:
738-0919B, 741-04124, 710-1309
Started at the bottom, Removed the screw that held in the bottom of the shaft. Went to the steering wheel, popped the plastic cover off and removed the bolt. Then needed to remove the plastic steering cover to get the gear thru. The bottom screw was very tight , needed to remove the deck, tip the machine over, brace it and then remove the screw. When I put it back together I did not need to tip it over. Put the deck back on. DONE Went easier than I thought.
Read less
Did you find this story helpful?
Thank you for voting!

Steering was loose and skipped teeth at times

ANDREW from Saltillo, Tennessee

9 of 9 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Screw drivers, Socket set, Wrench set
Parts Used:
783P08577A, 738-0919B, 741-04124, 948-0389, 941-0475, 750-04418, 617-04024A
Removed the gas tank for working space,then removed the dash and the shaft retainer to remove the steering wheel and shaft.
Replaced the gear and bushings and added the support plate that my early model did not have. This removed the play in the gear and allowed the steering shaft the fit tightly removing the looseness in the steeri ng ,when it was reassembled, it was better than new.
Read less
Did you find this story helpful?
Thank you for voting!

Riding lawn mower steering gear broke, stripped.

Eugene from Peralta, New Mexico

6 of 6 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set, Wrench (Adjustable)
Parts Used:
735-0239A, 738-0919B, 948-0389, 941-0656A, 736-0187, 710-1309
(1) Took front cover and dash off.
(2) Dropped Mower blades/cover.
(3) Removed Hex Patch Bolt from Steering Shaft. Had to use vice-grips.
(4) Removed steering shaft.
(5) Replaced all parts in reverse order.
(6) Aligned steering wheel with front wheels.
(7) Started and tested steering.
Did you find this story helpful?
Thank you for voting!
  • 1
  • 2
  • 3

Model Cross Reference

This part works with the following models:
ERP Number: ERP12691338
Manufacturer Part Number: 738-0919B
Brand Model Number Description
MTD 132-666F190 Lawn Mower - MTD Lawn Mower Model 132-666F190 (132666F190, 132 666F190) Parts
MTD 132-686G190 Lawn Mower - MTD Lawn Mower Model 132-686G190 (132686G190, 132 686G190) Parts
MTD 135G695G019 Lawn Tractor - Lawn Tractor
Yard Man 1362694G401 Lawn Tractor - Lawn Tractor
Yard Man 1362694G701 Lawn Tractor - Lawn Tractor
Yard Man 1363694H401 Lawn Tractor - Lawn Tractor
Yard Man 1363694H701 Lawn Tractor - Lawn Tractor
Yard Man 136A694F401 Lawn Tractor - Lawn Tractor
Yard Man 136A694F701 Lawn Tractor - Lawn Tractor
MTD 136D686G190 Lawn Mower - MTD Lawn Mower Model 136D686G190 Parts
MTD 136D696G190 Lawn Mower - MTD Lawn Mower Model 136D696G190 Parts
MTD 136E660F009 Lawn Tractor - Lawn Tractor
MTD 136E660F709 Lawn Tractor - Lawn Tractor
MTD 136E670G145 Lawn Tractor - Lawn Tractor
MTD 136G670G111 Lawn Mower - Lawn Mower
MTD 136G673G054 Lawn Tractor - Lawn Tractor
MTD 136G673G105 Lawn Tractor - Lawn Tractor
MTD 136G673G754 Lawn Tractor - Lawn Tractor
MTD 136G675G147 Lawn Tractor - Lawn Tractor
MTD 136G679H000 Lawn Tractor - Lawn Tractor
MTD 136G679H002 Lawn Tractor - Lawn Tractor
MTD 136G679H009 Lawn Tractor - Lawn Tractor
MTD 136G679H016 Lawn Tractor - Lawn Tractor
MTD 136G679H019 Lawn Tractor - Lawn Tractor
MTD 136G679H022 Lawn Tractor - Lawn Tractor
MTD 136G679H023 Lawn Tractor - Lawn Tractor
MTD 136G679H026 Lawn Tractor - Lawn Tractor
MTD 136G679H029 Lawn Tractor - Lawn Tractor
MTD 136G679H033 Lawn Tractor - Lawn Tractor
MTD 136G679H054 Lawn Tractor - Lawn Tractor
