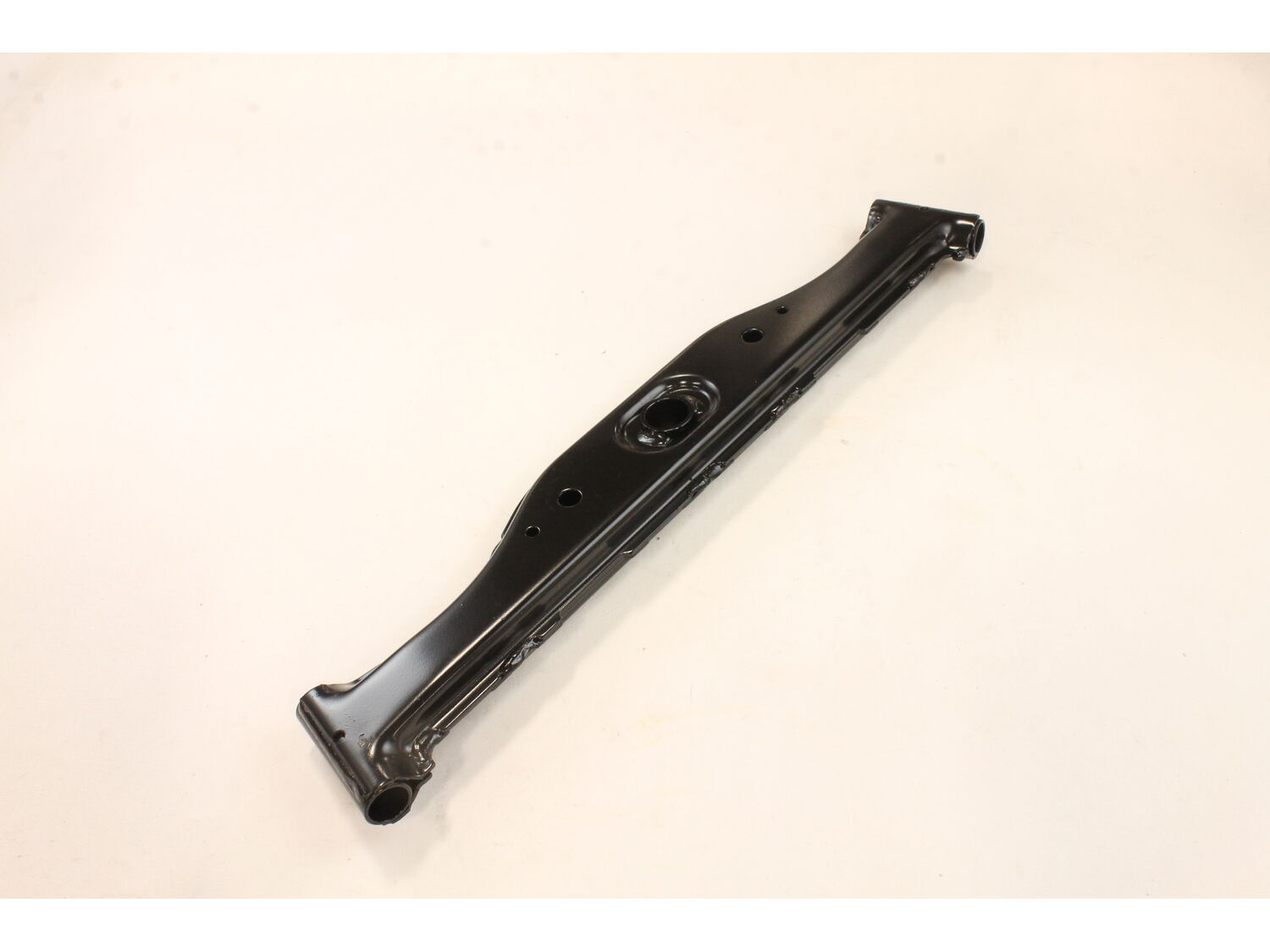

This authentic manufacturer-supplied part is specially designed for use with riding lawn mowers and garden tractors. It is a special component that wheel axles attach to. This is an identical replacement for a missing or a damaged axle assembly front that was installed on a new unit. A wrench set will be needed to perform this repair. Make sure to refer to the owner\\\'s manual and the appropriate diagrams for your model to ensure the proper repair procedure. Note, this high-quality axle assembly front is made of durable metal and is sold individually.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Part fit perfect...was easy to order
Good to go....took awhile to install...but all good
Guest - November 17, 2020
Verified Purchase
★★★★★
★★★★★
fit perfectly lawnmower working like new again
worked great, thanks
Stephen - July 3, 2021
Verified Purchase
★★★★★
★★★★★
Front axle replacement
The part that I ordered was exactly the part that I needed and came to me in a reasonable time. Thank You
Guest - July 22, 2019
Verified Purchase
★★★★★
★★★★★
Bought for a handicapped neighbor
The part came so fast our neighbor was so excited, he mows a few lawns and it’s his mode of transportation so being broke down was a big inconvenience. Thank you for being so helpful and shipping it to us so quickly. We will be telling all our friends and family about your company and what a friendly customer service you have,Thank you again Jeannette Carpenter
Guest - September 24, 2019
Verified Purchase
★★★★★
★★★★★
It was the right Parr and didn't take 2 or 3 weeks
Good
John - September 17, 2021
Verified Purchase
★★★★★
★★★★★
nice part good quality
shipping was some what slow I'm sure do to covid but not too bad
Guest - October 5, 2021
Verified Purchase
★★★★★
★★★★★
Axle Repair
Though the model # for my tractor was not in the search window they verified that is was the correct part. When it came it was an exact replacement, and in a couple of hours I was back in business. It works great. Thanks
Guest - October 12, 2021
Verified Purchase
★★★★★
★★★★★
Easy fit and looks stronger then the original
Perfect match up and fast shipping
Carl - July 11, 2023
Verified Purchase
★★★★★
★★★★★
Exact replica and direct replacement
Part came as it should. No issues.
Guest - August 22, 2023
Verified Purchase
★★★★★
★★★★★
Fits discontinued Ariens 19 hp riding mower axle.
This axle was a perfect fit for my Ariens mower which they claim is now discontinued. Very happy with it and it shipped quickly. Very affordable fix and mower running in a straight line again.
Quintino - September 1, 2024
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Remove left and right wheels. Remove steering linkage. Remove center bolt on axle. Drop the front axle assembly(4 bolts on each side) Bolts are located on frame in line with the wheel spindle. Remove bolts holding the front axle assembly. Remove bushing in center of axle and place in new axle. Grease around center bushing and Install
... Read more new axle in front wheel assembly by placing center axle bolt through front and back of axle assembly. Bolt front assembly back together.Place assembly back in frame and secure with 4 bolts on each side. Clean off spindles and degrease. Reinsert spindles for wheels. Clean off spindle where wheel goes, re-grease, Reinstall wheels. Make sure to grease everything as you go. Once reassembled grease front spindles with new grease.
Read less
Did you find this story helpful?
Thank you for voting!
Front axle was bent out of alignment and front tires were worn
Had to remove front axle and front assembly both tires spindles left and right then had to break down each tire and inflat it reinstall lube the hardest was inflating the tires very tuff lol all in was not bad of a repair just wish the axle was stronger made . And that you could make a toe adjustments better then bending things . After t
... Read morehat changed oil filter. Services mower
Read less
Did you find this story helpful?
Thank you for voting!
Lawn Tractors front axle had started to bent on the left side causing it to eventually crack at a weak point.
Elevated front of mower to remove the Tie Rod from both Left and Right Spindle Assemblies and then both Spindle Assemblies from old Axle. Next removed 5/8-11 bolt and lock nut that fastens the Front Axle to the Front and Rear Axle Braces. Next removed bolts that hold the front Axle Brace along with Front Chassis Suspension Bracket to remo
... Read moreve Axle. Next Reinstalled the new Front Axle with new Axle Brace Spacer and Axle Spacer back onto the mower in the reverse order of disassembling. Replaced all Bearings for both Left and Right Spindles and installed onto the new Axle. Next installed new Draglink Bushing to the right Spindle and installed Tie Rod. Remember to grease both the Axle Spindles and Both Tire Spindles.
Removed the broken front axle
Disconnected the muffler .
Disconnected the mower deck.
Installed the new axle and bushings.
Replaced the muffler and reconnected the mower deck.
Removed broken assembled and installed the new Axle Weldment Assembly. Had to remove the exhaust muffler before removing Axle Weldment Assembly bolt after jacking up the lawn mower. Installed new Axle Weldment Assembly and greased King Pins.
Did you find this story helpful?
Thank you for voting!
Axle as bent
James from Louisville, Kentucky
2 of 2 peoplefound this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
1.Raised he mower put jack stands under mower
2.Removed spindles
3.Removed steering gear plate
4.Took out carter pin from mower deck plate unhooked linkage
5 Took axle bolt out
6.Removed bent axle
7.Put new bushings in axle put axle in put center bolt in and tightened
8.Put steering gear plate on
... Read more and tightened
9.Put spindles back in axle
10.Greased well
11.Done
Read less
Did you find this story helpful?
Thank you for voting!
Tractor steering not working well
frank from East Moriches, New York
2 of 2 peoplefound this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
First I took a good look at what I needed to do to remove the front axle. Removed the
engine hood,front guard, and muffler. Jacked up the front of tractor and blocked it up careful to keep blocks out of the way of things I needed to remove and removed the jack.
Took off tie rod, steering rod(?), and one or two other rods con
... Read morenecting to the front wheel
assembly. Removed three bolts running through the axle and the two front bolts on each side that went through the frame to hold the axle assembly in place so I could release the axle from the tractor and pull the whole assembly out from under the tractor.
To remove the wheels from the axle I had to pry off the black caps which had hardened with age, destroying their grease sealing ability. NOTE: check your caps and maybe save yourself some time by ordering them when ordering new axle. Next step was removing the clip rings to be able to slide the wheels out of the axle. Replace the wheels into the new axle making sure you have washers, etc in the right order and getting the snap rings back on to hold everything together, then replacing the grease caps. Up to this point I had been able to do everything myself but now had to get my wife to hold the other end of the axle to help me get the axle aligned in the holder and get the center bolt back in and the nut started on it. Don\'t tighten it completely because you\'ll need some play to get the metal part that fits in some slots under the axle to get seated correctly. You will see what I mean as you take things apart. From there it is just re-assembly. When I was done I got the grease gun out and filled the new axle. I am fortunate to have a shop and spread this job out over 2 evenings so I\'m not sure how long it actually took me(since I didn\'t know what I was doing).
