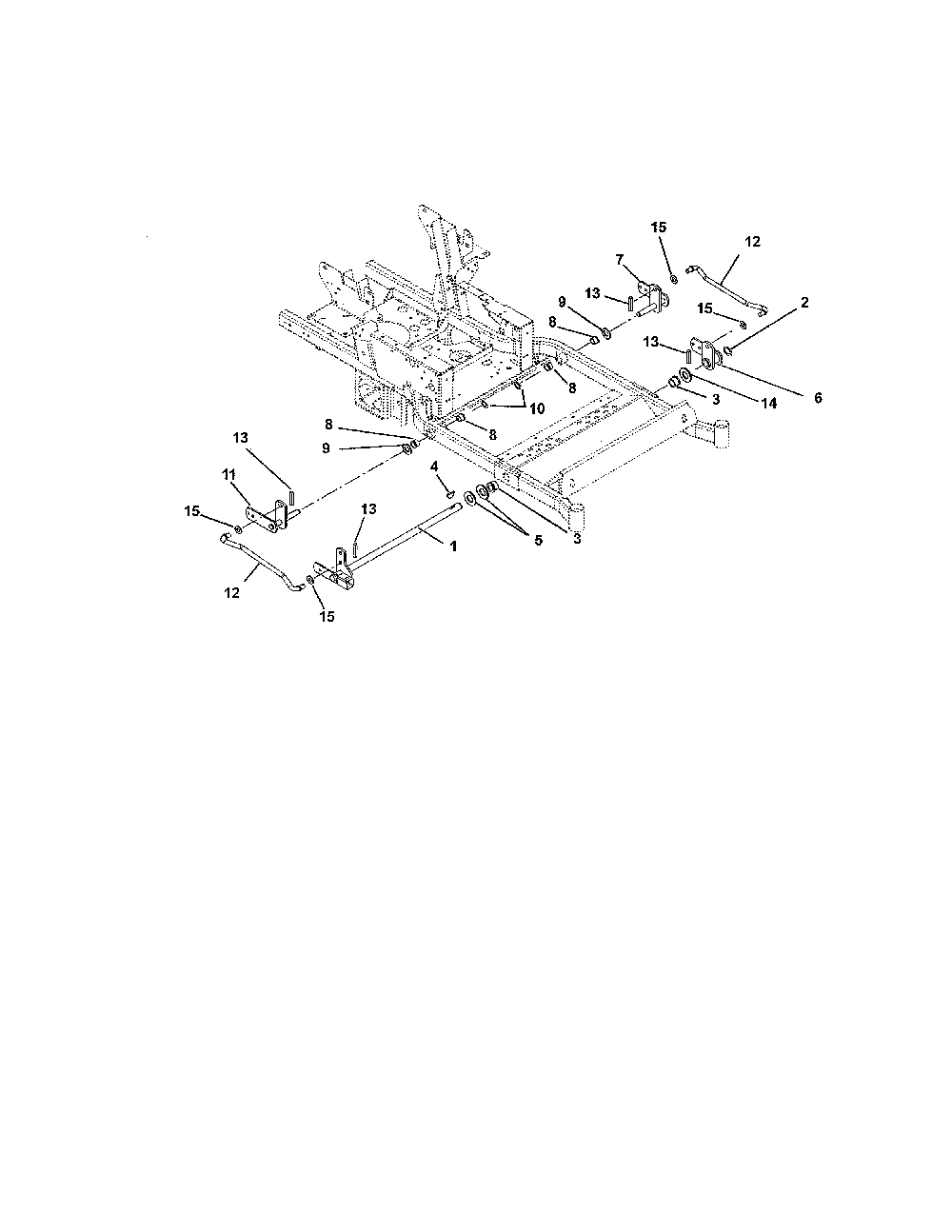

Part Location Diagram of 09289800 Ariens Weldment, Lift Arm-Front
See part 6 in the diagram
Part Location Diagram of 09289800 Ariens Weldment, Lift Arm-Front

Weldment, Lift Arm-Front 09289800

Manufactured by:
Ariens
ERP Number:
ERP8809689
Part Number:
09289800
Original Equipment Manufacturer ?
$190.88
Special Order

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Gravely
  • Ariens
This part works with the following products:
  • Lawn Tractor
  • Lawn Mower

Model Cross Reference

This part works with the following models:
ERP Number: ERP8809689
Manufacturer Part Number: 09289800
Brand Model Number Description
Gravely 890016 Lawn Tractor Accessories - 890016 (000101 - ) 60 Inch Deck Pm 320
Gravely 890017 Lawn Tractor Accessories - 890017 (000101 - ) 72 Inch Deck Pm 320
Gravely 992036 Lawn Tractor - 992036 (001000 - 001499) 27 Hp Kawasaki 60 Inch Deck
Gravely 992037 Lawn Tractor - 992037 (001000 - 001499) 27 Hp Kawasaki 72 Inch Deck
Gravely 992038 Lawn Tractor - 992038 (001000 - 001499) 31 Hp Daihatsu 60 Inch Deck
Gravely 992039 Lawn Tractor - 992039 (001000 - 001499) 31 Hp Daihatsu 72 Inch Deck
Gravely 992042 Lawn Tractor - 992042 (002501 - 003999) Pm144z, 19hp Kawasaki, 44 Inch Deck, Hyd. Lift
Gravely 992043 Lawn Tractor - 992043 (002501 - 003999) Pm148z, 21hp Kawasaki, 48 Inch Deck, Hyd. Lift
Gravely 992044 Lawn Tractor - 992044 (002501 - 003999) Pm152z, 23hp Kawasaki, 52 Inch Deck, Hyd. Lift
Gravely 992045 Lawn Tractor - 992045 (000101 - 001499) 25hp 52 Inch Deck
Gravely 992046 Lawn Tractor - 992046 (004001 - 004500) 25hp 60 Inch Deck
Gravely 992047 Lawn Tractor - 992047 (000101 - 001499) 27hp 60 Inch Deck
Gravely 992048 Lawn Tractor - 992048 (001500 - 004000) 28hp 60 Inch Deck
Gravely 992049 Lawn Tractor - 992049 (001500 - 004000) 25hp 72 Inch Deck
Gravely 992051 Lawn Tractor - 992051 (002000 - 002500) 23 Hp Kawasaki 60 Inch Deck
Gravely 992052 Lawn Tractor - 992052 (004001 - 004500) 27hp 52 Inch Deck
Gravely 992053 Lawn Tractor - 992053 (001500 - 004000) 27hp 72 Inch Deck
Gravely 992054 Lawn Tractor - 992054 (002000 - 002500) 25 Hp Kohler 52 Inch Deck
Gravely 992055 Lawn Tractor - 992055 (004000 - ) Pm160z, 25hp Kohler, 60 Inch Deck, Hyd. Lift
Gravely 992056 Lawn Tractor - 992056 (002500 - 004999) Pm34z, 15hp Kawasaki, 34 Inch Deck
Gravely 992058 Lawn Tractor - 992058 (001501 - ) Pm260z, 27hp Kawasaki, 60 Inch Deck, Hyd. Lift
Gravely 992059 Lawn Tractor - 992059 (000500 - 001500) Pm272z, 27hp Kawasaki, 72 Inch Deck, Hyd. Lift
Gravely 992060 Lawn Tractor - 992060 (000500 - 001500) Pm260z, 27hp Daihatsu, 60 Inch Deck, Hyd. Lift
Gravely 992061 Lawn Tractor - 992061 (001501 - ) Pm272z, 31hp Daihatsu, 72 Inch Deck, Hyd. Lift
Ariens 992062 Lawn Mower - Ariens Lawn Mower Model 992062/000101 Parts
Ariens 992063 Lawn Mower - Ariens Lawn Mower Model 992063/000101 Parts
Gravely 992064 Lawn Tractor - 992064 (000500 - 004999) Pm144z, 17hp Kawasaki, 44 Inch Deck, Hyd. Lift
Gravely 992065 Lawn Tractor - 992065 (000101 - 001499) Pm 44z 17hp Kawasaki, 44 Inch Deck
Gravely 992066 Lawn Tractor - 992066 (000500 - 004000) 25hp 52 Inch Deck
Gravely 992067 Lawn Tractor - 992067 (004501 - ) 25hp 60 Inch Deck
Weldment, Lift Arm-Front
$ 190.88
Special Order
✖
