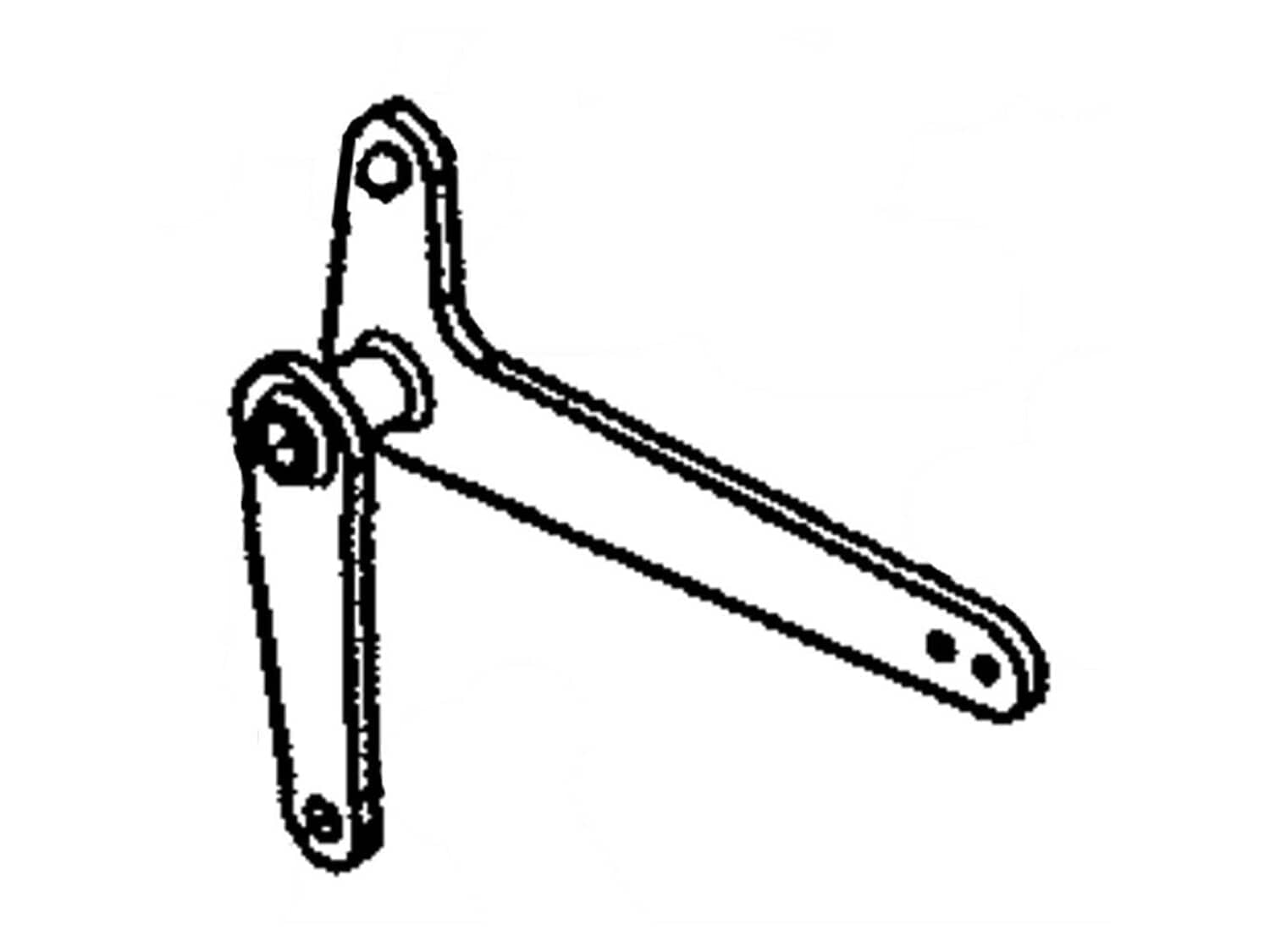

Part Location Diagram of 683Z05301 MTD PIVOT ASM-DIFF PED
See part 29 in the diagram
( Grid squares measure 1x1 inch )

PIVOT ASM-DIFF PED 683Z05301

Manufactured by:
MTD
ERP Number:
ERP18457155
Part Number:
683Z05301
Original Equipment Manufacturer ?
$94.24
Special Order

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Cub Cadet
  • Troy-Bilt
  • MTD
  • Craftsman
This part works with the following products:
  • Lawn Tractor
Part# 683Z05301 replaces these:
683-05301, 683Z05301,

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Model Cross Reference

This part works with the following models:
ERP Number: ERP18457155
Manufacturer Part Number: 683Z05301
Brand Model Number Description
Troy-Bilt 14A7A5BA011 Lawn Tractor - Super Bronco 54 Gt Fab
Troy-Bilt 14A7A5KA011 Lawn Tractor - Super Bronco 54 Gt Fab
MTD 14A7A5ZQ099 Lawn Tractor - Garden Tractor
Craftsman 247270480 Lawn Tractor - Lawn Tractor
Craftsman 247270481 Lawn Tractor - Tractor
Cub Cadet XT1-GT54 Lawn Tractor - Xt1-Gt54 Kh Fab Tractor (14aqa5ca009) (2017)
Cub Cadet XT1-GT54KH Lawn Tractor - Xt1-Gt54 Kh Fab Tractor (14aqa5ca010) (2017)
Cub Cadet XT2-GX54 Lawn Tractor - Xt2-Gx54 Kh Fab Tractor (14aqa6ca210) (2017)
Cub Cadet XT2-GX54D Lawn Tractor - Xt2-Gx54d Kw Fab (14aha6tma10) (2021)
Cub Cadet XT2-GX54DKH Lawn Tractor - Xt2-Gx54d Kh Fab (14aqa6tma10) (2022)
Cub Cadet XT2-GX54DKW Lawn Tractor - Xt2-Gx54d Kw Fab (14aha6tma10) (2021)
Cub Cadet XT2-GX54KH Lawn Tractor - Xt2-Gx54 Kh Fab (14c7a6ca010) (2019)
