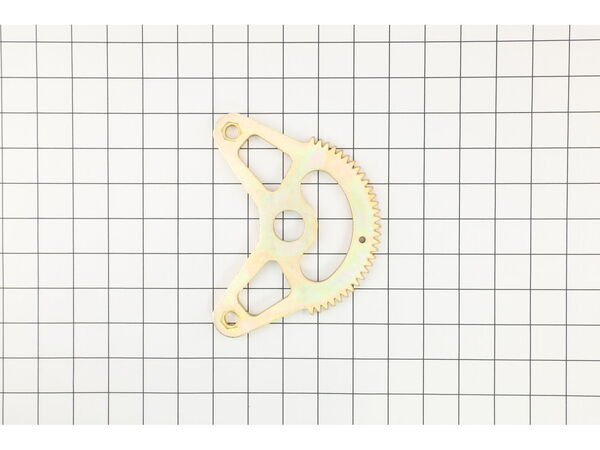

16411102-1-M-MTD-717-05225C-Steering Gear Segment
Part Location Diagram of 717-05225C MTD Steering Gear Segment
See part 9 in the diagram

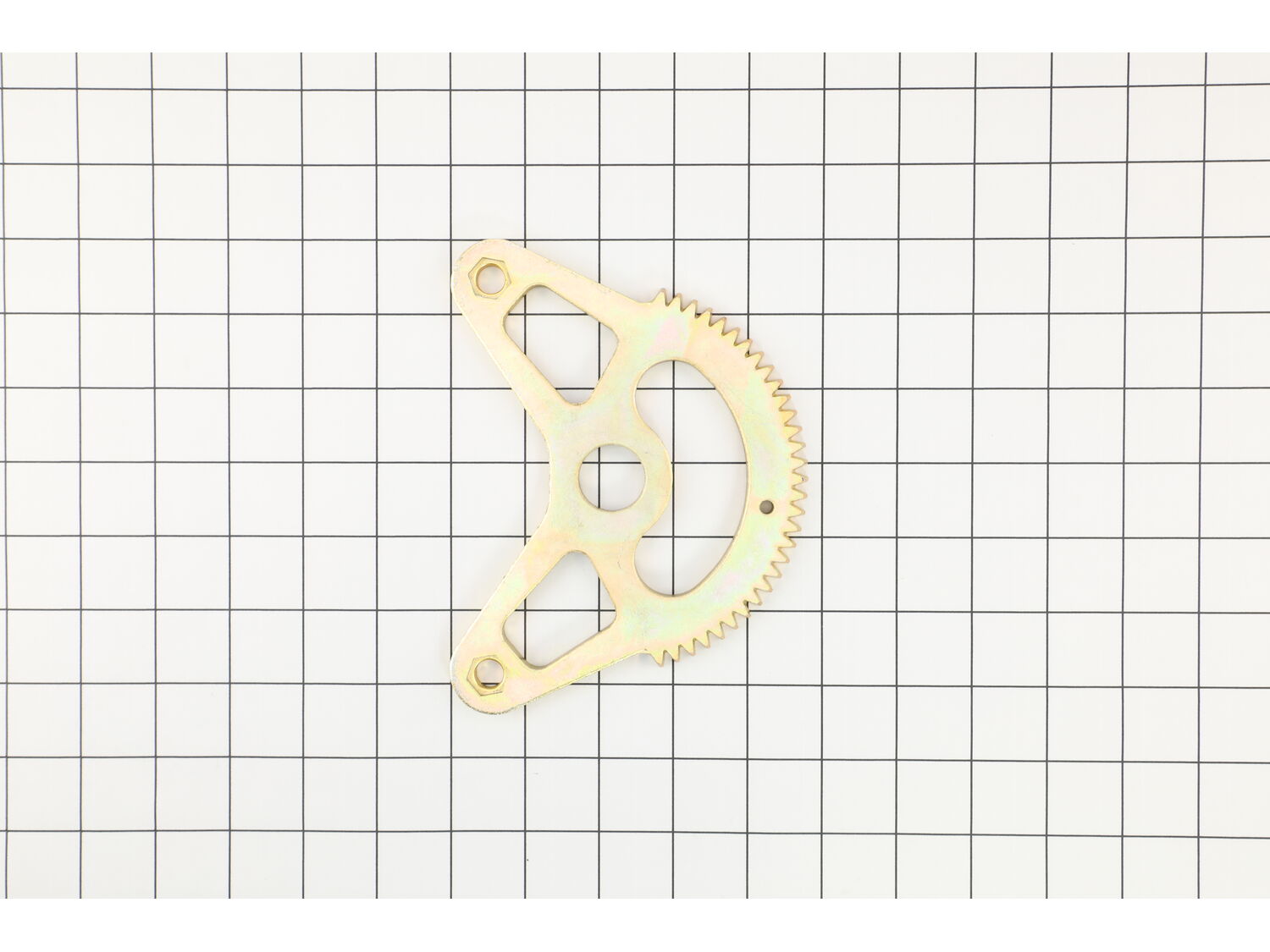

( Grid squares measure 1x1 inch )

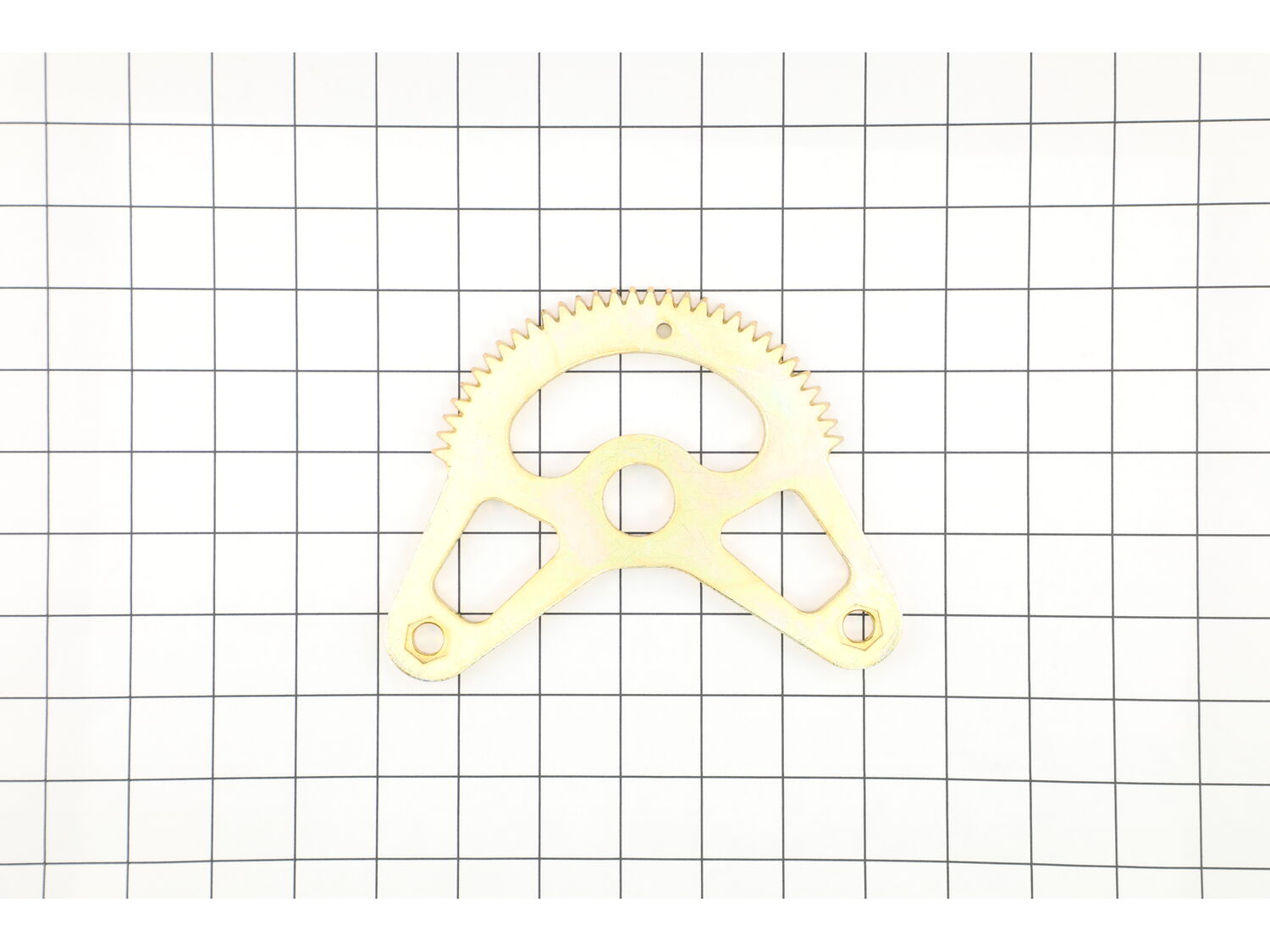

16411102-1-S-MTD-717-05225C-Steering Gear Segment 16411102-2-S-MTD-717-05225C-Steering Gear Segment Part Location Diagram of 717-05225C MTD Steering Gear Segment

Steering Gear Segment 717-05225C

Manufactured by:
MTD
ERP Number:
ERP16411102
Part Number:
717-05225C
Original Equipment Manufacturer ?
$93.45
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Cub Cadet
  • MTD
  • Craftsman
  • Troy-Bilt
This part works with the following products:
  • Lawn Tractor
  • Lawn Mower
Part# 717-05225C replaces these:
717-05225, 717-05225A, 717-05225B, 717-05225C, 717-05225C-CM, 717E05225B,

Model Cross Reference

This part works with the following models:
ERP Number: ERP16411102
Manufacturer Part Number: 717-05225C
Brand Model Number Description
Troy-Bilt 1171042 Lawn Tractor - 1171042 - Lawn Tractors
MTD 131PA1ZS099 Lawn Tractor - Lawn Tractor
MTD 132PA1ZS099 Lawn Tractor - Lawn Tractor
MTD 13AAA1ZW099 Lawn Tractor - Front-Engine Lawn Tractor
MTD 13ATA1ZT099 Lawn Tractor - Front-Engine Lawn Tractor
Cub Cadet 13WQA4CN010 Lawn Mower - Xt-2 LX46 Fab
Cub Cadet 13WVA1CS210 Lawn Mower - LT42
Troy-Bilt 14A7A3KA066 Lawn Tractor - Super Bronco Gt 54 Fab Tractor (14a7a3ka066 ) (2016)
MTD 14A7A5ZQ099 Lawn Tractor - Garden Tractor
MTD 14B7A3ZQ099 Lawn Tractor - Front-Engine Lawn Tractor
Craftsman 247204380 Lawn Tractor - T7800 Lawn Tractor
Craftsman 247270380 Lawn Tractor - T7800 Lawn Tractor
Craftsman 247270381 Lawn Tractor - Tractor
Craftsman 247270460 Lawn Tractor - G8300 Garden Tractor
Craftsman 247270480 Lawn Tractor - G8200 Garden Tractor
Craftsman 247270481 Lawn Tractor - Tractor
Craftsman 247273330 Lawn Tractor - T3100 Lawn Tractor
Craftsman 247273340 Lawn Tractor - Tractor
Craftsman 247273910 Lawn Mower - T2800 Lawn Tractor
Troy-Bilt 511147 Lawn Tractor - 511147 - Lawn Tractors
Troy-Bilt 511148 Lawn Tractor - 511148 - Lawn Tractors
MTD CGT5426 Lawn Tractor - Garden Tractor
MTD CSLT5424 Lawn Tractor - Lawn Tractor
MTD CYT4220 Lawn Tractor - Lawn Tractor
MTD CYT4220SE Lawn Tractor - Lawn Tractor
MTD CYT4622SE Lawn Tractor - Lawn Tractor
MTD CYT5023SE Lawn Tractor - Lawn Tractor
Cub Cadet XT-2 Lawn Mower - LX46 Fab
Cub Cadet XT1-GT50 Lawn Tractor - Xt1-Gt50 Kh (14aqa3cq010) (2018)
Cub Cadet XT1-GT50KH Lawn Tractor - Xt1-Gt50 Kh (14aqa3cq256) (2018)
Steering Gear Segment
$ 93.45
In Stock
✖
Stock Status
✖
Mail-In Recycling Rebate

Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

✖
