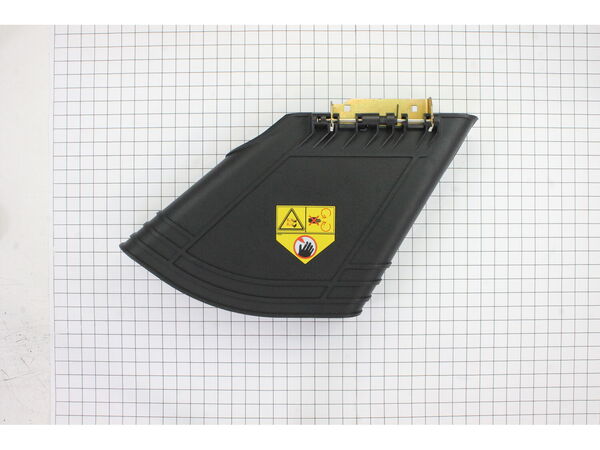

This is a genuine replacement part sourced from the original manufacturer for use with lawn mowers and lawn tractors made by MTD, Yard Man, Yard Machines, and Troy-Bilt. The chute assembly attaches to the deck and is made out of plastic. When replacing this part an adjustable wrench might be required during the installation process. It will need to be replaced if it breaks. This part is available as an individual replacement part.
1. Loosen two nuts and remove.
2. Place Chute on bolts.
3. Replace nuts and tighten.
Did you find this story helpful?
Thank you for voting!
Gear on the bottom of the steering shaft stripped after the upper and lower bearings wore and allowed shaft to no longer contact sector gear as designed
Removed hood, to keep from shutting at the most inopportune time
Disassembled dash after removing the steering wheel
Removed screw from bottom of the steering shaft
Removed shaft and both worn bearings
Reassembled in reverse order with new bearings and steering shaft
Discharge chute was not exact fit,
... Read morerequires drilling 2 new holes in the deck and new mounting bolts
1. removed old chute and bracket.
2. Lined up new bracket and found the bolt/mounting holes didn\'t line up.
3. Drilled two new holes in the deck.
4. Mounted he new chute using the new holes.
5. Fired up and cut 2 1/2 acres with no problem.
6. Cleaned deck and double checked new mounting bolts.
7. One m
... Read moreore small job done.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP11812380
Manufacturer Part Number: 631-05191A
