18464984-1-M-MTD-717-05156C-GEAR-STRG SEGMENT
Part Location Diagram of 717-05156C MTD GEAR-STRG SEGMENT
See part 9 in the diagram
( Grid squares measure 1x1 inch )
18464984-1-S-MTD-717-05156C-GEAR-STRG SEGMENT Part Location Diagram of 717-05156C MTD GEAR-STRG SEGMENT

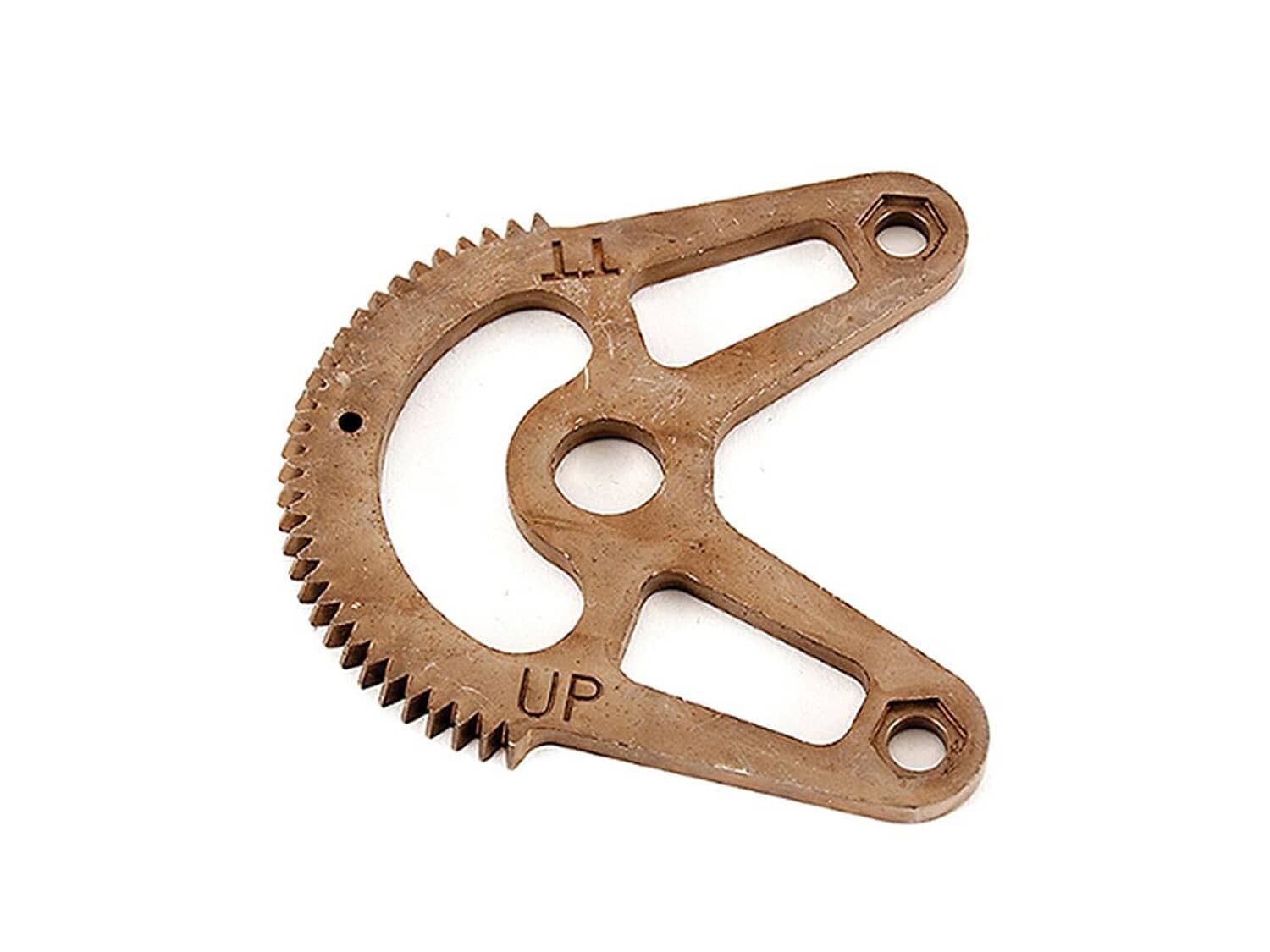

GEAR-STRG SEGMENT 717-05156C

Manufactured by:
MTD
ERP Number:
ERP18464984
Part Number:
717-05156C
Original Equipment Manufacturer ?
$104.42
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Craftsman
  • MTD
This part works with the following products:
  • Lawn Tractor
Part# 717-05156C replaces these:
717-05156, 717-05156A, 717-05156B, 717-05156C, 717-05156C-CM, 717-05406, 717E05156B, 917-05406,

Model Cross Reference

This part works with the following models:
ERP Number: ERP18464984
Manufacturer Part Number: 717-05156C
Brand Model Number Description
MTD 13A7A1ZW099 Lawn Tractor - Lawn Tractor
MTD 13AJA1ZS099 Lawn Tractor - Front-Engine Lawn Tractor
MTD 13APA1ZS099 Lawn Tractor - Lawn Tractor
MTD 13AQA1ZT099 Lawn Tractor - Lawn Tractor
MTD 13AQA1ZT299 Lawn Tractor - Lawn Tractor
MTD 13B7A1ZW099 Lawn Tractor - Lawn Tractor
MTD 13BQA1ZT099 Lawn Tractor - Lawn Tractor
MTD 13BQA1ZT299 Lawn Tractor - Lawn Tractor
MTD 14A7A3ZQ099 Lawn Tractor - Garden Tractor
MTD 14A7A3ZW099 Lawn Tractor - Garden Tractor
MTD 14B7A3ZW099 Lawn Tractor - Garden Tractor
MTD 14B7A3ZW299 Lawn Tractor - Front-Engine Lawn Tractor
Craftsman 247202420 Lawn Tractor - Tractor
Craftsman 247204400 Lawn Tractor - Turn Tight Riding Mower
Craftsman 247204420 Lawn Tractor - Turn Tight Riding Mower
Craftsman 247204430 Lawn Tractor - Turn Tight Riding Mower
Craftsman 247204440 Lawn Tractor - Turn Tight Riding Mower
Craftsman 247204450 Lawn Tractor - Turn Tight Riding Mower
Craftsman 247270400 Lawn Tractor - Tractor
Craftsman 247270420 Lawn Tractor - Lawn Tractor
Craftsman 247270421 Lawn Tractor - Tractor
Craftsman 247270440 Lawn Tractor - Lawn Tractor
Craftsman 247270441 Lawn Tractor - Tractor
Craftsman 247270490 Lawn Tractor - Lawn Tractor
Craftsman 247270491 Lawn Tractor - T8200 Lawn Tractor
Craftsman 247270550 Lawn Tractor - Turn Tight Tractor
Craftsman 247270551 Lawn Tractor - G8400 Garden Tractor
Craftsman 247270560 Lawn Tractor - Tractor
Craftsman CMXGRAM1130043 Lawn Tractor - T210 Lawn Tractor
Craftsman CMXGRAM1130044 Lawn Mower - Riding Mower
