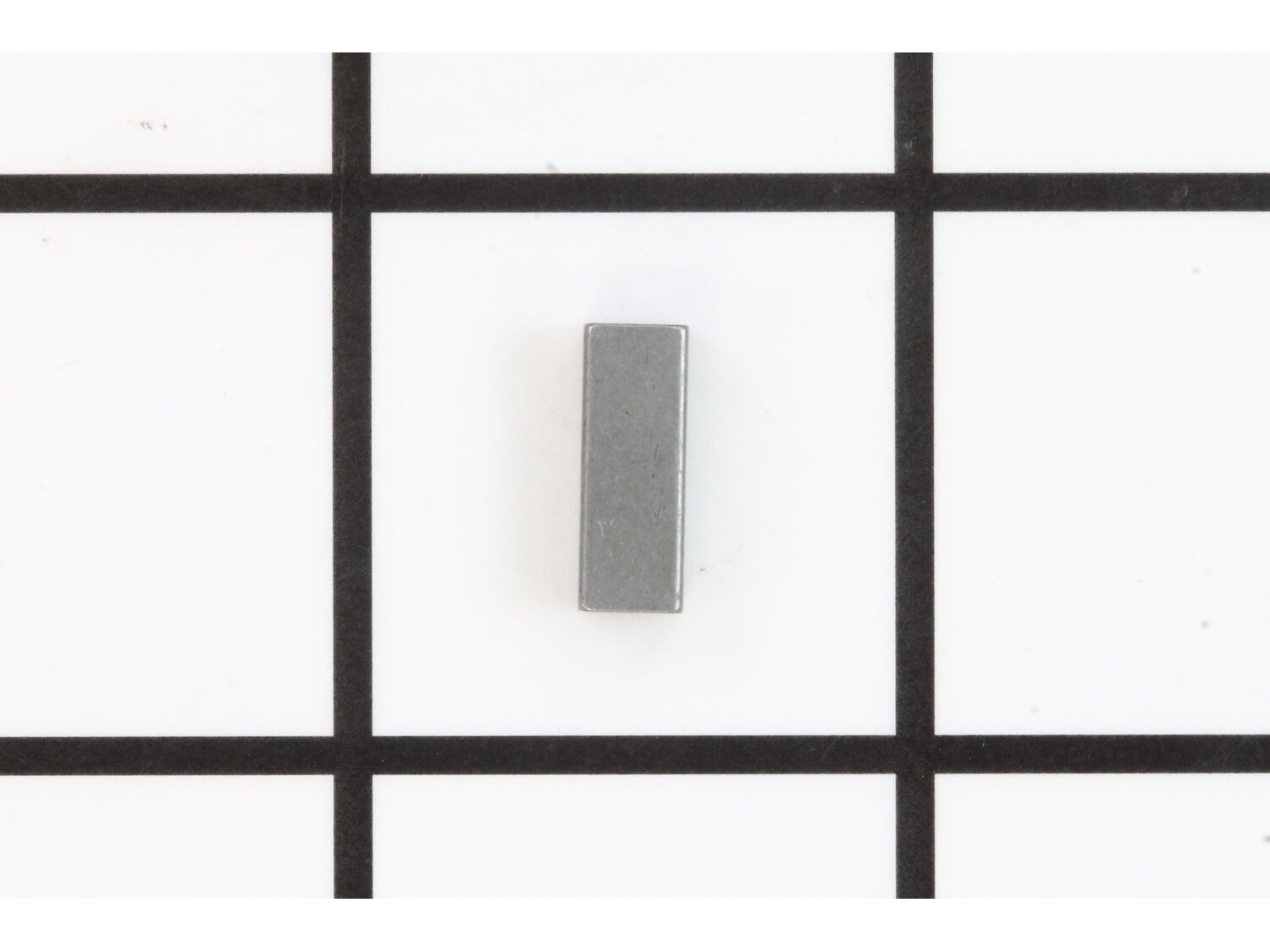

9274077-1-M-Toro-27-6300-Key-Square
Part Location Diagram of 27-6300 Toro Key-Square
See part M-26 in the diagram
( Grid squares measure 1x1 inch )
9274077-1-S-Toro-27-6300-Key-Square Part Location Diagram of 27-6300 Toro Key-Square

Key-Square 27-6300

Manufactured by:
Toro
ERP Number:
ERP9274077
Part Number:
27-6300
Original Equipment Manufacturer ?
$10.29
Special Order

A Bit Difficult

1- 2 hours

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Toro
  • Exmark
This part works with the following products:
  • Lawn Mower
  • Lawn Tractor
Part# 27-6300 replaces these:
1-807276, 27-6300,

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

1- 2 hours

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Badly bent blade tetainer

LYNN from GRAND PRAIRIE, Texas

0 of 1 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Socket set
Parts Used:
27-6300, 52-2170-03
1 Disconnected spark plug
2 Remove blade shield that protects the self propelled belt
3 Attach slide hammer with bearing puller attached to the slides of the blade retainer and slide the hammer back and forth until the retainer releases. About 3 or 4 slides required - retainer and creased key separated
4 Install key re tainer with new insert - lightly grease the parts inserting key into the retainer after inserting the metal insert.
5 Reassemble removed parts and pull of the starter rope to ensure the crank shaft and blade retainer operate together
6 Reinstall spark plug and start engine


Read less
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP9274077
Manufacturer Part Number: 27-6300
Brand Model Number Description
Toro 100-2863 Cultivator - Kawasaki Zone Start Conversion Kit
Toro 16009 Lawn Mower - Whirlwind Ii Lawnmower
Toro 16035 Lawn Mower - Whirlwind Ii Lawnmower
Toro 16067 Lawn Mower - Whirlwind Ii Lawnmower
Toro 16073 Lawn Mower - Whirlwind Lawnmower
Toro 16077 Lawn Mower - Lawnmower
Toro 16106 Lawn Mower - Lawnmower
Toro 16113 Lawn Mower - Whirlwind Ii Lawnmower
Toro 16155 Lawn Mower - Whirlwind Ii Lawnmower
Toro 16165 Lawn Mower - Lawnmower
Toro 16169 Lawn Mower - Lawnmower
Toro 16173 Lawn Mower - Whirlwind Lawnmower
Toro 16240 Lawn Mower - Lawn Mower
Toro 16255 Lawn Mower - Whirlwind
Toro 16264 Lawn Mower - Whirlwind Ii Lawnmower
Toro 16268 Lawn Mower - Whirlwind Lawnmower
Toro 16273 Lawn Mower - Whirlwind Lawnmower
Toro 16277 Lawn Mower - Whirlwind Lawnmower
Toro 16287 Lawn Mower - Whirlwind Ii Lawnmower
Toro 16297 Lawn Mower - Lawnmower
Toro 16300 Lawn Mower - Lawnmower
Toro 16310 Lawn Mower - Lawnmower
Toro 16320 Lawn Mower - Walk-Behind Mower
Toro 16360 Lawn Mower - Whirlwind
Toro 16370 Lawn Mower - Whirlwind Ii Lawnmower
Toro 16380 Lawn Mower - Whirlwind Ii Lawnmower
Toro 16390 Lawn Mower - Whirlwind Pow'r
Toro 16655 Lawn Mower - Lawnmower
Toro 20440 Lawn Mower - Lawnmower
Toro 20474 Lawn Mower - 20474/Serial: 5000001-5999999
