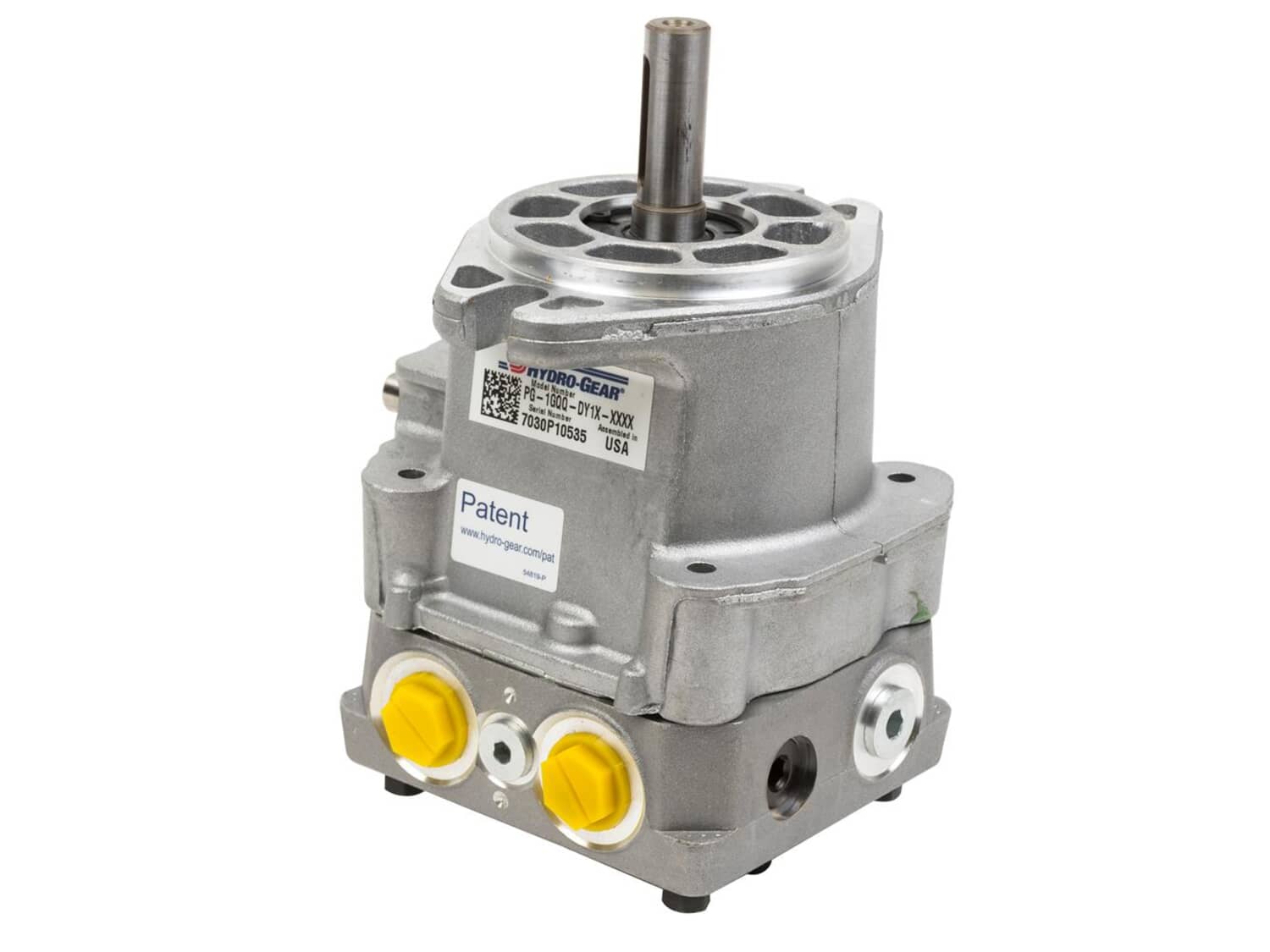

8835577-1-M-Toro-109-4988-PUMP-HYDRAULIC
Part Location Diagram of 109-4988 Toro PUMP-HYDRAULIC
See part B-13 in the diagram
( Grid squares measure 1x1 inch )
8835577-1-S-Toro-109-4988-PUMP-HYDRAULIC Part Location Diagram of 109-4988 Toro PUMP-HYDRAULIC

PUMP-HYDRAULIC 109-4988

Manufactured by:
Toro
ERP Number:
ERP8835577
Part Number:
109-4988
Original Equipment Manufacturer ?
$1648.42
Special Order

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Toro
  • Exmark
This part works with the following products:
  • Lawn Mower
Part# 109-4988 replaces these:
103-4247, 106-5490, 109-4988,

Model Cross Reference

This part works with the following models:
ERP Number: ERP8835577
Manufacturer Part Number: 109-4988
Brand Model Number Description
Toro 30033 Lawn Mower - Commercial Walk-behind Traction Unit, 17hp Pistol-grip Hydro Drive, 2008
Toro 30280 Lawn Mower - Commercial Walk-Behind Mower
Toro 30284 Lawn Mower - Commercial Walk-behind Mower, Floating Deck Pistol Grip Hydro With 36in Turbo Force Cutting Unit, 2007
Toro 30286 Lawn Mower - Commercial Walk-behind Mower, Floating Deck Pistol Grip Hydro With 40in Turbo Force Cutting Unit, 2007
Toro 30288 Lawn Mower - Commercial Walk-behind Mower, Floating Deck Pistol Grip Hydro With 48in Turbo Force Cutting Unit, 2007
Toro 30289 Lawn Mower - Commercial Walk-behind Mower, Floating Deck Pistol Grip Hydro With 52in Turbo Force Cutting Unit, 2007
Toro 30433 Lawn Mower - Mid-size Proline Pistol Grip Hydro, 15 Hp W/ 36-in. Sd Mower, 2003
Toro 30434 Lawn Mower - Mid-size Proline Pistol Grip Hydro, 15 Hp W/ 44-in. Sd Mower, 2003
Toro 30435 Lawn Mower - Mid-size Proline Pistol Grip Hydro, 17 Hp W/ 44-in. Sd Mower, 2003
Toro 30436 Lawn Mower - Mid-size Proline Pistol Grip Hydro, 17 Hp W/ 52-in. Sd Mower, 2003
Toro 30439 Lawn Mower - Mid-size Proline Pistol Grip Hydro, 15 Hp With 44in Side Discharge Mower, 2004
Toro 30440 Lawn Mower - Mid-size Proline Pistol Grip Hydro, 17 Hp With 44in Side Discharge Mower, 2004
Toro 30441 Lawn Mower - Mid-size Proline Pistol Grip Hydro, 17 Hp With 52in Side Discharge Mower, 2004
Toro 30527 Lawn Mower - Mid-size Proline Pistol Grip Hydro, 15 Hp With 36in Side Discharge Mower, 2005
Toro 30528 Lawn Mower - Mid-size Proline Pistol Grip Hydro, 15 Hp With 48in Side Discharge Mower, 2004
Toro 30984 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck Pistol Grip Hydro With 36in Turbo Force Cutting Unit, 2006
Toro 30986 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck Pistol Grip Hydro With 40in Turbo Force Cutting Unit, 2006
Toro 30988 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck Pistol Grip Hydro With 48in Turbo Force Cutting Unit, 2006
Toro 30989 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck Pistol Grip Hydro With 52in Turbo Force Cutting Unit, 2006
Toro 38988 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck, Pistol Grip, Hydro Drive With 48in Turbo Force Cutting Unit, 2009
Toro 39984 Lawn Mower - Commercial Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive With 36in Turbo Force Cutting Unit.
Toro 39988 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck, Pistol Grip, Hydro Drive With 48in Turbo Force Cutting Unit, 2008
Exmark THP15KA363 Lawn Mower - Exmark Lawn Mower Model THP15KA363/SERIAL: 600000-669999 (THP15KA363/SERIAL:600000669999, THP15KA363/SERIAL: 600000 669999) Parts
Exmark THP17KA363CA Lawn Mower - Exmark Lawn Mower Model THP17KA363CA Parts
Exmark THP17KA483 Lawn Mower - Exmark Lawn Mower Model THP17KA483/SERIAL: 600000-669999 (THP17KA483/SERIAL:600000669999, THP17KA483/SERIAL: 600000 669999) Parts
Exmark THP17KA483CA Lawn Mower - Exmark Lawn Mower Model THP17KA483CA Parts
Exmark THP17KA523 Lawn Mower - Exmark Lawn Mower Model THP17KA523/SERIAL: 600000-669999 (THP17KA523/SERIAL:600000669999, THP17KA523/SERIAL: 600000 669999) Parts
Exmark THP17KA523CA Lawn Mower - Turf Tracer Hp
Exmark THP19KAE483 Lawn Mower - Exmark Lawn Mower Model THP19KAE483/SERIAL: 600000-669999 (THP19KAE483/SERIAL:600000669999, THP19KAE483/SERIAL: 600000 669999) Parts
Exmark THP19KAE483CA Lawn Mower - Exmark Lawn Mower Model THP19KAE483CA Parts
PUMP-HYDRAULIC
$ 1648.42
Special Order
✖
