1. Lower deck
2. Remove 3/side hitch pins from deck hangers. (6 total)
3. Raise front of mower above deck. ( not necessary but makes access much easier.)
4. Slide deck partially out and remove pulley cover.
5, See belt thread guide on deck housing.
6, slide deck to opposite side and remove pulley cover on ot
... Read moreher side
7. Remove tension spring from pulley
8. Center deck and thread belt using diagram
9. Slide deck to rear and place belt over rear drive pulley
10. Slide deck forward and replace pulley covers.
11. Lower deck and reinstall deck hangers and secure with hitch pins
22. Loop a heavy string thru the tension spring and pull to the deck hook. - Job done.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP8829310
Manufacturer Part Number: 106-6998
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

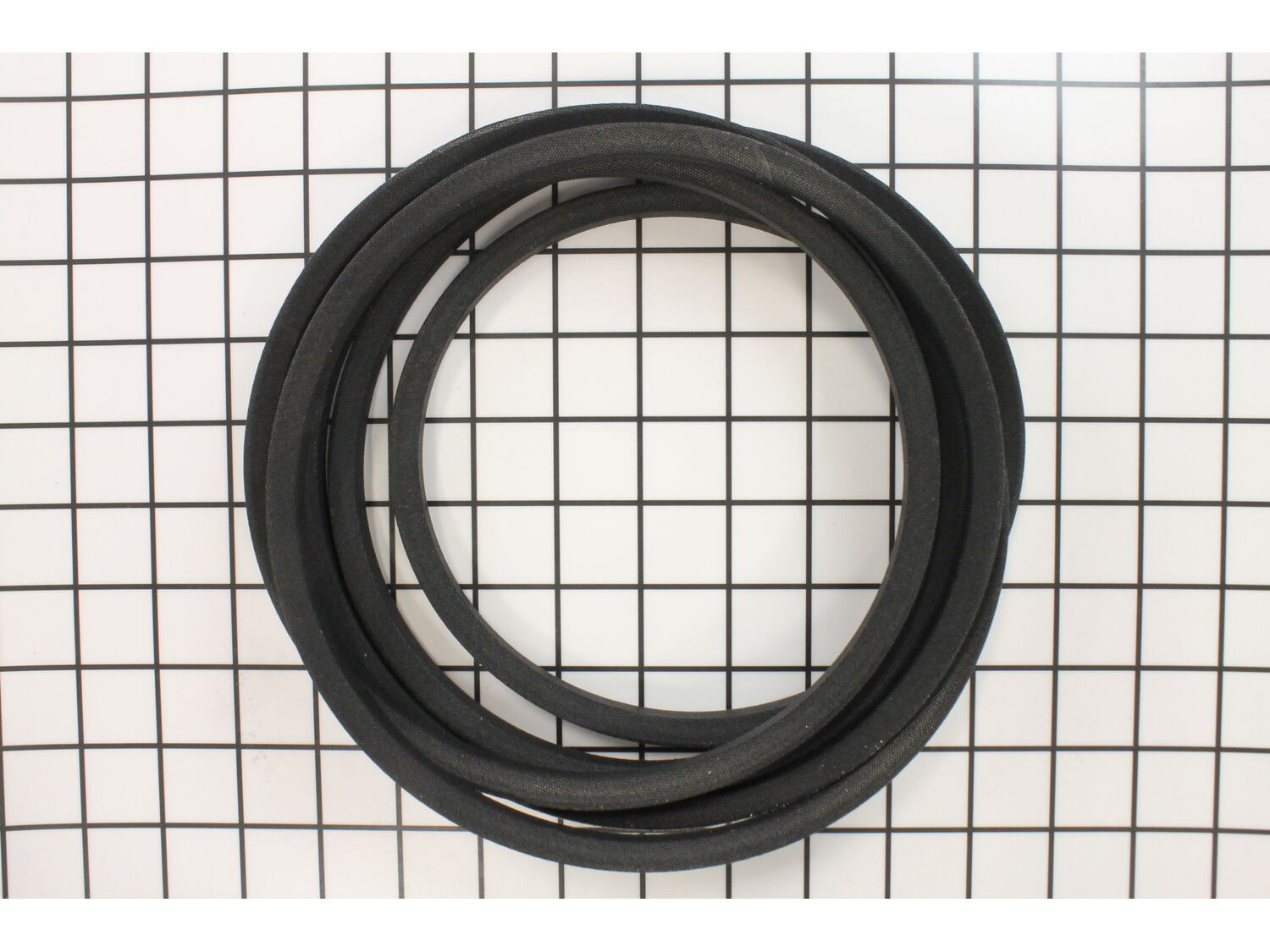

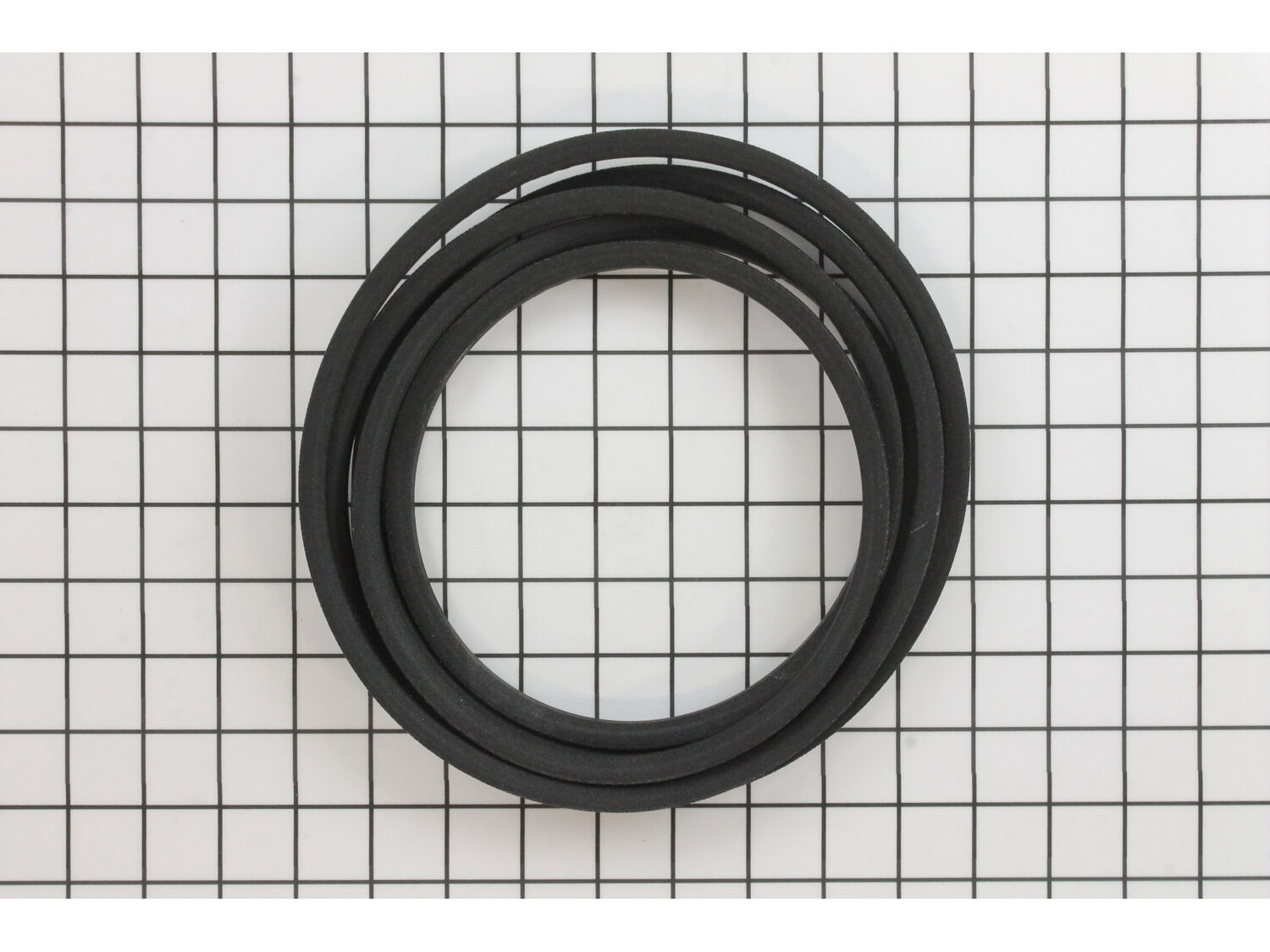

(2004)_WW_1.gif "Part Location Diagram of 106-6998 Toro V-Belt")
(2004)_WW_1.gif "Part Location Diagram of 106-6998 Toro V-Belt")
