11804695-1-M-Toro-127-6877-03-Plate-rear, Lh
Part Location Diagram of 127-6877-03 Toro Plate-rear, Lh
See part E1 in the diagram

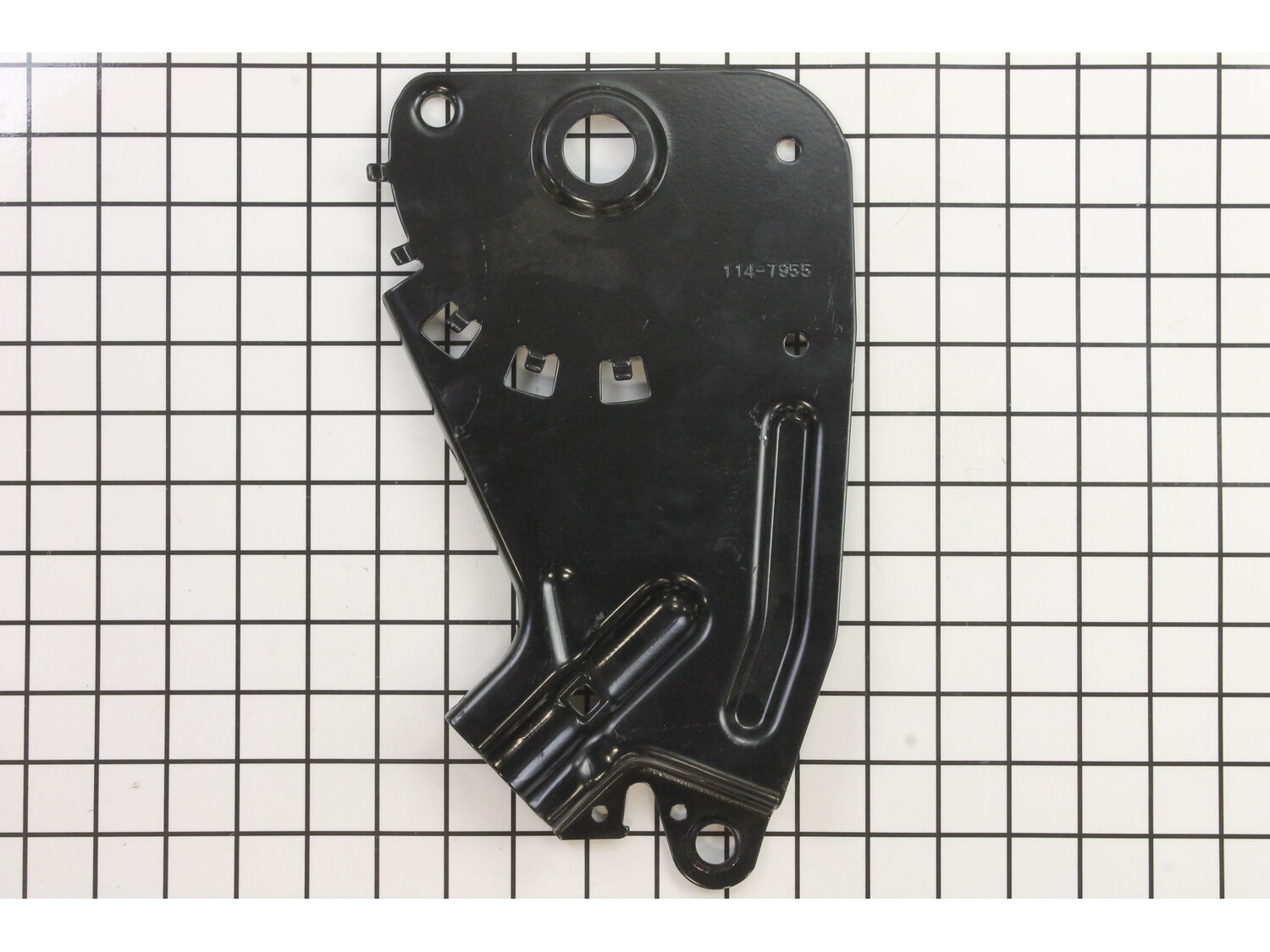

( Grid squares measure 1x1 inch )
11804695-1-S-Toro-127-6877-03-Plate-rear, Lh Part Location Diagram of 127-6877-03 Toro Plate-rear, Lh

Plate-rear, Lh 127-6877-03

Manufactured by:
Toro
ERP Number:
ERP11804695
Part Number:
127-6877-03
Original Equipment Manufacturer ?
$38.12
Special Order

Easy

30 - 60 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Toro
This part works with the following products:
  • Lawn Mower

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

30 - 60 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Wheel/gear grinding and locking on the self propelled recycle Toro Mower

Jerry from COLUMBIA, South Carolina

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Parts Used:
127-6877-03
The rear plate had a minor warp causing the drive gears to mis-align.
Repair was simple
1. remove old plate
2 install the new plate.

Only problem was removing the bearing housing from the plate.This had to be done to take replace the plate with existing parts.
A 1.25\" socket did the job. Other open end wrenches would not budge it.
Read less
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP11804695
Manufacturer Part Number: 127-6877-03
Brand Model Number Description
Toro 20332 Lawn Mower - 22in Recycler Lawn Mower
Toro 20332C Lawn Mower - 20332c, 22in Recycler Lawn Mower, 2011 (Sn 311000001-311999999)
Toro 20333 Lawn Mower - 22in Recycler Lawn Mower
Toro 20333C Lawn Mower - 20333c/Serial: 313000001-313999999
Toro 20334 Lawn Mower - 22in Recycler Lawn Mower
Toro 20334C Lawn Mower - 22in Recycler Lawn Mower
Toro 20337 Lawn Mower - Toro Lawn Mower Model 20337/Serial: 314000001-314999999/2014 (20337/Serial:314000001314999999/2014, 20337/Serial: 314000001 314999999/2014) Parts
Toro 20338 Lawn Mower - Lawn Mower
Toro 20352 Lawn Mower - Lawn Mower
Toro 20353 Lawn Mower - 22in Recycler Lawn Mower, 2016
Toro 20372 Lawn Mower - 22in Recycler Lawn Mower
Toro 20373 Lawn Mower - 22in Recycler Lawn Mower
Toro 20374 Lawn Mower - 22in Recycler Lawn Mower
Toro 20376 Lawn Mower - Toro Lawn Mower Model 20376 Parts
Toro 20955 Lawn Mower - Toro Lawn Mower Model 20955/SERIAL: 314000001-314999999 (20955/SERIAL:314000001314999999, 20955/SERIAL: 314000001 314999999) Parts
Toro 20956 Lawn Mower - Toro Lawn Mower Model 20956/SERIAL: 313000001-313999999 (20956/SERIAL:313000001313999999, 20956/SERIAL: 313000001 313999999) Parts
Toro 20958 Lawn Mower - Toro Lawn Mower Model 20958/SERIAL: 313000001-313999999 (20958/SERIAL:313000001313999999, 20958/SERIAL: 313000001 313999999) Parts
Toro 20960 Lawn Mower - Toro Lawn Mower Model 20960/Serial: 315000001-315999999/2015 (20960/Serial:315000001315999999/2015, 20960/Serial: 315000001 315999999/2015) Parts
Plate-rear, Lh
$ 38.12
Special Order
✖
Stock Status
✖
Mail-In Recycling Rebate

Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

✖
