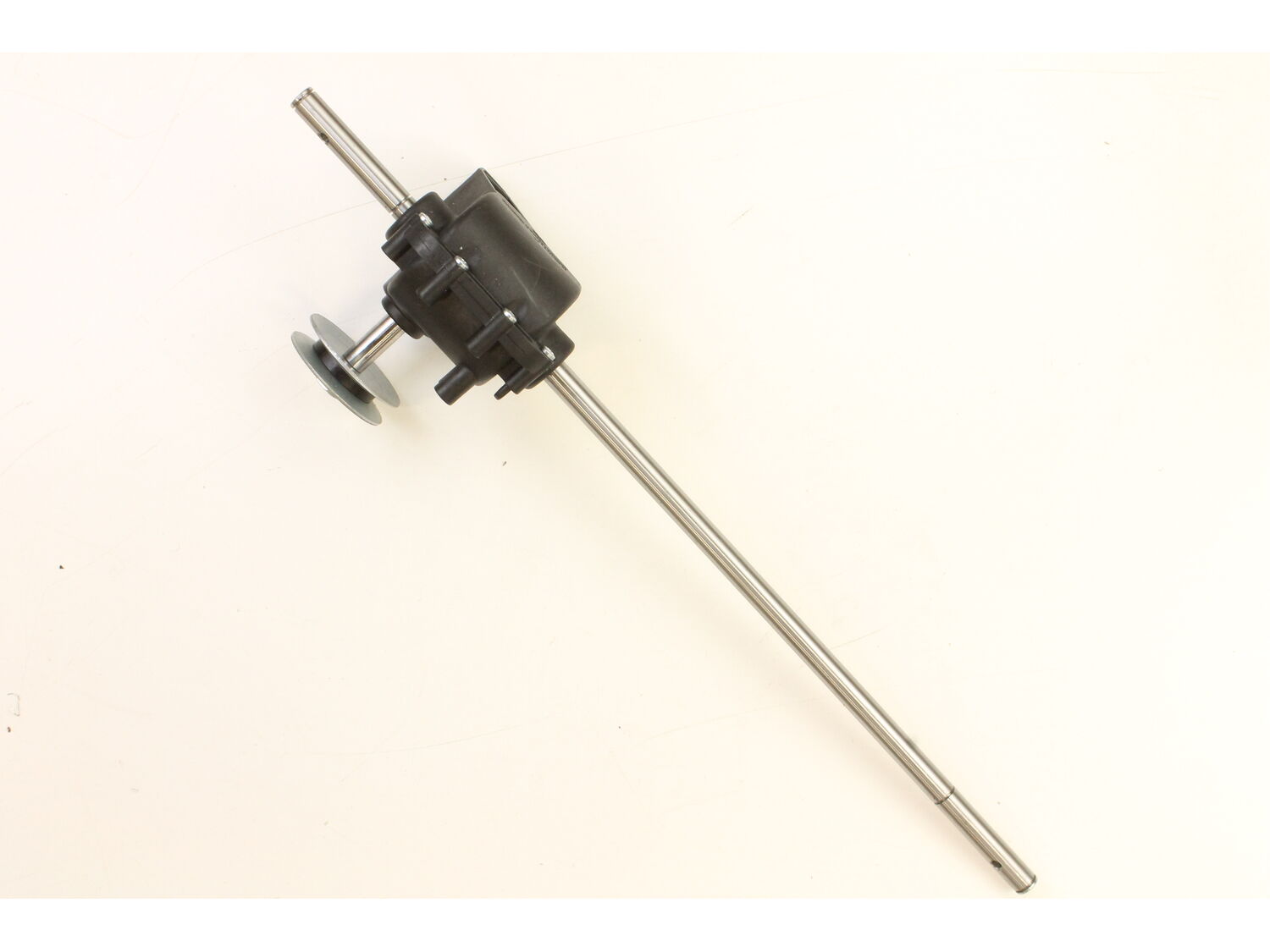

9090470-1-M-Murray-7103311YP-Transmission, Vs, Fwd
Part Location Diagram of 7103311YP Murray Transmission, Vs, Fwd
See part E-16 in the diagram
( Grid squares measure 1x1 inch )
9090470-1-S-Murray-7103311YP-Transmission, Vs, Fwd Part Location Diagram of 7103311YP Murray Transmission, Vs, Fwd

Transmission, Vs, Fwd 7103311YP

Manufactured by:
Murray
ERP Number:
ERP9090470
Part Number:
7103311YP
Original Equipment Manufacturer ?
$137.40
In Stock
Delivers in 3-5 Business Days!

Easy

30 - 60 mins

(2 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Description Troubleshooting Repair Instructions Model Cross Reference

Product Description

?

Transmission vs fwd

Troubleshooting

This part works with the following brands:
  • Murray
  • Snapper
  • Briggs and Stratton
This part works with the following products:
  • Lawn Mower
Part# 7103311YP replaces these:
7103311YP,

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

30 - 60 mins

(2 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Transmission stripped gears

Leonard from Columbus, Nebraska

3 of 3 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set
Parts Used:
7103311YP
Remove both front wheels and lock keys from both sides of shaft, pull gears off mark each side. Take blade off remove belt pulley remove. 2 bolts for top shield than remove 2 bolts from top of transmission for belt guides remove both height brackets, spray around holes to clean pull apart replace with new transmission
Did you find this story helpful?
Thank you for voting!

Transmission was slipping and making loud \"grinding\" type noise

Fredrick from Lansing, Michigan

3 of 3 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Wrench set
Parts Used:
7103362YP, 7103311YP
1. Remove wheels from front axle
2. Remove snap rings that retain drive gears
3. Remove axle/transmission assembly
4. Install new axle/transmission
5. Re-install old drive gears and snap rings
6. Re-install wheels
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP9090470
Manufacturer Part Number: 7103311YP
Brand Model Number Description
Snapper 13037129 Lawn Mower - Gas Walk-Behind Mower
Snapper 13037221 Lawn Mower - Gas Walk-Behind Mower
Snapper 13037229 Lawn Mower - Gas Walk-Behind Mower
Snapper 130381460 Lawn Mower - Gas Walk-Behind Mower
Murray 7800574 Lawn Mower - Murray Lawn Mower Model 7800574 Parts
Murray 7800641 Lawn Mower - Murray Lawn Mower Model 7800641 Parts
Briggs and Stratton 7800641-LP7800641-JS26FC Lawn Mower - 7800641 - Lp7800641 - Js26fc, 22" 7.0gt Deere Self-Propelled Fwd Mower (2010)
Murray 7800644 Lawn Mower - Murray Lawn Mower Model 7800644 Parts
Briggs and Stratton 7800644-LP7800644-NJS26 Lawn Mower - 7800644 - Lp7800644 - Njs26, 22" Deere Fwd Walk Mower California Model (2010)
Murray 7800663 Lawn Mower - 7800663 - Walk Behind Mowers
Briggs and Stratton 7800663-LP7800663-JS26M Lawn Mower - 7800663 - Lp7800663 - Js26m, 22" 7.0gt Self-Propelled Fwd Deere Mexico Model (2010)
Murray 7800666 Lawn Mower - Murray Lawn Mower Model 7800666 Parts
Briggs and Stratton 7800666-LP7800666-EJM26 Lawn Mower - 7800666 - Lp7800666 - Ejm26, 22" 6.75gt Deere Self-Propelled Fwd European Mower (2010)
Snapper 7800709 Lawn Mower - Snapper Lawn Mower Model 7800709 Parts
Murray 7800743 Lawn Mower - BTXP22700HW, 22-In. 7.0GT Brute High Wheel Steel Deck Self-Propelled Walk Behind Mower
Briggs and Stratton 7800743-BTXP22700HW Lawn Mower - 7800743 - Btxp22700hw, 22" 7.0gt Brute High Wheel Steel Deck Self-Propelled Walk Behind Mower (2011)
Snapper 7800755 Lawn Mower - Snapper Lawn Mower Model 7800755 Parts
Snapper 7800776 Lawn Mower - Snapper Lawn Mower Model 7800776 Parts
Snapper 7800779 Lawn Mower - Snapper Lawn Mower Model 7800779 Parts
Murray 7800802 Lawn Mower - Briggs and Stratton 7800802 Brute 22-Inch. Lawn Mower
Briggs and Stratton 7800802-BTXP22675HW Lawn Mower - 7800802 - Btxp22675hw, 22" 6.75gt Brute High Wheel Self-Propelled Walk Behind Mower (2011)
Murray 7800806 Lawn Mower - Murray Lawn Mower Model 7800806 Parts
Briggs and Stratton 7800806-BTPV22675HWFC Lawn Mower - 7800806 - Btpv22675hwfc, 22" 6.75gt Brute High Wheel Self-Propelled Walk Mower (2011)
Murray 7800807 Lawn Mower - Murray Lawn Mower Model 7800807 Parts
Briggs and Stratton 7800807-JS26 Lawn Mower - 7800807 - Js26, 22" 7.0gt Self Propelled Fwd Walk Behind Mower (2011)
Murray 7800824 Lawn Mower - Murray Lawn Mower Model 7800824 Parts
Briggs and Stratton 7800824-JS28 Lawn Mower - 7800824 - Js28, 22" 7.25gt Self-Propelled Fwd Walk Behind Mower (2012)
Snapper 7800831 Lawn Mower - Snapper Lawn Mower Model 7800831 Parts
Snapper 7800832 Lawn Mower - Snapper Lawn Mower Model 7800832 Parts
Murray 7800852 Lawn Mower - Murray Lawn Mower Model 7800852 Parts
