Worked well
Mower working like new. Great experience with replacementparts. Highly recommended
Guest - July 2, 2020
Verified Purchase
★★★★★
★★★★★
Easy repair.. great delivery time!
The steering shaft was the one I needed. Great experience with this company!
Guest - September 11, 2020
Verified Purchase
★★★★★
★★★★★
Not an easy fix
The old part had made a hole in the frame from wab..bling too much so we had to fix the hole before we could get the new part in...old part required almost a total disassembly of everything to get it out...was a bigger chore than thought
Anonymous - August 14, 2021
Verified Purchase
★★★★★
★★★★★
Great Site
The site is easy to use and many parts are available. One problem is when you click on parts and diagrams you do not get a diagram. One must go to the Troy Built site, find the diagram, then the part number and then back to your parts list. Other than that, the parts I have ordered are the correct fit.
Albert - September 2, 2022
Verified Purchase
★★★★★
★★★★★
Worked as expected
Part arrive in fantastic condition, packing was excellent very pleased with what I received. Thank you
Guest - October 16, 2019
Verified Purchase
★★★★★
★★★★★
Steering shaft
This part should include the replacement hex bushing. Not included, not even mentioned by the phone rep. No instructions or directions either. Huge pain to install the part.
Guest - May 5, 2020
Verified Purchase
★★★★★
★★★★★
Forever
Part was fine. Went together well and works great. I just couldnt believe how long it took to receive it. It is a hood thing the grass wasnt grow due to lack of rain. It took at least 17-18 days to come in. Not counting Sundays. That was pretty disappointing. I need some more parts but not sure if I am ordering from yall again.
Guest - October 8, 2019
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed damaged steering shaft and replaced with new one. Wasn\'t difficult at all
Did you find this story helpful?
Thank you for voting!
Gear on the bottom of the steering shaft stripped after the upper and lower bearings wore and allowed shaft to no longer contact sector gear as designed
Removed hood, to keep from shutting at the most inopportune time
Disassembled dash after removing the steering wheel
Removed screw from bottom of the steering shaft
Removed shaft and both worn bearings
Reassembled in reverse order with new bearings and steering shaft
Discharge chute was not exact fit,
... Read morerequires drilling 2 new holes in the deck and new mounting bolts
Throttle cable r and r straight forward
Read less
Did you find this story helpful?
Thank you for voting!
Steering gear had started to wear out and skipped badly, Lower dash was cracking.
1. Disassembled dash and steering components. This is straight foreword but does require some time. Removing the mower deck may make this easier but I just jacked up the mower and lowered the front, leaving the back of the deck connected. The lower bolt on the steering shaft had to be heated to get it to break loose.
2. I first repl
... Read moreace the Lower Dash, then the lower components of the steering assembly. When the parts in the lower steering assembly do wear out, the spacer allowed play in the steering assembly which will cause the lower gear on the steering shaft to wear out.
3. Next the steering shaft went into place and the upper dash went back together. I used anti-seize on everything.
4. On reassemble, I replaced the lower steering shaft Phillips head screw with a standard hex bolt to make removal easier next time.
5. Next was to ensure the front wheels were centered, adjust the steering linkage and install the steering wheel.
6. Then just raise the front of the deck and reconnect the linkage. Once the mower is off the jack, check/adjust the deck to ensure it is level, it should be OK.
I do recommend having the parts book with the expanded drawings, just to reference for the parts and the locations. It is not difficult, but I still took my time with it and could have probably shaved quite a bit of time off the project it the lower steering shaft screw wasn\'t locked up and required heat to break loose. Removing the mower deck completely may also give you a little more room to work, but is not necessary. Using one of those mower jacks that picks up the front end also makes this easier but anything to raise it and block it in place will work.
Read less
Did you find this story helpful?
Thank you for voting!
Steering shaft gear got worn down and had to replace
I had to take off the deck and the transmission pulley gear to get a sawzall in to remove the screw holding the steering shaft to the frame. After this, I had to take apart the console to remove the shaft and gear. Parts were perfect and and replacement was quick. Greatly assisted by the schematics on the site.
1. dropped blades, removed cotter pin, steering wheel
2. removed screw to steering shaft, removed shaft, gas tank
3. replaced steering shaft, gas tank
4. replaced cotter pin ...all done
5. cut the grass, made home association smile
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP16421190
Manufacturer Part Number: 738P07154
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
✖
[{"position":0,"name":"Home","title":"Home","url":"/"},{"position":1,"name":"Wheel or Roller","title":"Wheel or Roller","url":"/parts/lawn-and-garden/lawn-mower/wheels-and-rollers/"},{"position":2,"name":"738P07154","title":"738P07154","url":""}]

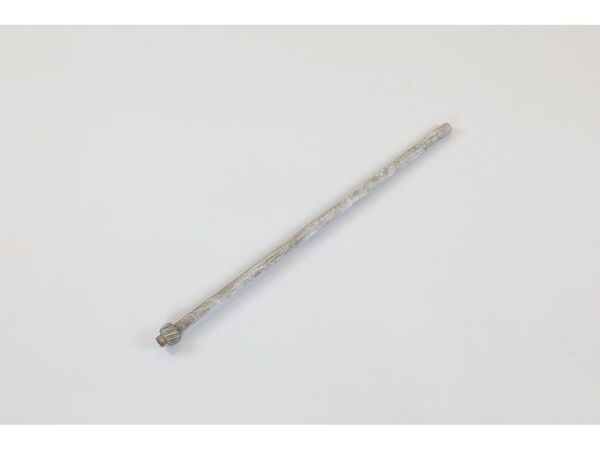

_WW_1.gif "Part Location Diagram of 738P07154 MTD Lawn Tractor Steering Shaft")
