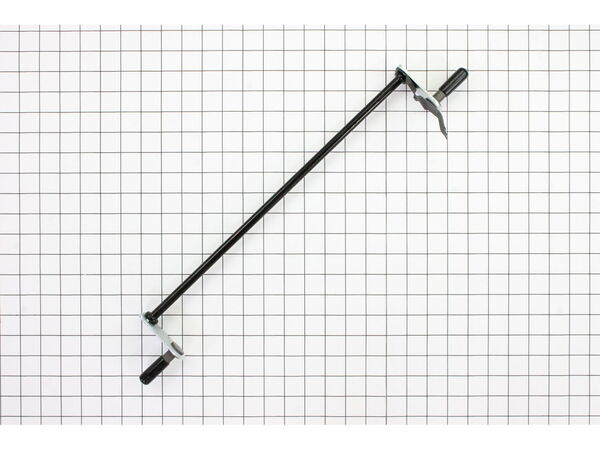

This authentic component is sourced directly from the original equipment manufacturer. It is specially designed for use with push lawn mowers. It is an identical replacement for a damaged or a missing front axle assembly that was installed on a new unit. This is the part that front wheel are attached to. Refer to the diagrams of your model for the exact location and the correct installation of this component. Note, it is made of durable metal and is sold individually. You will need a wrench set and a screwdriver to remove the wheels, disconnect the old axle assembly and attach the new part.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Right part, on time easy fix
Perfect.
Dave - July 2, 2019
Verified Purchase
★★★★★
★★★★★
front axle assembly
The lady researched and found the part for me. Thank you I'm now mowing again
Guest - July 9, 2019
Verified Purchase
★★★★★
★★★★★
Perfect fit
The part was exactly as needed. My lawn mower works great but the height adjuster broke, but this part we are good to go.
Guest - July 15, 2019
Verified Purchase
★★★★★
★★★★★
Quick fix
Ordering was easy with model number. Right price. Delivered quickly. Installed easily and fast. Worked like a charm.
Guest - March 23, 2020
Verified Purchase
★★★★★
★★★★★
Great service!
We received the part sooner than expected. It fit perfectly, was easy to install, and the mower is back in full operation. Thanks for the great service!
Guest - May 1, 2020
Verified Purchase
★★★★★
★★★★★
Part was the perfect replacement!
Replaced axle, with mower height adjustment. Part# 611-04143B. (Time required, 30 minutes) Part was a perfect match, no problems.
Guest - May 26, 2020
Verified Purchase
★★★★★
★★★★★
Great!
Great! Took 15 minutes to replace-Perfect fit!
Guest - March 15, 2021
Verified Purchase
★★★★★
★★★★★
Great part and very easy to repair
Part was exactly as listed and arrived very quickly. Very easy repair, would order again.
Guest - April 14, 2021
Verified Purchase
★★★★★
★★★★★
Easy repair, great part
The part was in great condition and fit perfectly. A $20 part saved me from buying a new lawn mower at almost $250. Thanks
Guest - May 12, 2021
Verified Purchase
★★★★★
★★★★★
as expected
everything was just right
Guest - May 18, 2021
Verified Purchase
< Prev
1
2
3
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.
Easy
15 - 30 mins
(29 rated repairs)?
< Prev
1
2
3
Next >
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Part of the plastic axle mount in the front cover failed, so the front wheels would not maintain a consistent cutting height. The adjuster plate and lever (part of the axle assembly) had become somewh
1. The blade was a simple 1-bolt mount. Removed and replaced.
2. The front cover is held on by 5 or 6 self-tapping screws, easily removed once found.
3. Wheel covers pry of with any flat blade; wheels are single bolt, easily removed.
4. Old adjuster plate screws were removed to reuse in new assembly. Old adjuster lever k
... Read morenob pried off for reuse as well.
5. New adjuster plate screwed onto front cover.
6. Old wheels and wheel covers attached to new axle assembly.
7. Axle assembly \'snapped\' into front cover.
8. Front cover reattached to mower deck using original screws.
9. Adjuster knob snapped on.
Everything aligned perfectly. No adjustments required.
1. Removed front hubcap and wheel
2. Removed axle. Note: needed an extra set of hands for this step as it required using two pliers to pry open the fitting where the axle slips into. The extra set of hands (my wife) pulled out the axle while I held the wedge (fitting area) open.
3. Popped new axle into place.
4. Reinst
... Read morealled wheels and hubcaps
Very easy repair, just plan on having someone help you for about 5 minutes.
Took wheels off, lay mower on side with carburetor up,
Used snap ring pliers to separate tabs holding front axle assembly in place. Then popped out assembly with large flathead screw driver, repeated for other side , snapped in place new axle assembly by hand. Put wheels back on.
Remove 5 bolts from deck
Install new adjuster plate on new front cover
Install assembly on front of mower
If you do this repair replace the 5 bolts that hold the assembly they will be rounded off from normal wear under the deck
Did you find this story helpful?
Thank you for voting!
Broken wheel adjuster., Very cheaply made for heavy work 3rd time replaced
Front and back wheel adjuster broke, need to have both wheels have a adjuster made of steel not tin ( thatÆs for front and back wheels). This tin wheel adjuster is too weak for heavy work. 3rd time replacing.
Need 2 large wide screw driver to release the wheel tabs and a small tire iron to release the axis. two wrench s
... Read moreets to loose and tighten the nuts.
Troy-Bilt black plastic nose guard that holds axle broke off at axle connection.
Removed and replaced front plastic guard, and replaced front axle as well.
Snap out axle, remove front guard held on with 6 screws. Install new guard.
Install new height adjuster plate on new guard. Remove wheels from old axle and put them
... Read moreon the new one. Snap front axle into new guard. It was not a difficult job, and well worth the cost of the parts. Now have a new front end ( except for the wheels ).
Removed both adjustment plate and front axle assembly and replaced both
with brand new parts. Once I got them apart I figured out how easy it would
be to fix the problem by buying the replacement parts. It wasn\'t any problem
1. Removed wheels with drill with mower on floor.
2. Removed front axel, by pressing down lock and removing one side at a time.
3. Removed screws holding front cover with using power drill.
4. mounted and drilled new front cover
5. Popped in new front axel .
Good as new. great fit . great price.
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
3
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP16386128
Manufacturer Part Number: 611-04143B
