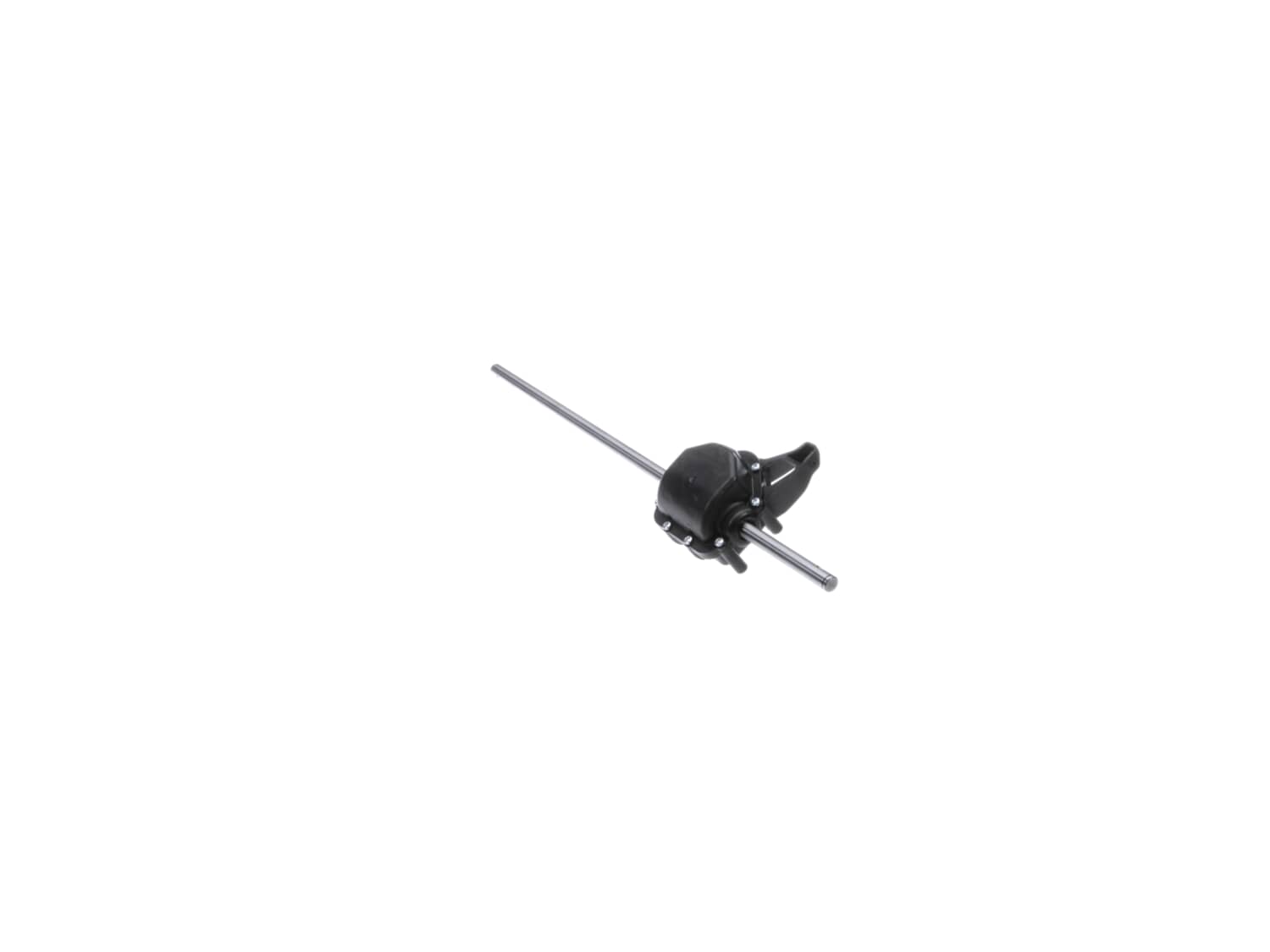

This part is an OEM from Husqvarna and Jonsered for use with Lawnmowers. The transmission rotates the axle to drive the wheels and move the mower forward. The drive cable pushes the transmission forward to engage the drive belt and spin the transmission pulley when you pull the drive lever up on the mower handle. Replace the transmission if it's locked up or won't drive the wheels when engaged. This part is sold individually. The tools that you will need to replace the transmission are a socket wrench, snap ring pliers, and a wrench.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Part arrived fast
Easy to identify and order needed parts online. Shipped fast in suitable carton. Thanks!
Guest - July 25, 2023
Verified Purchase
★★★★★
★★★★★
Repair complete
Good service, able to speak to someone live when ordering parts. Very satisfied with the product and the service. I would liked to have received instructions for installation.
Guest - May 4, 2020
Verified Purchase
★★★★★
★★★★★
my lawn mower
was in too bad of shape to use it.
Guest - July 5, 2019
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
I removed the drive pulley cable and the wheels and wheel gears and then removed the transmission. I replaced the transmission and reassembled the drive belt, wheel gears, wheels, and drive cable. I also, cut and screwed a small piece of plastic to repair the guard where a rock had pierced it and broken through the guard and damaged the t
... Read moreransmission bracket that the drive cable attaches to. It was fairly simple and runs great now!!! Thanks for the part.
Read less
Did you find this story helpful?
Thank you for voting!
Transmission lever arm snapped and stripped gear set on Husqvarna 775EX

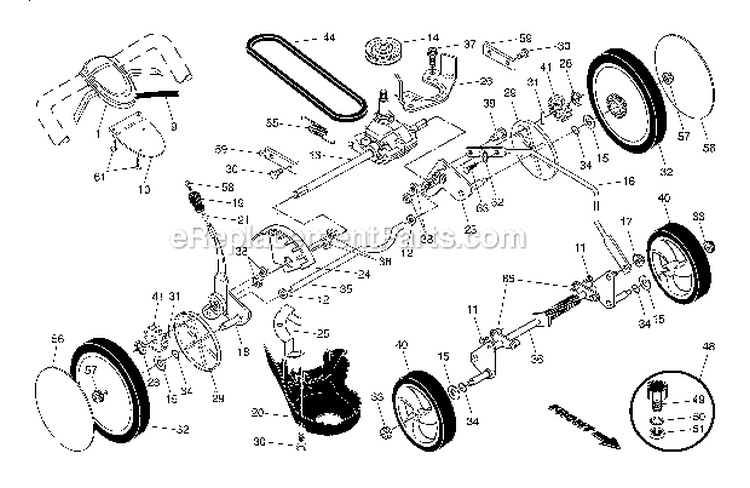

Look closely at the diagram on this site and watch a you tube video for help. The diagram on the eReplacement Parts website was very helpful since I wasn\'t able to find a diagram for the Husqvarna 775EX anywhere else. Get ready to remove the entire rear frame of the mower and the shrouding on the underside. Unfortunately, no good shortcu
... Read morets I could find.
Note: The model name wasn\'t exact match but the transmission fit perfectly.
Read less
Did you find this story helpful?
Thank you for voting!
Failed axle bearing caused lawn mower housing to cut axle
Jamie from Bellevue, Washington
3 of 3 peoplefound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
1. Remove rear wheels and select assembly (or what\'s left of it, since it created the failed axle)
2. Remove the undercarriage fairings
3. Remove belt pulley
4. Remove transmission
5. Install belt pulley
6. Install select assembly
7. Install undercarriage fairings
Did you find this story helpful?
Thank you for voting!
4WD Honda Mower self propelled action failed
John from Los Gatos, California
1 personfound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Replaced the rear drive transmission. It was to important to recall the removal sequence in the reinstallation. Other than that it went smoothly and the mower runs like new.
Did you find this story helpful?
Thank you for voting!
Self propel wouldn\'t work.
Jeffrey from Colorado Springs, Colorado
1 personfound this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Shut off fuel line. Tip mower up on front end, but on blocks so the wheels are free to move.
remove grass flap, wheels, axle gears.
Note orientation of wheel height adjuster bar across bottom rear of mower (take a picture) with the height adjuster in a known setting (e.g. 5).
Remove bolt holding front wheel adjuster to
... Read moreleft rear wheel assembly.
Remove handle wing-nut on one side, along with retention spring on pivot
Remove bolts holding wheel assemblies on both sides - height adjuster my need to move up and down to get to some of them.
Remove nuts on adjuster bar across back-bottom - remove adjuster bar
Remove Blade and drive pulley
Remove belt cover (on bolt on bottom, two little ones on top of mower near back. This is not really necessary, but makes it easier to see what\'s going on.
unhook spring and clutch cable from transmission (my transmission housing was broken and the spring was missing). Take a picture first to you can put them back where they belong. The cable hooks to the plastic housing, the spring to the metal belt guard.
Remove the drive shaft and transmission - takes a little effort to get out of the bearings on each side.
Remove the drive pulley and the belt. I put vice-grips on the drive shaft to put a wrench on the pulley belt.
Reverse the process to install the new transmission.
1 Removed the rear wheels.
2 Removed the shields underneath.
3 Removed the push handle.
4 You will have to remove the cable and spring, my housing was broke so I didn\'t have to.
Did you find this story helpful?
Thank you for voting!
Part of the transmission casing broke off. Cannot run over anything real hard. I hit a dog toy and it was enough to hit the plastic part of the deck to bust the transmission housing. Not a good des
Kyle from FRISCO, Texas
0 of 1 peoplefound this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench set
You must removed all plastic housing from underneath and most of rear end to rear move the transmission. The pulley on the transmission separates into 2 pieces. The top half unscrews from the bottom half.
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9982399
Manufacturer Part Number: 581680801
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
