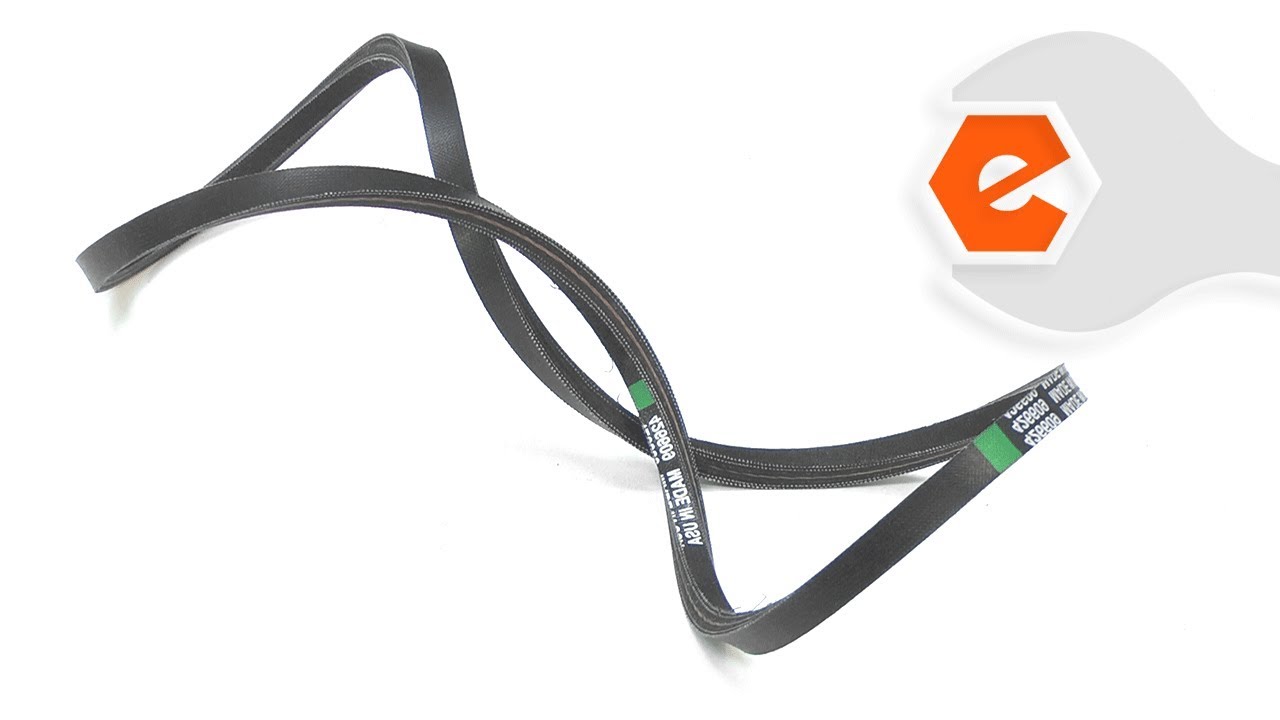

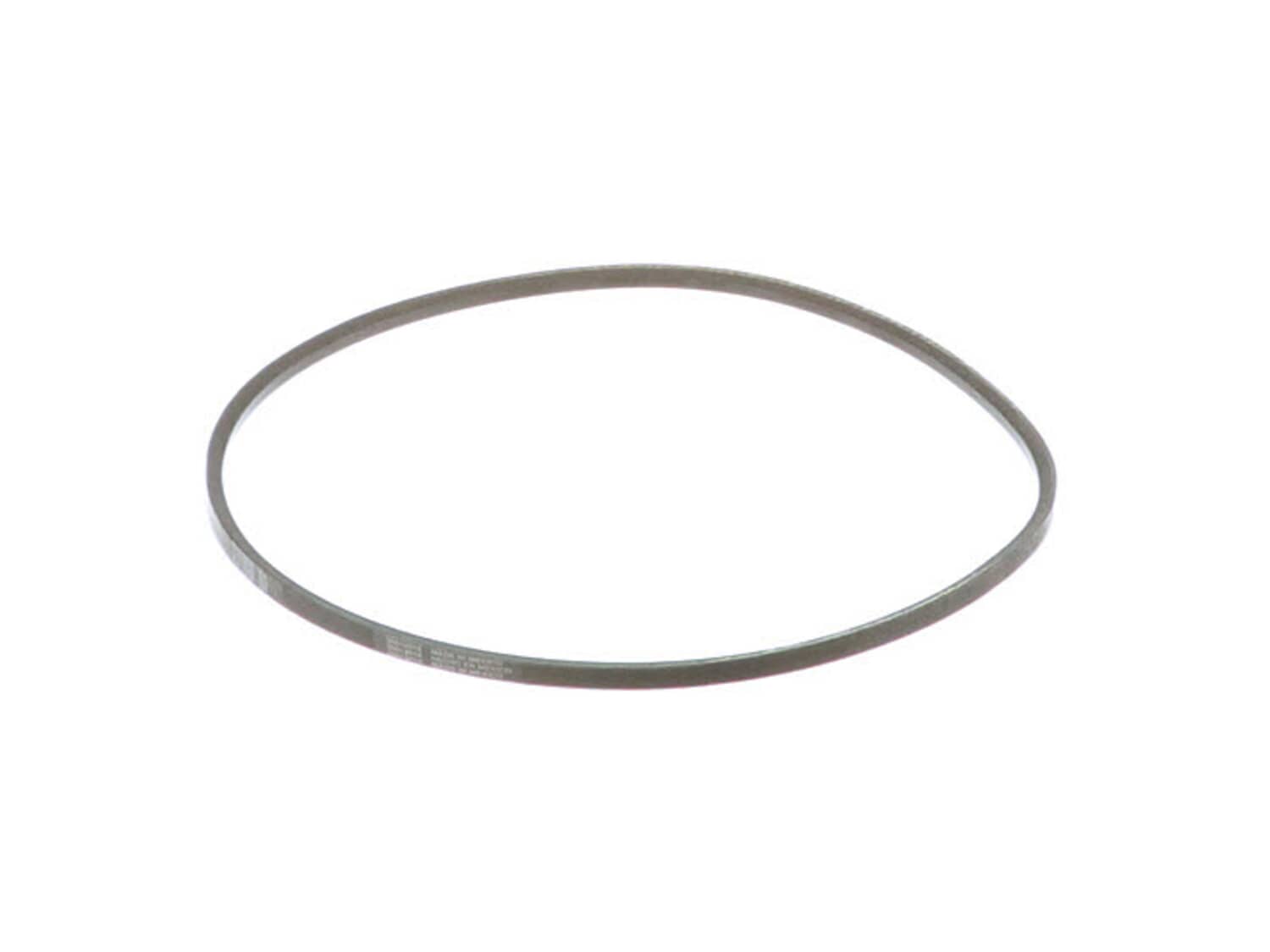

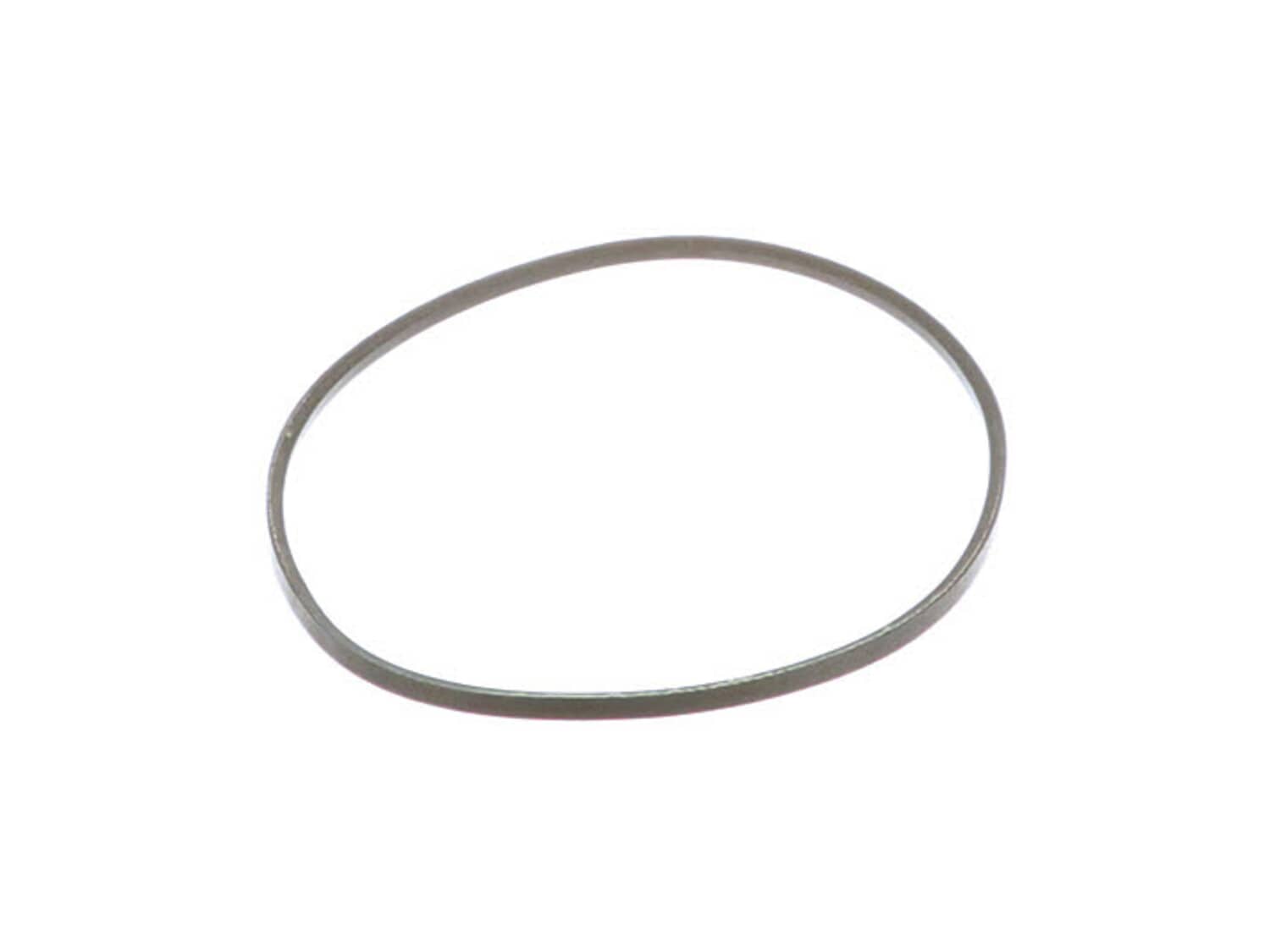

This is an authentic manufacturer sourced replacement belt specially designed for use with walk-behind lawn mowers. This is the the main belt that drives the blades. Over time rubber belts tend to stretch out or break eventually requiring replacement. When replacing this belt, make sure to clean off the drive pulleys to prolong the life of the new belt. This part is made out of durable rubber and it is sold individually. You will need a set of wrenches to replace this drive belt. • Remove the belt cover • Move the belt guard • Remove the old drive belt • Install the new drive belt • Reassemble and test the new belt
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Belt for a lawn mower
Having problems finding parts. Ordered from you and it's the exact fit. My husband was pleasantly surprised and very happy. We would order from you again.
Guest - May 22, 2019
Verified Purchase
★★★★★
★★★★★
Easy and Quick
Very easy to find and order the part I needed. Quick delivery. Great experience.
Guest - May 30, 2019
Verified Purchase
★★★★★
★★★★★
right part, quick service
ok
Harold - April 20, 2020
Verified Purchase
★★★★★
★★★★★
Love the Website
Website is easy to use and no issues with finding the parts required quickly. Also find pricing to be competitive and with the parts delivered to your door, it couldn't be easier!
Guest - June 23, 2022
Verified Purchase
★★★★★
★★★★★
Worked as expected
The belt was right and arrived on time
Guest - August 16, 2022
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Removed old front drive wheels from mower, (one bolt) replaced with new ones. Easy repair that was done in minutes.
V-belt replacement was more involved.
1. Removed plastic cover over front of belt on deck
2. Removed old belt
3. Fed new belt under engine onto pulleys and routed through guides.
... Read more 4. Lifted front drive pulley and fed belt into slots. Tested tension. Started mower to check for correct operation prior to replacing plastic cover
Remove the the cover, then place the belt on the gearcase pulley and engine pulley. To remove the wheels just remove the nut from the shaft and pull the old wheels off , then put the new wheels on and tighten the nut.
I downloaded a copy of the owner\'s manual and found info about changing the belt. Taking off wheels showed that gears on inside was stripped and the one wheel needed to be replaced.
1. Remove the drive cover and belt keeper.
2. Remove the belt from gear case pulley.
3. Turn lawnmower on its side with air filter and carburetor down. Put a piece of Saran Wrap or plastic bag over gasoline opening and replace with cap to prevent leakage of gas.
4. Remove blade, engine pulley and debris shield.
<
... Read morebr />5. Remove engine pulley and belt from debris shield.
6. Place new drive belt in engine pulley and belt retainer of debris shield.
7. Route the other end of the new drive belt through hole in housing.
8. Reinstall debris shield and return mower to upright position.
9. Install new belt on gearcase pulley and reinstall belt keeper and drive cover.
10. Turn the lawn mower on its side again and reinstall blade.
Note: There are specific instructions for removing and reinstalling the blade which I did not include.
Remove the wheel lock nuts and replace the wheels. Removed gas from tank and turned mower on side so I can have access to the top and bottom of mower Remove the blade and belt belt guards. Slide the blade pulley off the shaft. Removed and installed the new belt. Replaced the pulley. Placed the belt on the pulley...this was difficult. Repl
... Read moreaced belt guards and blade.
Removed belt cover.
Cleaned pulleys and belt guides.
Placed belt on wheels gear box.
Placed belt through guides, onto pulley.
Checked for tautness.
Placed belt cover back on.
Started mower to ensure belt functioned correctly.
Did you find this story helpful?
Thank you for voting!
Drive wheel bearing broke. Replaced the drive belt.
