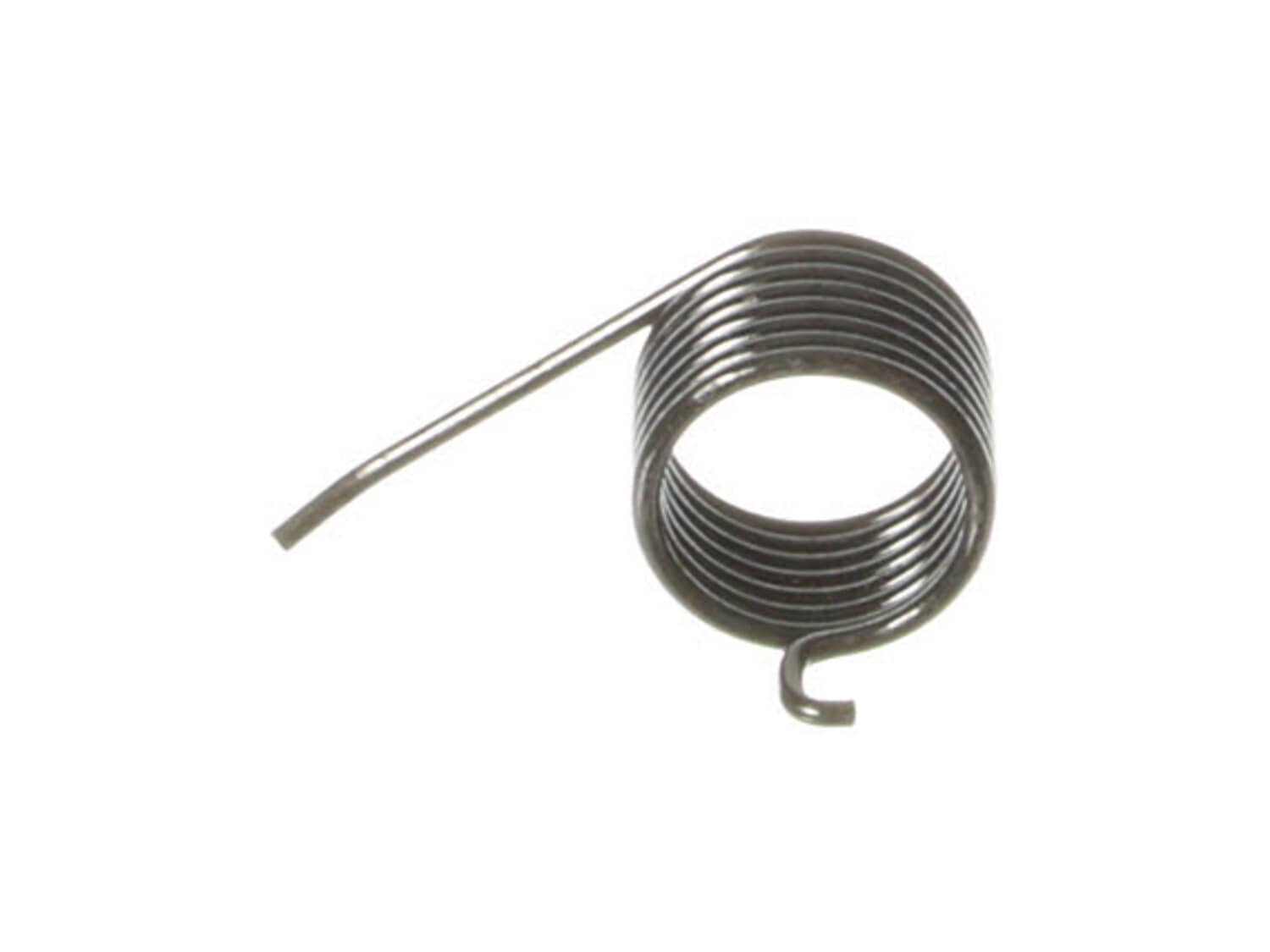

This is a genuine replacement part sourced directly from the manufacturer. The spring is commonly found in Craftsman lawn mowers. This part is made of metal, and is used to help provide tension to the rear door, to hold it in place. Please be aware that there are different springs used in the machine. Refer to the parts diagram to be sure of ordering the correct part. You may require a wrench and pliers when replacing this part. This item is sold individually.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Great customer support and all parts were in stock and fairly priced
Parts arrived as expected and were exact fit.
Guest - May 9, 2019
Verified Purchase
★★★★★
★★★★★
easy installation
The product arrived in a timely manner.
Guest - June 9, 2019
Verified Purchase
★★★★★
★★★★★
Door assembly
When my hursquvana lawnmower assembly door broke I was upset. I ordered the door assembly and springs and it was sent to me in 6 days, which was perfect because I was going out of town. The parts arrived and I assembled the door and now I m enjoying the cut again. I’m going to order all parts for this lawnmower from this web site,. Great service
Guest - October 9, 2019
Verified Purchase
★★★★★
★★★★★
just what i needed
just what i needed
Guest - October 10, 2019
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed broken rear door. Removed LH and RH springs, removed right rear wheel and pried wheel assembly off. Put on new door and springs, replaced wheel assembly. Good to go.
1) Removed and disassembled rear bagging door (original left / right springs were gone).
2) Used 5/8\" x 6\" oak dowel as replacement for missing left hinge portion of door.
3) Drilled 5/16\" x 1-1/4\" deep hole into end of 5/8\" dowel; fits the metal hinge pin from left side of mower.
4) Cut a 1/2 wide by 5\" long and 1
... Read more/4\" thick piece of aluminum as a spacer below the oak dowel; this centers the dowel off of the door with the left hand hinge pin.
5) About 5/16\" from end of aluminum spacer, drilled a 7/64\" hole, tapped for 32 threads per inch, and countersunk to accommodate flat head, stainless steel, #6 machine screw. This screw cannot come undone because the countersunk head is between the aluminum spacer and the oak dowel. This screw provides the point whereby the looped end of the spring will attach.
7) Drilled quantity = 3 9/32\" holes in far end and through oak dowel and 1/4\" thick aluminum spacer, then used #6 x 1\" stainless steel (SS) pan head screws, SS flat washers, SS lock washers and SS nuts to secure dowel and aluminum spacer to rear lawnmower door.
8) The door was replaced by inserting the right side, with spring, to the right side hinge pin. The left side spring was placed over the oak dowel, maneuvered into positing and the left hand hinge was inserted and tightened. The long arm of each spring was then rotated to the retaining catch as provided on either side..
NOTE: Saved the purchase price of a new or used door and enjoyed inventing a very durable solution to a difficult problem.
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
✖
