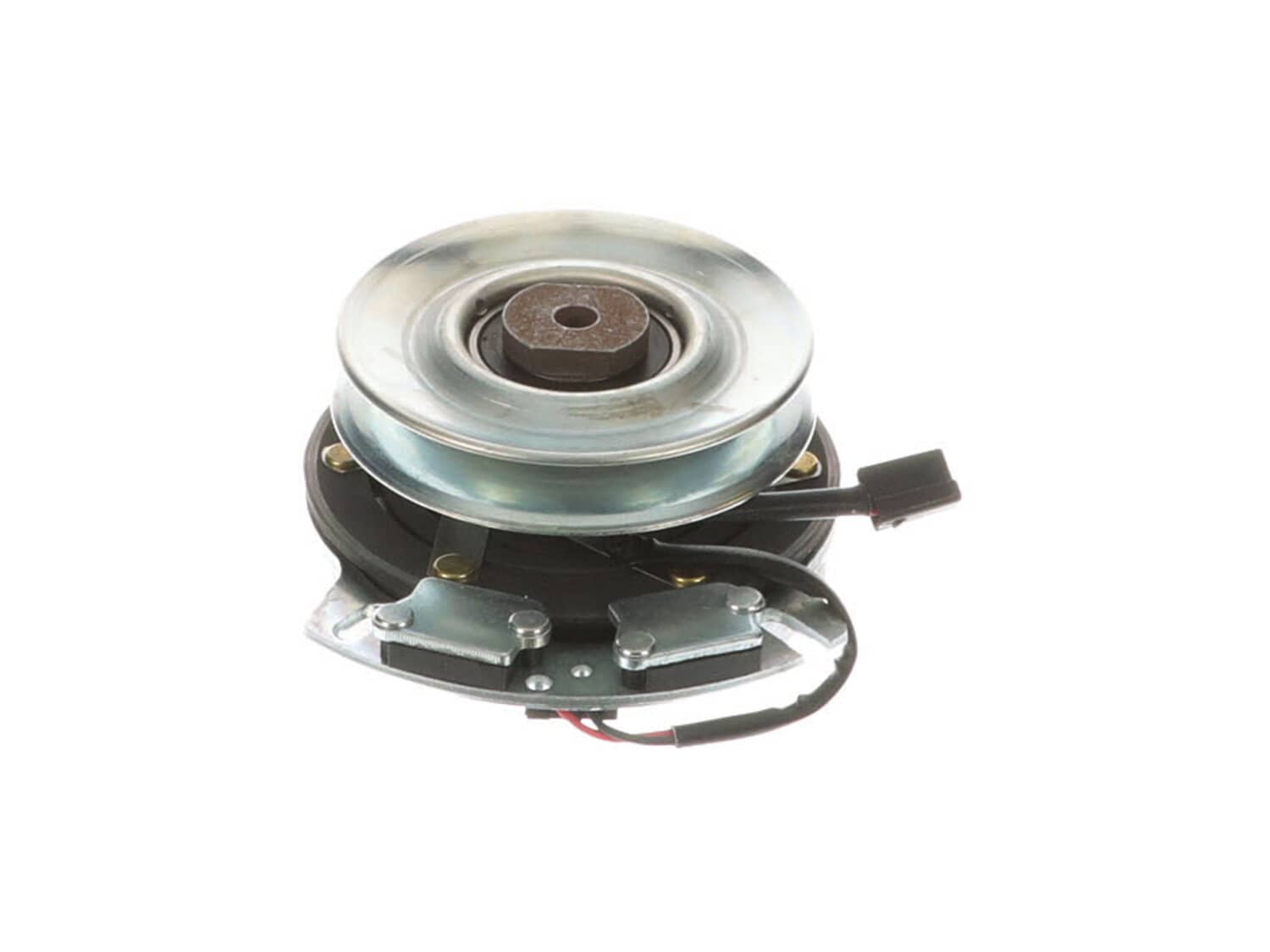

8991270-1-M-Husqvarna-505287301-Clutch
Part Location Diagram of 505287301 Husqvarna Clutch
See part B-12 in the diagram

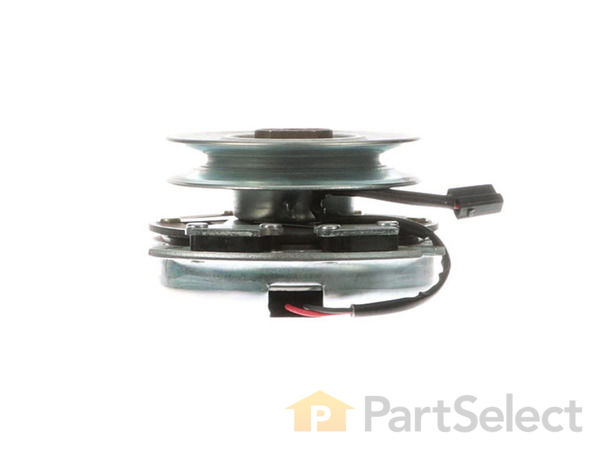

8991270-1-S-Husqvarna-505287301-Clutch 360 view
( Grid squares measure 1x1 inch )

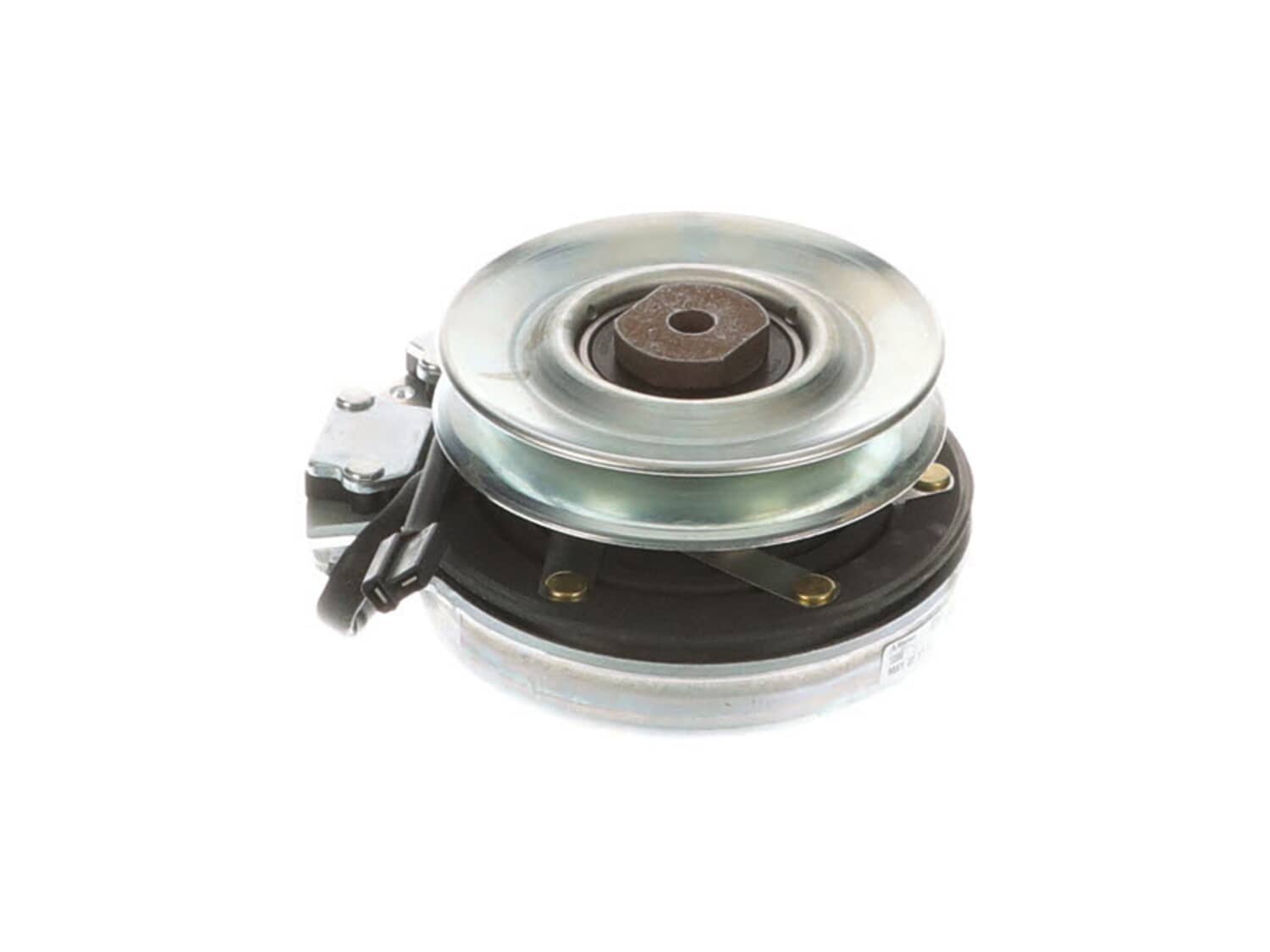

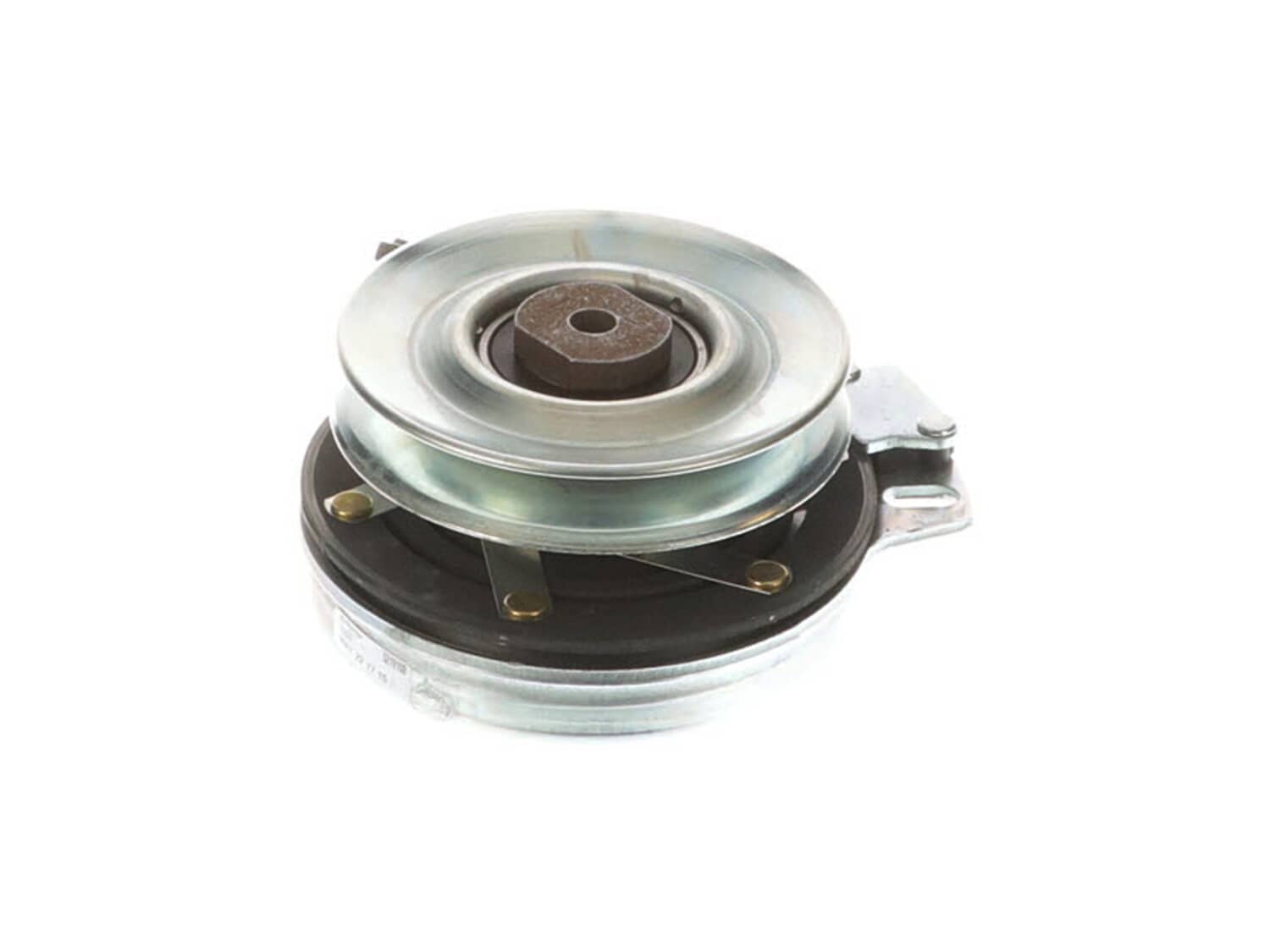

8991270-1-S-Husqvarna-505287301-Clutch 8991270-2-S-Husqvarna-505287301-Clutch 8991270-3-S-Husqvarna-505287301-Clutch 8991270-1-S-Husqvarna-505287301-Clutch 360 view
Part Location Diagram of 505287301 Husqvarna Clutch

Clutch 505287301

Manufactured by:
Husqvarna
ERP Number:
ERP8991270
Part Number:
505287301
Original Equipment Manufacturer ?
$343.51
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

30 - 60 mins

(2 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Description Troubleshooting Repair Instructions Model Cross Reference

Product Description

?

Adjustment and Maintenance Free.

Troubleshooting

This part works with the following brands:
  • Husqvarna
  • Poulan
This part works with the following products:
  • Lawn Mower
  • Lawn Tractor
Part# 505287301 replaces these:
505287301,

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

30 - 60 mins

(2 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Blades didnt engage

Andrew from Clayton, North Carolina

1 person found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Socket set, Wrench set
Parts Used:
596401101, 581332804, 532126197, 510246002, 505287301
Disconnected the battery.
Removed the deck belt
Removed a cross bar from between the hydro drives.
Removed the clutch stop.
Used impact wrench to remove center bolt in clutch.
Did you find this story helpful?
Thank you for voting!

Blades not engaging

Jeff from RHOME, Texas

1 person found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Socket set, Wrench set
Parts Used:
505287301
Tested for power at plug on pigtail to electric clutch
Power and ground were good with switch engaged.
Raised mower. Released blade belt tension by removing idler spring. Used impact wrench to remove pulley bolt, then removed and replaced electric clutch paying attention to key way orientation and housing stop (slot).
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP8991270
Manufacturer Part Number: 505287301
Brand Model Number Description
Husqvarna 460ZX Lawn Mower - Ride-On Mower
Poulan 461ZX Lawn Mower - Zero Turn Mower
Husqvarna 965588401 Lawn Mower - Husqvarna Lawn Mower Model 965588401 Parts
Husqvarna 965880201 Lawn Mower - Husqvarna Lawn Mower Model 965880201 Parts
Husqvarna 965880401 Lawn Mower - Husqvarna Lawn Mower Model 965880401 Parts
Husqvarna 965880501 Lawn Mower - Husqvarna Lawn Mower Model 965880501 Parts
Husqvarna 965880801 Lawn Mower - Husqvarna Lawn Mower Model 965880801 Parts
Husqvarna 965880901 Lawn Mower - Husqvarna Lawn Mower Model 965880901 Parts
Husqvarna 965881001 Lawn Mower - Husqvarna Lawn Mower Model 965881001 Parts
Husqvarna 965881101 Lawn Mower - Husqvarna Lawn Mower Model 965881101 Parts
Husqvarna 965881201 Lawn Mower - Husqvarna Lawn Mower Model 965881201 Parts
Husqvarna 965881301 Lawn Mower - Husqvarna Lawn Mower Model 965881301/2009-01 (965881301/200901, 965881301/2009 01) Parts
Husqvarna 965881401 Lawn Mower - Husqvarna Lawn Mower Model 965881401/2009-01 (965881401/200901, 965881401/2009 01) Parts
Husqvarna 965921501 Lawn Mower - Husqvarna Lawn Mower Model 965921501/2009-01 (965921501/200901, 965921501/2009 01) Parts
Husqvarna 965921601 Lawn Mower - Husqvarna Lawn Mower Model 965921601 Parts
Husqvarna 966495701 Lawn Mower - Husqvarna Lawn Mower Model 966495701/2010-01 (966495701/201001, 966495701/2010 01) Parts
Husqvarna 966503401 Lawn Mower - Husqvarna Lawn Mower Model 966503401 Parts
Husqvarna 966514801 Lawn Mower - Husqvarna Lawn Mower Model 966514801 Parts
Husqvarna 966582301 Lawn Mower - Husqvarna Lawn Mower Model 966582301 Parts
Husqvarna 966582401 Lawn Mower - Husqvarna Lawn Mower Model 966582401 Parts
Husqvarna 966764501 Lawn Mower - Husqvarna Lawn Mower Model 966764501 Parts
Husqvarna 967009801 Lawn Mower - Husqvarna Lawn Mower Model 967009801/2012-01 (967009801/201201, 967009801/2012 01) Parts
Husqvarna 967009802 Lawn Mower - Husqvarna Lawn Mower Model 967009802 Parts
Husqvarna EZ22CE Lawn Tractor - Zero Turn: Consumer
Husqvarna EZ4824 Lawn Mower - Husqvarna Lawn Mower Model EZ4824/2009-01 (EZ4824/200901, EZ4824/2009 01) Parts
Husqvarna EZ4824965880401 Lawn Tractor - Ez 4824 965880401, 2009-09
Husqvarna EZ4824BF Lawn Mower - Husqvarna Lawn Mower Model EZ4824BF/2010-03 (EZ4824BF/201003, EZ4824BF/2010 03) Parts
Husqvarna EZ5221 Lawn Mower - Husqvarna Lawn Mower Model EZ5221 Parts
Husqvarna EZ5226 Lawn Mower - Husqvarna Lawn Mower Model EZ5226/2009-01 (EZ5226/200901, EZ5226/2009 01) Parts
Husqvarna EZC4824 Lawn Mower - Husqvarna Lawn Mower Model EZC4824 Parts
