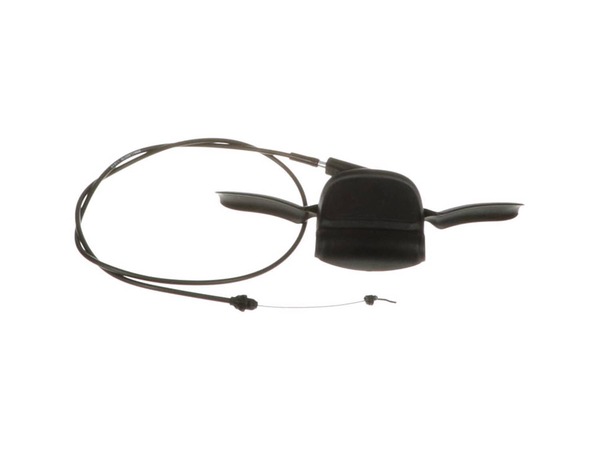

This authentic item is supplied directly from the original equipment manufacturer for use with Husqvarna lawn mowers. It is an identical replacement for a missing or a faulty control assembly that was installed on a new unit. This is a complete component that includes the rubber insulated cord and the control handle. Please make sure to refer to the appropriate diagrams of your model for the correct location and application of this part. Keep in mind this high-quality control assembly is sold individually.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Worked very good.
The part is working great and lawn mower is running perfect.
Guest - June 23, 2019
Verified Purchase
★★★★★
★★★★★
Perfect and Early
The part was exactly what I ordered plus it arrived 4 days earlier. Definitely will use your site again =ƒÿè
Michelle - July 10, 2019
Verified Purchase
★★★★★
★★★★★
Good fit of new part
Part fit correctly. I had to call mechanic friends for difficult installation.
Guest - September 23, 2019
Verified Purchase
★★★★★
★★★★★
Broken Control Lever
Replacement part arrived quickly. Since all I needed was the lever, I saved the time and took this apart, removed the lever and replaced it on the existing control. Saved a lot of time and aggravation replacing the whole unit.
Guest - November 7, 2019
Verified Purchase
★★★★★
★★★★★
Perfect Fit
I was thinking that I would have to push and now its self propelled again
Guest - December 14, 2019
Verified Purchase
★★★★★
★★★★★
Got what I ordered
easy to read specs so I got what I order, arrived on time and in perfect shape.
Guest - May 4, 2020
Verified Purchase
★★★★★
★★★★★
Perfect for my husqvarna model #HU800AWD It now performs like new.
This part was the perfect replacement after one of my handles broke. I have a husqvarna model # HU800AWD It now performs like new. So happy made this purchase and did it myself in about 40 minutes. Thank you!
Guest - May 5, 2020
Verified Purchase
★★★★★
★★★★★
Easy repair
Bolt on bolt off. Super easy. Only downfall was shipping price.
Guest - July 15, 2020
Verified Purchase
★★★★★
★★★★★
Perfect!!=ƒæì=ƒæì
The part I ordered worked perfect, an exact fit!!=ƒæì=ƒæì
Guest - July 20, 2020
Verified Purchase
★★★★★
★★★★★
Take control again
Perfect fit and function. The straightforward and easy install.
Guest - October 31, 2020
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed broken hand control, disconnected control cable, connected control cable to new hand control and reattached to mower. This repair only requires removal and reinstall of six screws.
Did you find this story helpful?
Thank you for voting!
Clutch/speed control broken actuator arm on one side - Huskvarna AWD
1. Removed the actuator and inspect.
2. Removed the cable attachment in the deck and the transmission link. Cable attachment in the deck best done from below by squeezing the plastic grippers and pushing it up through the deck.
3. Replaced the control on the handle bar.
4. Reattached the cable and reattached the link to
... Read morethe transmission.
5. Started the engine and tested the clutch operation - OK!
1) Adjusted cable tension to maximum free play.
2) Removed 4 screws from handlebar wheel drive control.
3) Removed 3 cable zip ties and 2 plastic cable clamps from mower bar.
4) Tilted mower on side and disconnected drive cable from bottom of mower
5) Using needle nosed pliers, squeezed underside of plastic
... Read morecable anchor and pushed upwards and out to free cable from mower chassis.
6) Reverse steps to install new cable.
7) Adjust drive tension on new cable.
8) Removed mower blade nut.
9) Removed mower blade.
10) Installed new blade.
11) Tightened mower blade nut.
**Complete**
Read less
Did you find this story helpful?
Thank you for voting!
Replace drive control handle and attached cable with spriing
1. Disconnected spark wire from plug
2. Drained fuel from tank into container for reuse.
3. Lifted mower to expose cover fasteners on underside.
4. Removed cover fasteners on top of mower housing and underside and removed cover
taking care not to loose lightweight spring attached to cover and transmission ho
... Read moreusing.
5. Removed old cable and control handle. Save screws and steel base plate to reuse.
6. Attached new control handle using the old steel base plate and some old screws.
7. Replaced cable with spring end and lightweight spring.
8. Replaced cover.
9. Lowered mower and added fuel.
10. Started and tested drive.
11. Adjusted drive
1. Removed old control head.
2. Tipped mover over onto right side.
3. Removed blade.
4. Removed rear cover.
5. Removed old control cable.
6. Installed new control cable.
7. Replaced rear cover and blade.
8. Righted mower.
9. Installed control head.
Super easy! Took the old control box off which was only a couple screws. Unhooked the old tension cable from underneath the deck by the back tires which was only held on by a spring. Put the new stuff on the same way everything came off. The whole thing took about 10 minutes.
1. Read to remove blade and shroud covering underside where cable comes through. Did remove blade but could not get shroud off because I didn\'t have a large enough socket with me. Moved on to plan B.
2. Because I couldn\'t get the shroud off, I cut the cable and pushed it through the top to get it out.
3. Removed spring with
... Read moreneedle nose pliers.
4. Removed existing, broken transmission assembly.
5. Pushed new cable through existing hole.
6. Had to loosen tension cable to have enough slack to get cable end fitting in proper hole with needle nose pliers..
7. Reassembled transmission box and installed on handle.
8. Reinstalled spring with needle nose pliers.
9. Started mower and tested with success.
People with smaller hands may be able to do this repair a little easier. I have bratwurst for fingers making it tricky. Much easier if you can put the mower up on a bench or similar. Patience! $50 part and probably saved $100 in labor.
1. Removed old unit and cable
2. Placed new unit on and attached new cable to drive mechanism.
Really pretty straightforward. Inserting the cable into the drive mechanism was a bit trying due to tight space and limited maneuverability, but I eventually succeeded.
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP16378265
Manufacturer Part Number: 589818807
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
