Part Location Diagram of 903005001 Homelite Grass Bag
See part A-22 in the diagram
( Grid squares measure 1x1 inch )

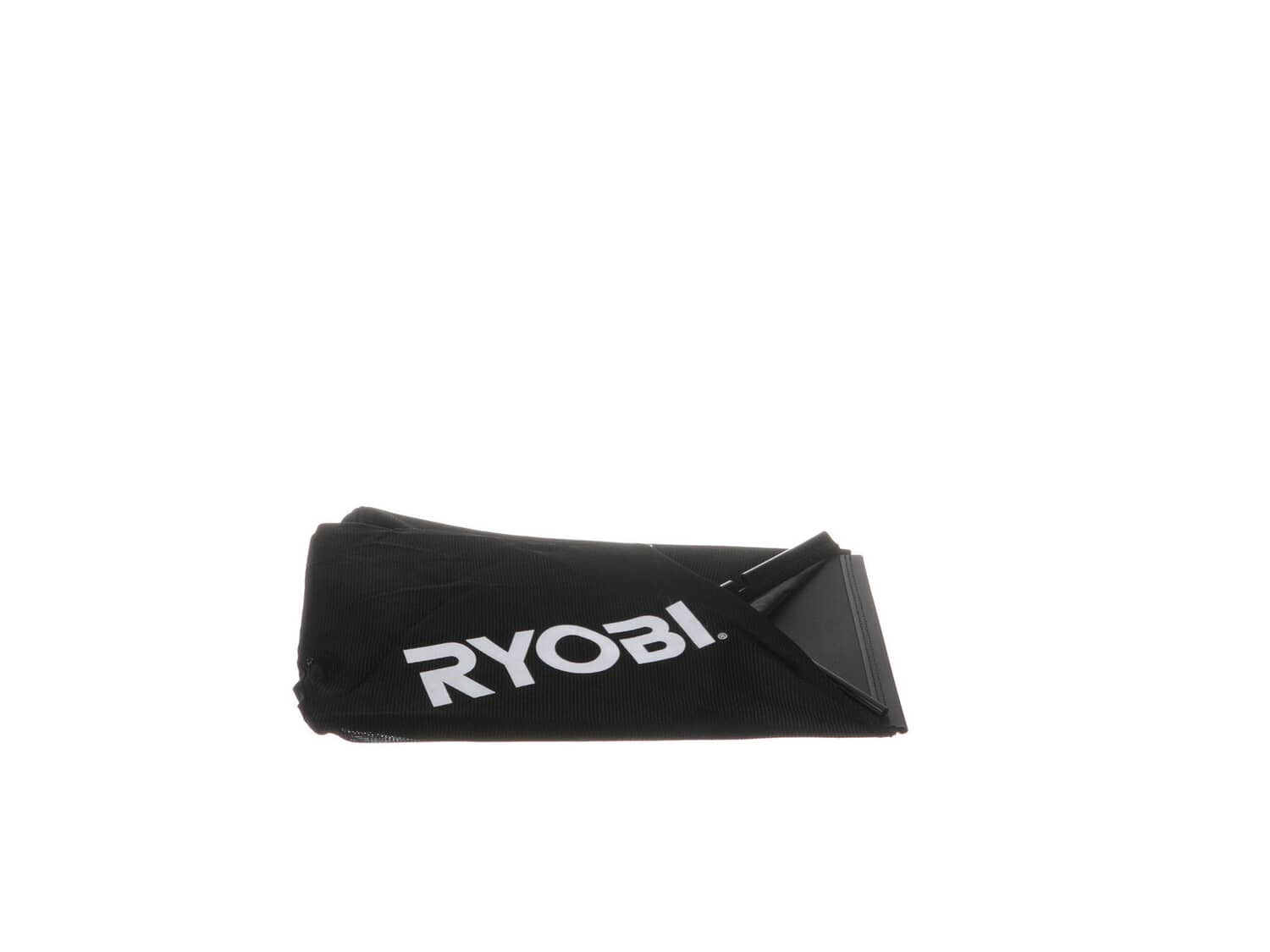

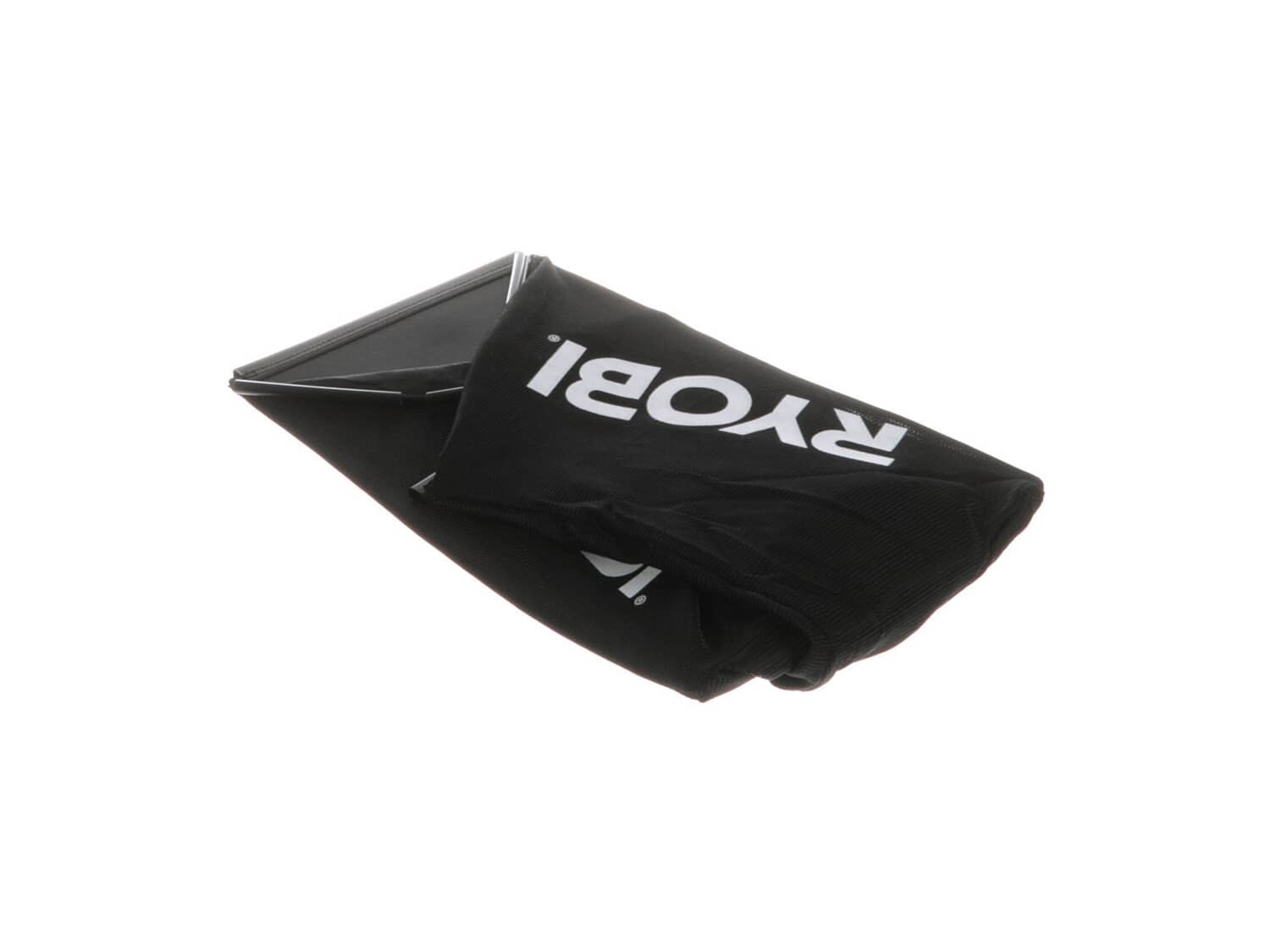

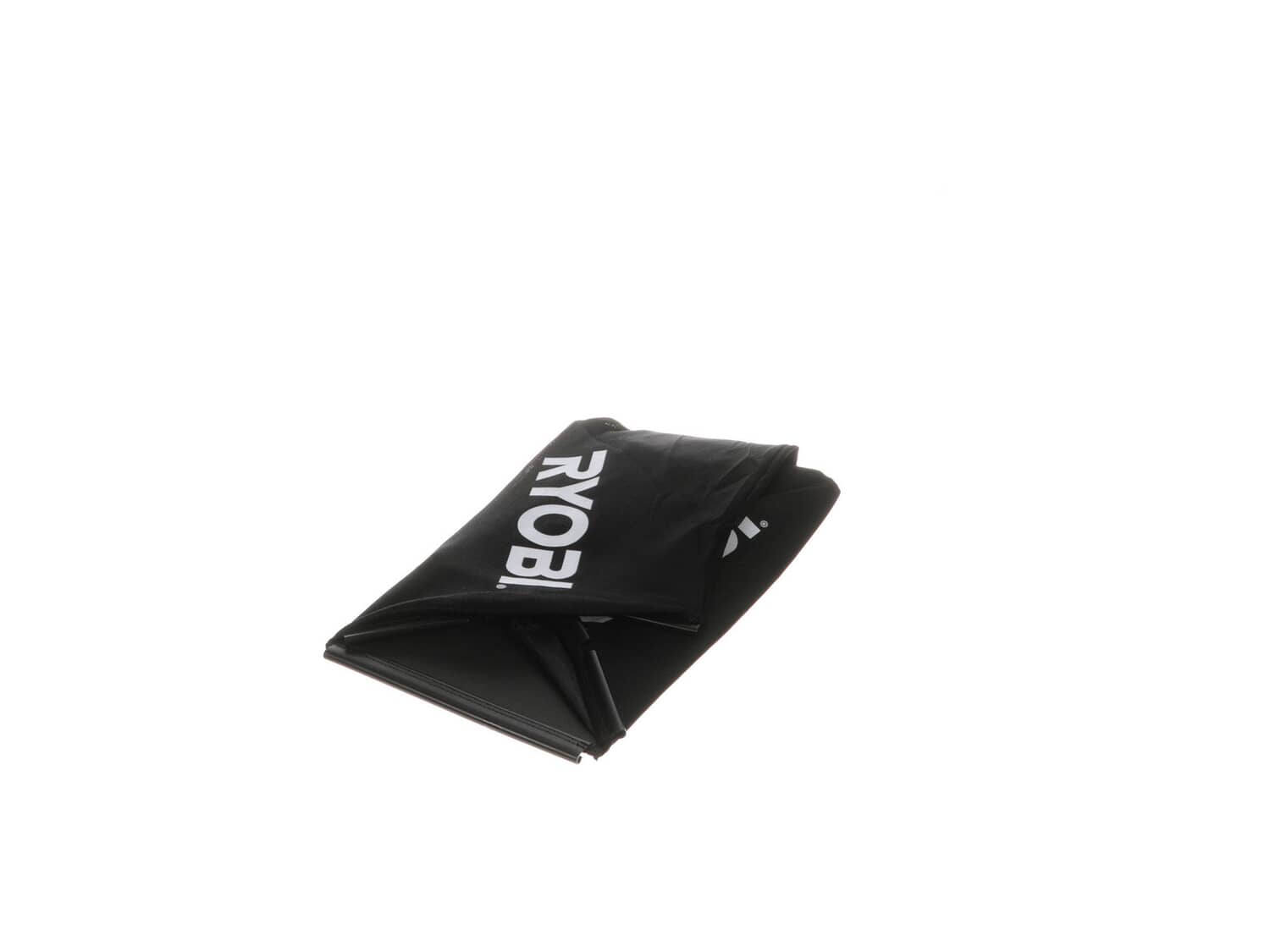

Grass Bag 903005001

Manufactured by:
Homelite
ERP Number:
ERP16448133
Part Number:
903005001
Original Equipment Manufacturer ?
$64.72
In Stock
Delivers in 3-5 Business Days!

Easy

15 - 30 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Product Description

?

This is an OEM replacement part for Ryobi lawn mowers. The grass bag collects grass clippings that are cut by the blade, making disposal quick and easy. The bag is made of thick canvas martial with an outer layer of mesh for ventilation. This part is sold individually and does not come with the grass bag frame, which is sold separately (part # 635385001). No tools are required to install this part, simply line up the hole to the back of the mowing deck and snap into place.

Troubleshooting

This part works with the following brands:
  • Homelite
  • Ryobi
This part works with the following products:
  • Lawn Mower
Part# 903005001 replaces these:
903005001,

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Grass catch bag was missing

Roger from Hurst, Texas

2 of 3 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
Parts Used:
903005001, 635385001
Installed grass bag on frame.
hooked grass catch bag on mower deck.
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP16448133
Manufacturer Part Number: 903005001
Brand Model Number Description
Ryobi RY40107 Lawn Mower - 20 In. 40 Volt Lawn Mower
