Part Location Diagram of 1-413113 Toro Bushing-Idler
See part B-8 in the diagram

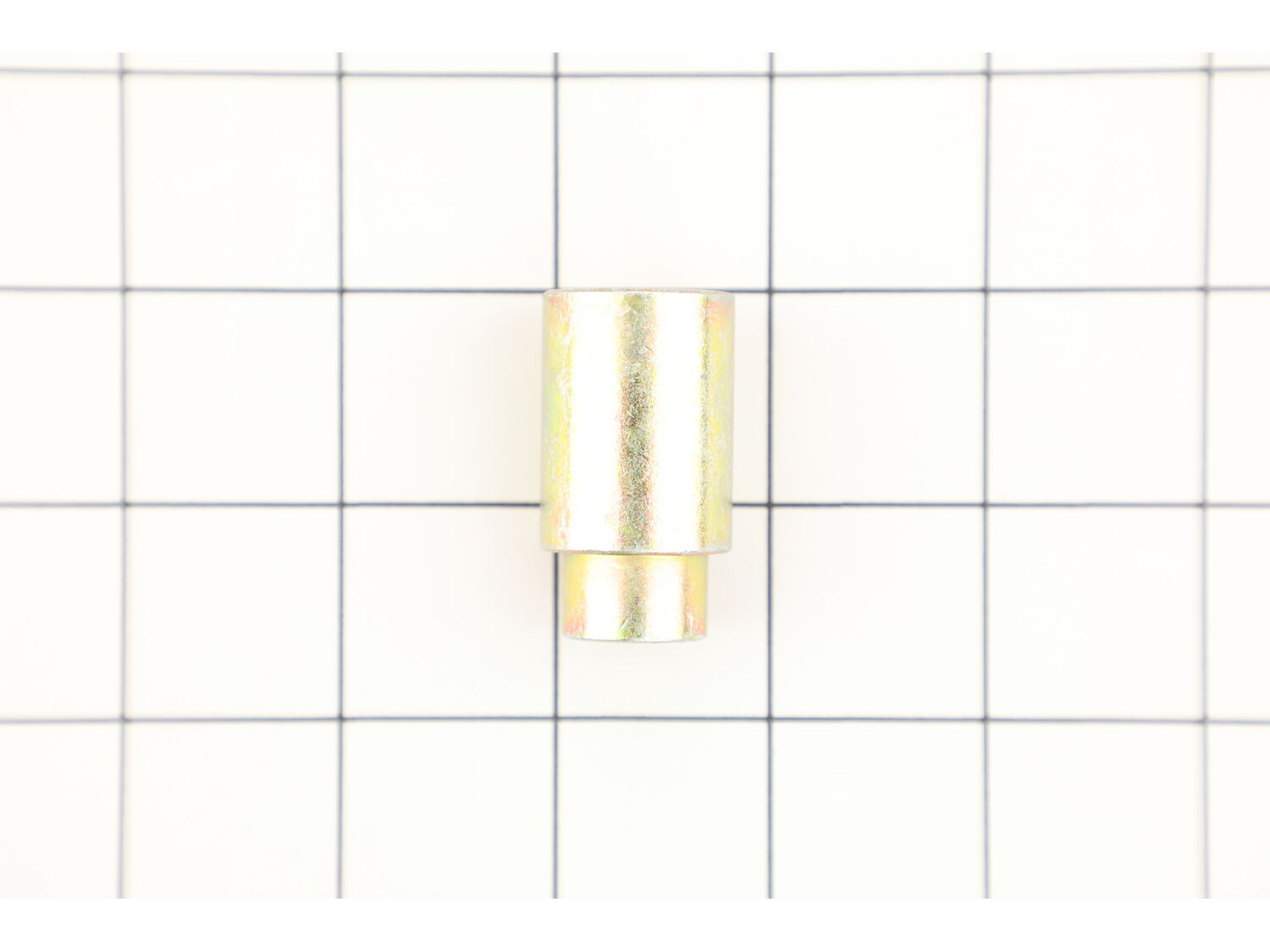

( Grid squares measure 1x1 inch )

Bushing-Idler 1-413113

Manufactured by:
Toro
ERP Number:
ERP8811429
Part Number:
1-413113
Original Equipment Manufacturer ?
  Works with your model  M16KA322PCA!
$8.20
Special Order
  Works with your model   M16KA322PCA!

Troubleshooting

This part works with the following brands:
  • Exmark
  • Toro
This part works with the following products:
  • Lawn Mower
  • Lawn Tractor
  • Lawn Tractor Accessories
Part# 1-413113 replaces these:
1-403184, 1-413113, E403184,

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Model Cross Reference

This part works with the following models:
ERP Number: ERP8811429
Manufacturer Part Number: 1-413113
Brand Model Number Description
Toro 02710 Lawn Tractor - 81cm (32in) Mid-Size Rear-Discharge Deck.
Toro 02711 Lawn Tractor - 91cm (36in) Mid-Size Rear-Discharge Deck.
Toro 02712 Lawn Tractor - 122cm (48in) Mid-Size Rear-Discharge Deck.
Toro 2710 Lawn Tractor Accessories - 32rd Mid-Size Rear-Discharge Deck
Toro 2711 Lawn Tractor Accessories - 36rd Mid-Size Rear-Discharge Deck
Toro 2712 Lawn Tractor Accessories - 48rd Mid-Size Rear-Discharge Deck
Toro 30140 Lawn Mower - Mid-size Proline T-bar Gear, 15 Hp With 48in Side Discharge Mower, 2004
Toro 30195 Lawn Mower - Mid-size Proline Gear, 15 Hp W/ 48-in. Sd Mower, 2003
Toro 30196 Lawn Mower - Mid-size Proline Gear, 14 Hp W/ 48-in. Sd Mower, 2000
Toro 30197 Lawn Mower - Mid-size Proline Gear, 15 Hp W/ 48-in. Sd Mower, 2000
Toro 30523 Lawn Mower - Mid-size Mower, Proline Pistol Grip Gear 15 Hp W/ 48-in. Sd Mower, 2002
Toro 30526 Lawn Mower - Mid-size Mower, Proline Pistol Grip Hydro 15 Hp W/ 48-in. Sd Mower, 2002
Toro 30528 Lawn Mower - Mid-size Mower, Proline Pistol Grip Hydro 15 Hp W/ 48-in. Sd Mower, 2003
Toro 30530 Lawn Mower - Mid-size Mower, Proline Pistol Grip Gear 15 Hp W/ 48-in. Sd Mower, 2003
Toro 30531 Lawn Mower - Mid-size Proline Pistol Grip Gear, 15 Hp With 48in Side Discharge Mower, 2004
Toro 30638 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck, Pistol Grip, Gear Drive With 48in Turbo Force Cutting Unit, 2010
Toro 30678 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck, T-bar, Gear Drive With 48in Turbo Force Cutting Unit, 2010
Toro 30686 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck Pistol Grip Gear With 40in Turbo Force Cutting Unit, 2006
Toro 30688 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck Pistol Grip Gear With 48in Turbo Force Cutting Unit, 2007
Toro 30696 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck T-bar Gear With 40in Turbo Force Cutting Unit, 2006
Toro 30698 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck T-bar Gear With 48in Turbo Force Cutting Unit, 2006
Toro 30938 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck, Pistol Grip, Hydro Drive With 48in Turbo Force Cutting Unit, 2010
Toro 30986 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck Pistol Grip Hydro With 40in Turbo Force Cutting Unit, 2006
Toro 30988 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck Pistol Grip Hydro With 48in Turbo Force Cutting Unit, 2006
Toro 30989 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck Pistol Grip Hydro With 52in Turbo Force Cutting Unit, 2006
Toro 38696 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck, T-bar, Gear Drive With 40in Turbo Force Cutting Unit, 2009
Toro 38988 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck, Pistol Grip, Hydro Drive With 48in Turbo Force Cutting Unit, 2009
Toro 39638 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck, Pistol Grip, Gear Drive With 48in Turbo Force Cutting Unit, 2011
Toro 39678 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck, T-bar, Gear Drive With 48in Turbo Force Cutting Unit, 2016
Toro 39688 Lawn Mower - Commercial Walk-behind Mower, Fixed Deck, Pistol Grip, Gear Drive With 48in Turbo Force Cutting Unit, 2008
