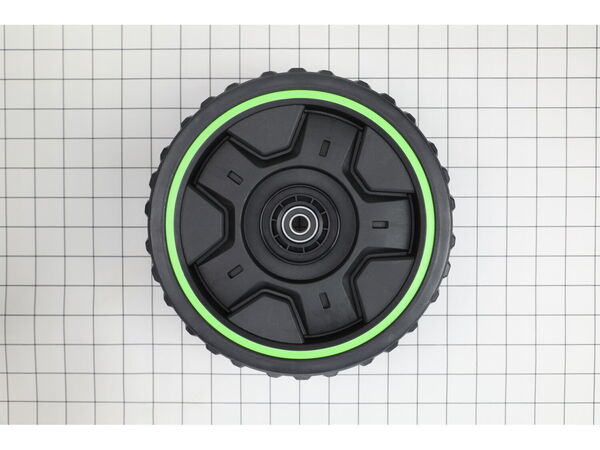

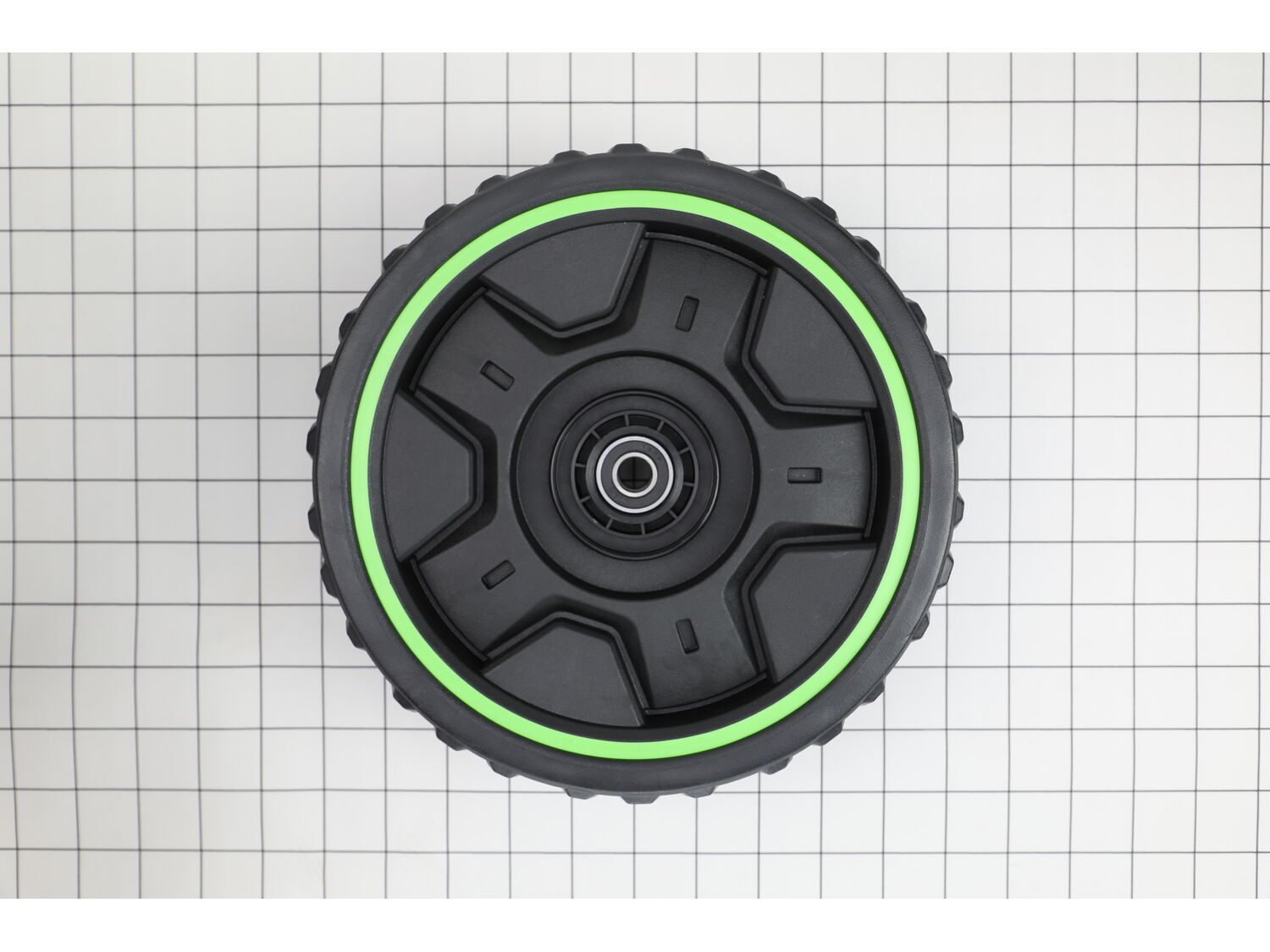

This is a single OEM rear wheel assembly for a lawnmower. It is a black wheel with a green stripe along the rim. This wheel features a single gear and an outer white ring gear. Be sure to remove the battery pack before servicing your lawnmower. To replace the wheel, start by turning the mower on the side. Use a flat-blade screwdriver to remove the dust cover from the wheel. Next, use an adjustable or 1/2-Inch (13mm) wrench and turn the bolt counterclockwise to remove it. Remove the bolt, damaged wheel, and wave washer from the wheel axle. If you are replacing the rear wheel for the self-propelled mower, remove the drive gear from the damaged wheel and assemble to the new wheel with the 3 screws. Next, mount the wave washer and the new wheel on the wheel axle with the round recess facing outward. Lock the wheel with the bolt by tightening the bolt in a clockwise motion. Finally, mount the dust cover onto the wheel and push into position.
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
| Brand | Model Number | Description |
|---|---|---|
| Ego | LM2020SP | Lawn Mower - 20-Inch Self-Propelled Mower With Steel Deck |
| Ego | LM2100SP | Lawn Mower - 21-Inch Self-Propelled Mower |
| Ego | LM2110SP | Lawn Mower |
| Ego | LM2120SP | Lawn Mower - 21-Inch Self-Propelled Mower |
| Ego | LM2130SP | Lawn Mower |
| Ego | LM2140SP | Lawn Mower |
| Ego | LM2150SP | Lawn Mower |
