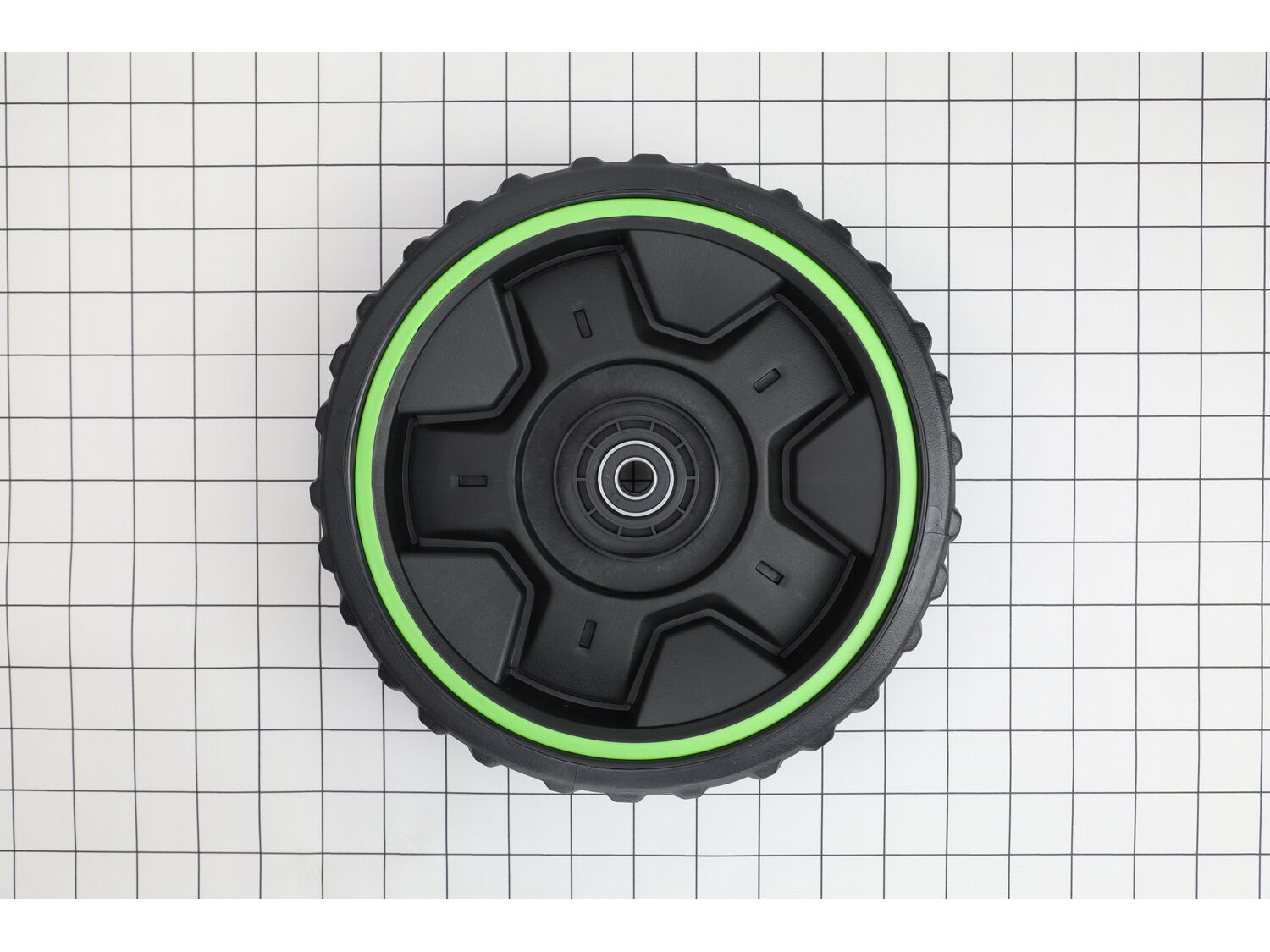

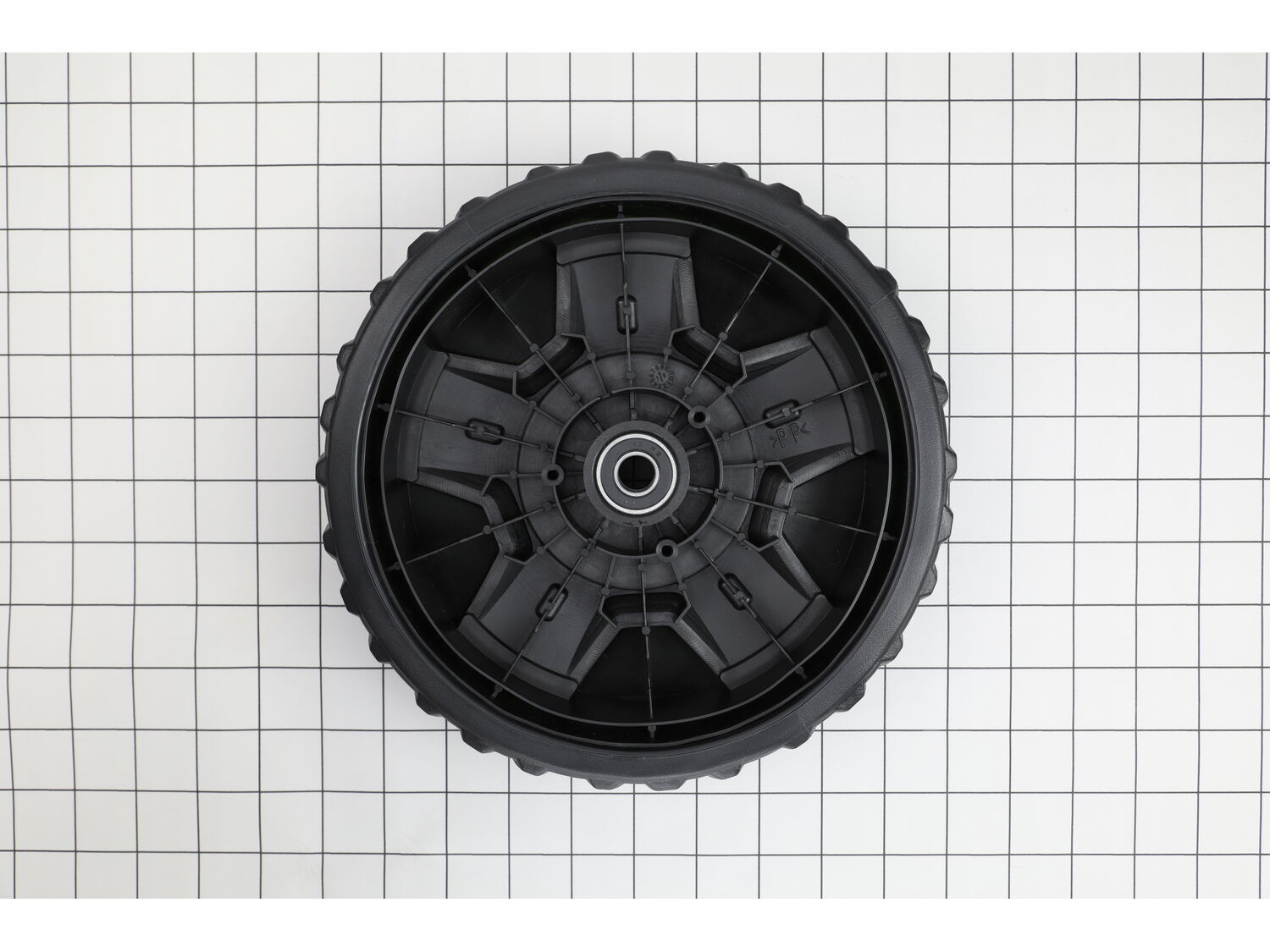

This is an individual rear wheel assembly for a lawnmower. The front wheels are a slightly smaller size than the rear wheels, so make sure you are ordering the correct wheel. It is black in color with a green stripe along the rim. The wheels should be inspected prior to each use to ensure safety. If they appear worn, or have become loose, it will need to be replaced. Before beginning this repair, remove the battery pack. Turn the mower on its side. Use a flat blade screwdriver to remove the dust cover off the wheel. Then use an adjustable or 1/2-inch (13mm) wrench to turn the bolt counter clockwise. Remove the bolt, damaged wheel, and the washers from wheel axle. Now mount the washers and the replacement wheel on the wheel axle, with the round recess facing forward. Lock the wheel with the bolt by tightening it clockwise. Finally, mount the dust cover onto the wheel and push it in place. Keep in mind that bearings on the rear and front wheels should be lubricated once a season.
Questions & Answers
?
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Hello Gretchen, thank you for your question. For the rear wheel you would need the Wheel Assembly 2824430001. The front wheel is no longer available. Those are the only two listed within your model.
Hi Roger, Thank you for your question. The part number for the wheel assembly is 2824430001. We hope this helps!
Hello Tony, Thank you for your inquiry. We have linked the rear wheel and gear as related parts. Good luck with your repair.
