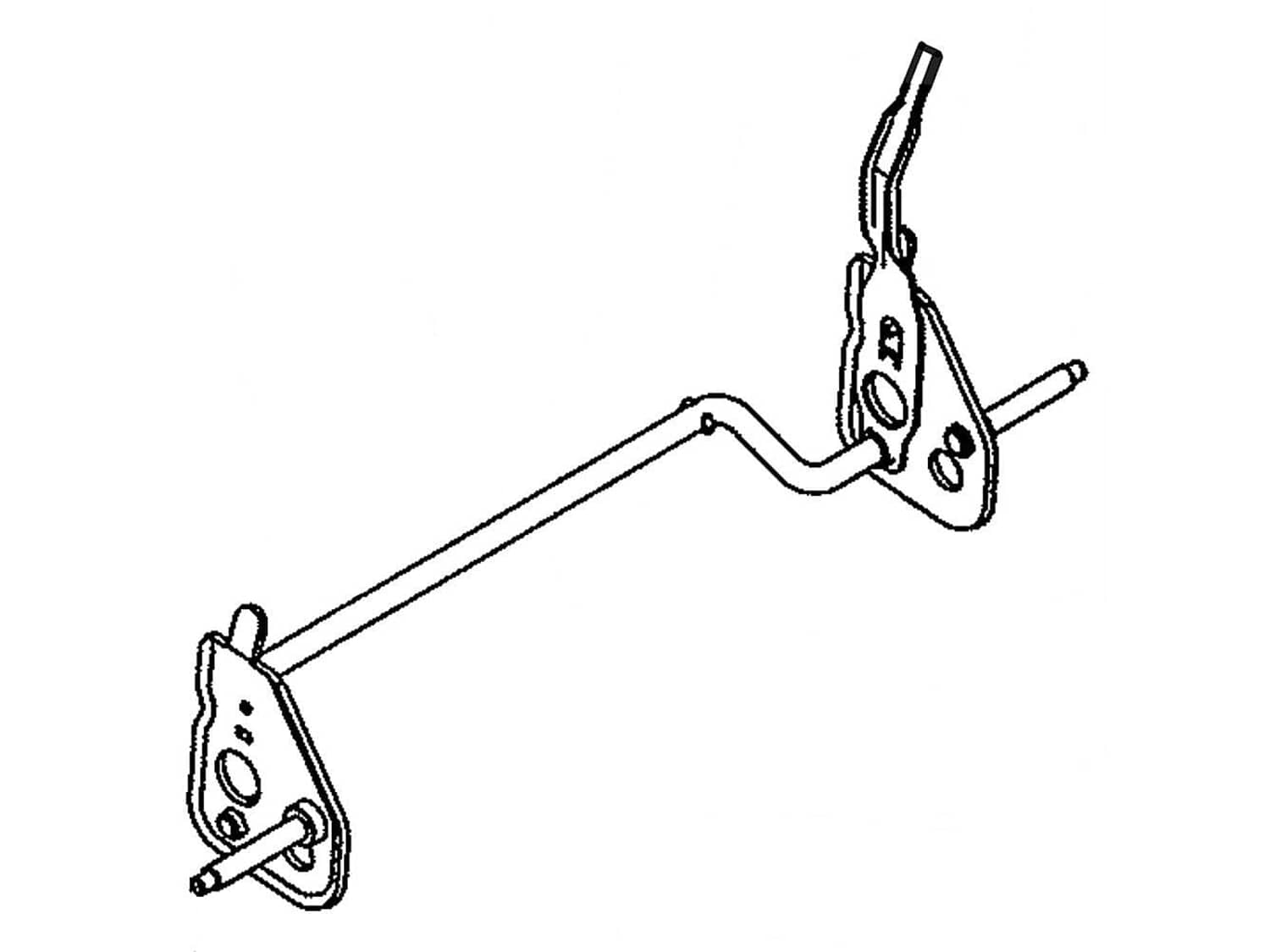

Part Location Diagram of 611-05088 MTD Rear Axle Assembly
See part 2 in the diagram
( Grid squares measure 1x1 inch )

Rear Axle Assembly 611-05088

Manufactured by:
MTD
ERP Number:
ERP16386149
Part Number:
611-05088
Original Equipment Manufacturer ?
$105.79
Special Order

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Cub Cadet
  • Craftsman
  • MTD
  • Troy-Bilt
This part works with the following products:
  • Lawn Mower
Part# 611-05088 replaces these:
611-05088, 611-05088-CM,

Model Cross Reference

This part works with the following models:
ERP Number: ERP16386149
Manufacturer Part Number: 611-05088
Brand Model Number Description
Troy-Bilt 1153676 Lawn Mower - 1153676 - Self Propelled Mowers
Troy-Bilt 1179839 Lawn Mower - 1179839 - Self Propelled Mowers
MTD 12ABW32G897 Lawn Mower - Lawn Mower
MTD 12ABW35T799 Lawn Mower - Lawn Mower
Cub Cadet 12ACW62R709 Lawn Mower - Cc 600 Self Propelled Walk Behind Mower
Cub Cadet 12ACW62R710 Lawn Mower - Cc 600 Self Propelled Walk Behind Mower
Cub Cadet 12ACW62R756 Lawn Mower - Cc 600 Self Propelled Walk Behind Mower
Cub Cadet 12ACW6M9710 Lawn Mower - 12acw6m9710 Cc 600 (2020)
Craftsman 247397900 Lawn Mower - Pro Series 28" Lawn Mower
Troy-Bilt 513638 Lawn Mower - 513638 - Walk Behind Mowers
Cub Cadet CC600 Lawn Mower - Cc 600 (12acw62r709) (2018)
Craftsman CMXGMAM1136528 Lawn Mower - Lawn Mower
Craftsman CMXGMAM201202 Lawn Mower - Lawn Mower
Craftsman M430 Lawn Mower - Walk-Behind Mower
