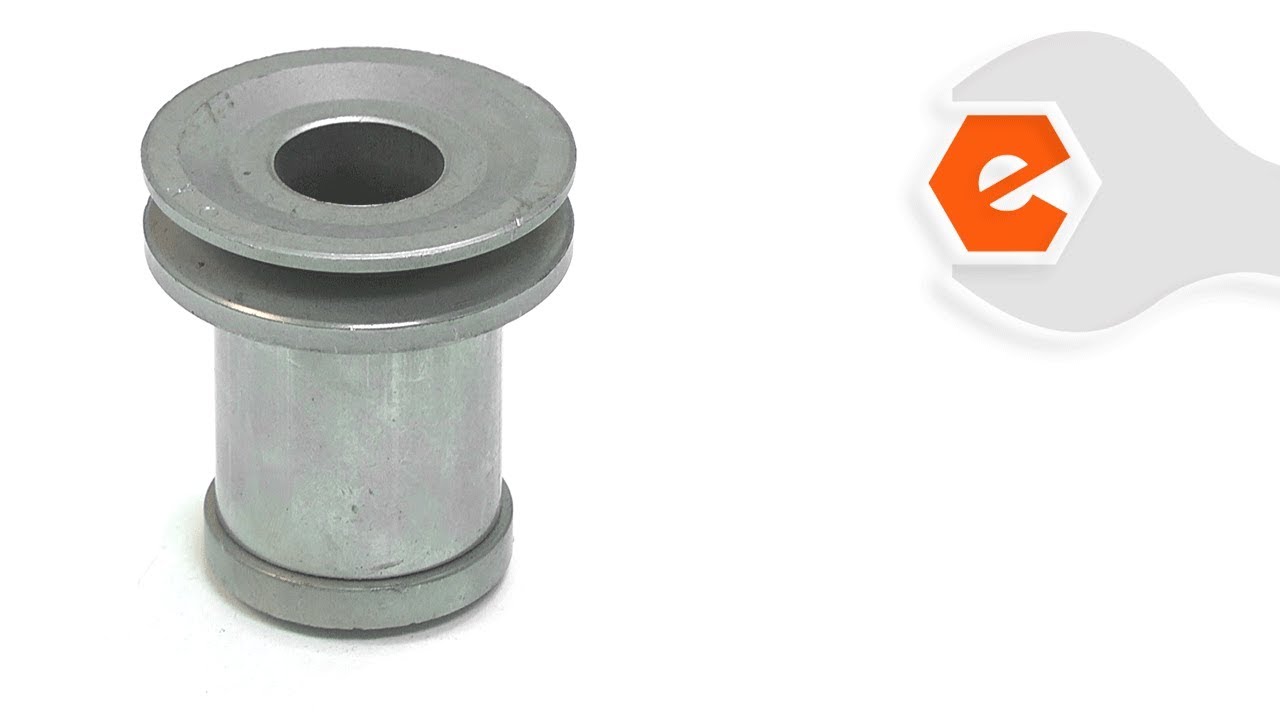

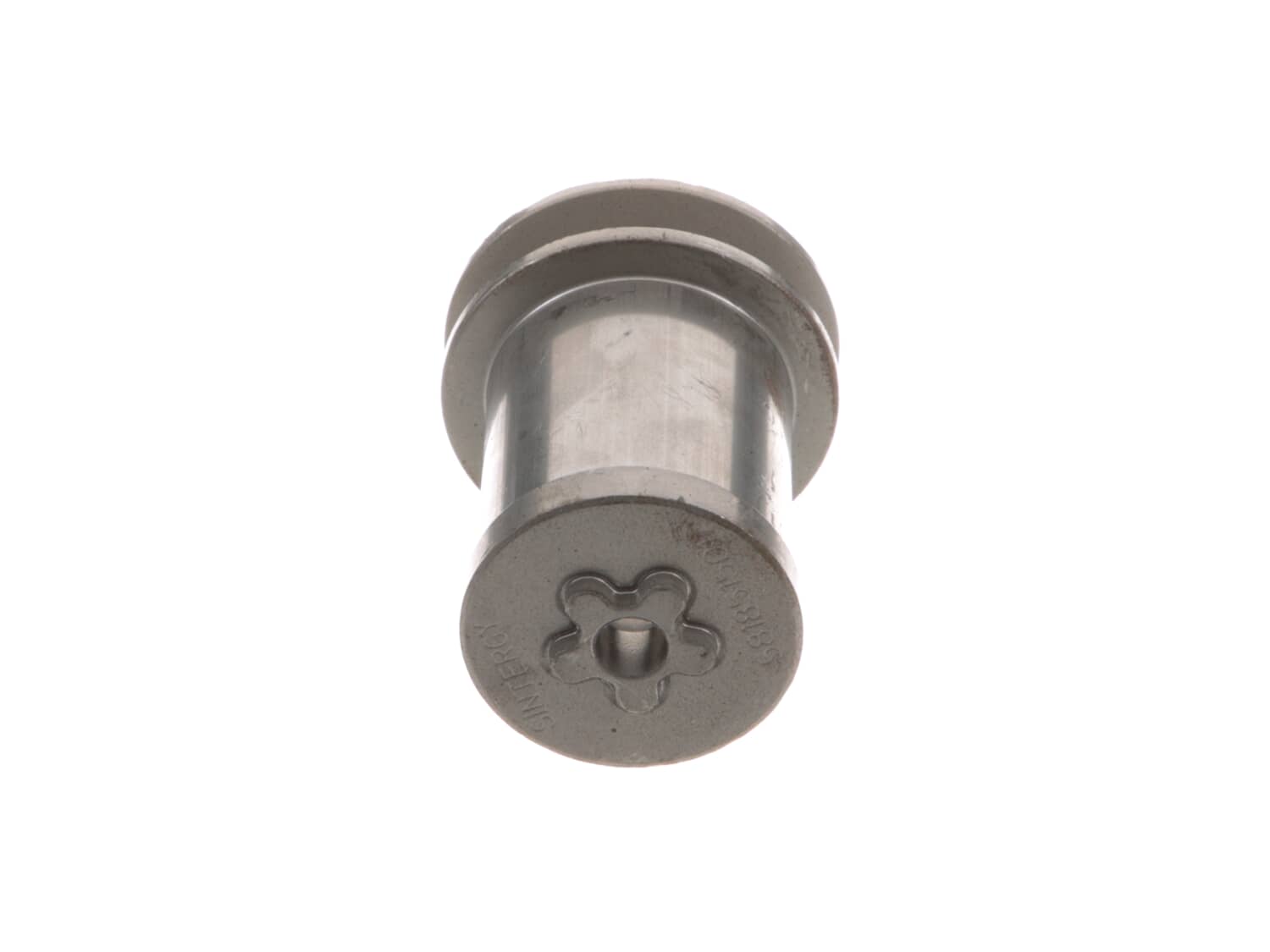

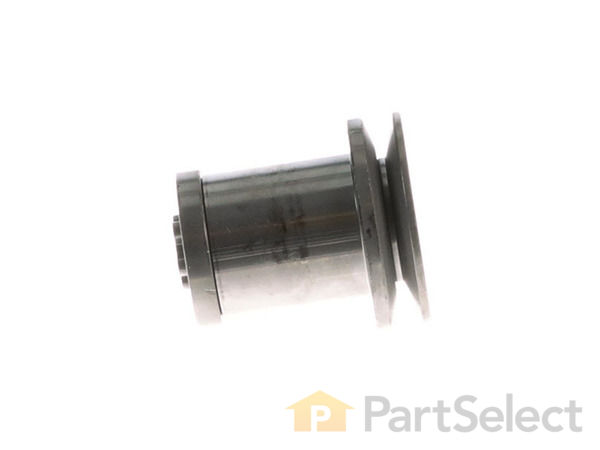

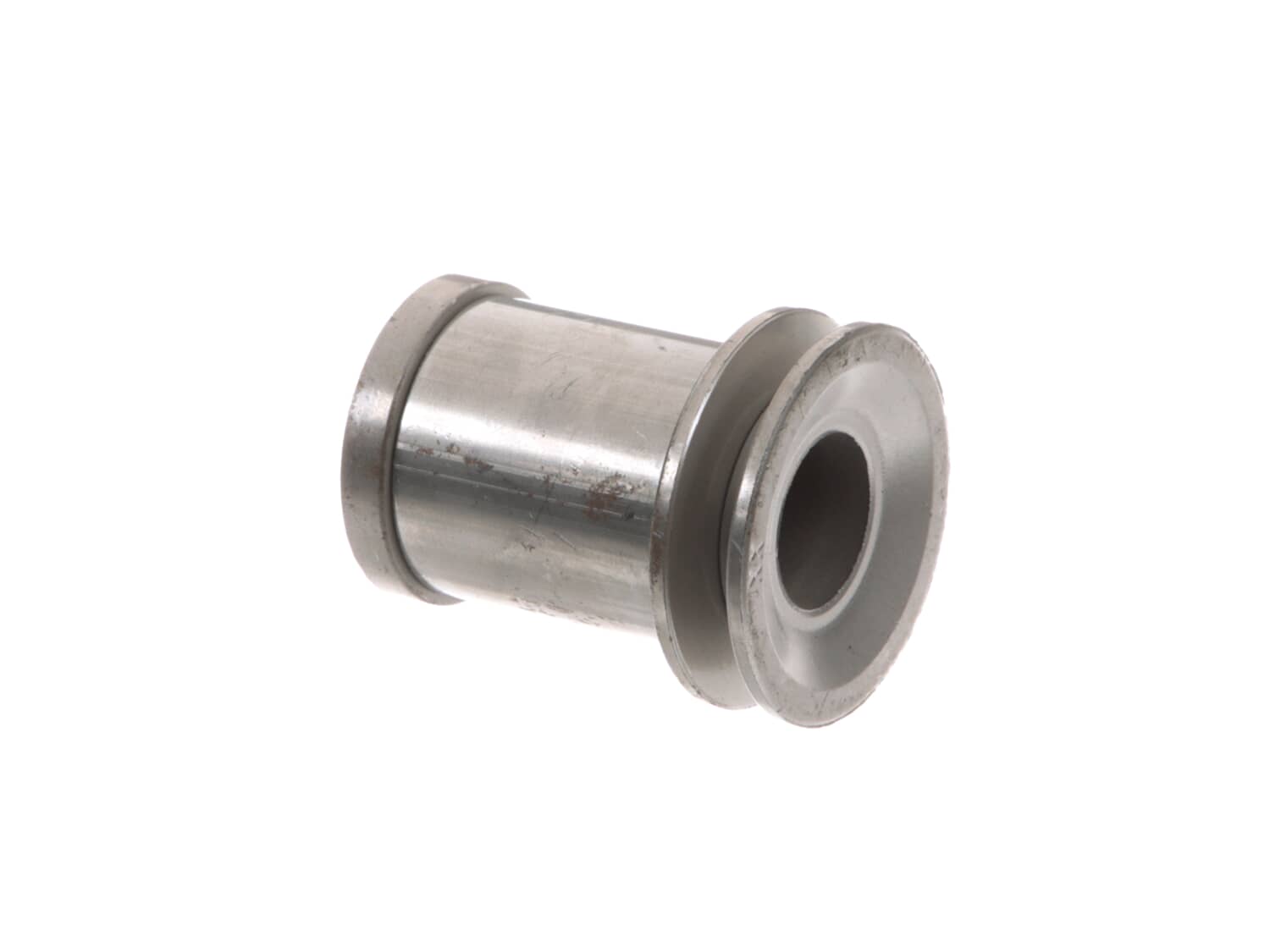

This Genuine OEM blade adapter is a manufacturer-sourced replacement part designed for use with select Craftsman lawn mowers. Made from durable metal and sold individually, this component serves as a direct replacement for a missing or faulty adapter, allowing the user to securely attach the mower blade to the engine shaft. A properly functioning blade adapter is essential for safe and efficient cutting performance.

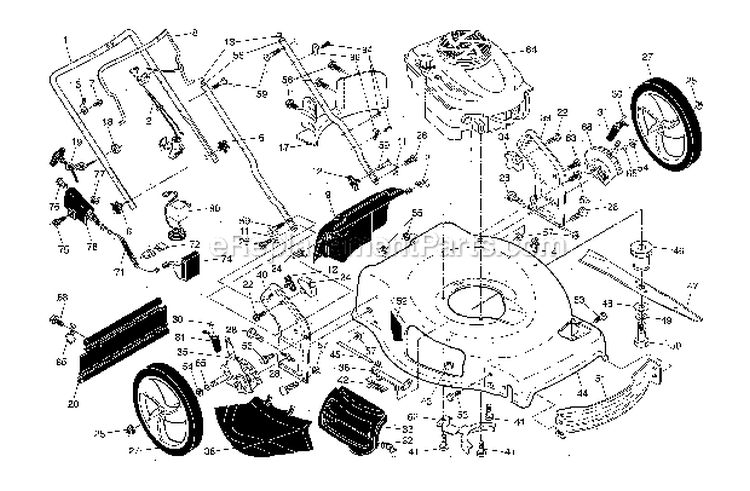

To ensure correct fit and application, please refer to your model’s parts diagram or owner’s manual before ordering. Replacing a worn or damaged adapter helps maintain blade stability and overall mower reliability.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
blade adapter
Ordered the part on 23 March, shipped the same day. However, it took Fed Ex until 7 April to get it. Contacted Fed Ex cs website delay was due to damaged shipping label. Made it to Grove City Oh then shipped to Clinton Pa. Reason for delay...weather. (Grove City is in Ohio south of Newton Falls.) As far as I know, there was no catachismic weather disaster, the airports were not closed and I 71, I 77 and I 75 were intact. Just an FYI.
Guest - April 7, 2021
Verified Purchase
★★★★★
★★★★★
Easy repair
Part came quickly, easy to put on and I have my mower back!!!
Guest - June 28, 2021
Verified Purchase
★★★★★
★★★★★
Just what I needed
Brand new, perfect fit
Guest - July 4, 2022
Verified Purchase
★★★★★
★★★★★
worked as expected
easy product identification, selection, and ordering from e-replacement
Guest - July 18, 2022
Verified Purchase
★★★★★
★★★★★
Replaced worn out part
Ordering was easy and it fit perfect!
Guest - July 14, 2022
Verified Purchase
★★★★★
★★★★★
Great service-on time delivery
The service was great. the part was in good condition, arrived on time, very easy to install. now the lawnmower is up and running.
Guest - August 2, 2022
Verified Purchase
★★★★★
★★★★★
Quality part, easy fix, fast shipping
Fit like a glove. 5 minute job and running again
Guest - October 8, 2022
Verified Purchase
★★★★★
★★★★★
Mower blade adapter
The part was exactly like original, and seems to be holding up well. I had purchased 2 online at similar prices from other suppliers that failed on first use.
Guest - December 19, 2024
Verified Purchase
★★★★★
★★★★★
Worked as expected
The part was a perfect fit and arrived early
Guest - April 28, 2019
Verified Purchase
★★★★★
★★★★★
The part ordered worked as expected!
My lawn mower is back to normal operation.
Guest - May 6, 2019
Verified Purchase
< Prev
1
2
3
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Remove the blade bolt and the two washers, then remove the blade. Remove the old adapter. I had to use penetrating oil and let it sit for a while. Then I could pull it off. Clean the engine shaft. Then line up the key in the adapter with the slot on the engine shaft and tap the adapter on. I then put a sharpened blade that I already had,
... Read moreon the adapter followed by the washers and blade bolt.
Read less
Did you find this story helpful?
Thank you for voting!
Adapter for blade on shaft was stripped. The grooves that hold the blade in place had worn off and blade was turning freely.
I removed blade using 9/16 socket. I then placed a piece of plywood on the deck side of the mower from underneath while the lawn mower was upside down. I had previously removed the oil and gas just because it was time for an oil change. The plywood in place next to the shaft I used the claw hammer to pull the adapter from the shaft. Put
... Read morenew adapter on and tapped with wood mallet. Bolted down tight with new blade.
Wedge a 2x4 in to stop the blade from turning, and remove the spark plug wire. Then remove the blade bolt, washers and the blade. Remove the old blade adapter, and clean off the shaft. Place the new adapter on the shaft with the key in the adapter lined up wit the slot in the spindle, and tap it on with a mallet. Install the blade, washe
... Read morers and tighten the blade bolt. Place the wire back on the spark plug. Done.
Read less
Did you find this story helpful?
Thank you for voting!
The gears on the bottom of the blade adapter were stripped thus allowing the blade to swing freely.
1. Remove gas from tank.
2. Tip mower onto side with gas cap down.
3. Remove blade bolt with 9/16 socket wrench and remove bolt and blade..
4.Tap adapter with rubber hammer until loose.
5. Slide adapter down engine shaft until you can remove self-propel belt off pulley on adapter. Might have to use screwdriver to
... Read more get belt started off pulley then it\'s comes off easy once it\'s past the guides on the bottom of the mower.
6. Reverse procedure. Slide new adapter onto engine shaft. I put a little WD-40 on shaft first. It only goes on one way on the shaft.
7. Put drive belt back on making sure adapter is all the way up on engine shaft and drive belt is in pulley groove and under belt guides on mower.
8. Install blade onto star shape on adapter and hold in place as you install blade bolt with flat washer and lock washer. Tighten to spec with socket wrench.
9. Put some gas in the gas tank and send your girlfriend back out to mow! ;-)
1. Removed blade
2. Removed adapter - just turns and slides off.
3. Remove belt from adapter
4. Slide new adapter on making sure belt is positioned correctly. I had to remove the blade and reposition the adapter and belt a few times because the belt did not get positioned within the guards correctly and the wheel drive
... Read morewould not engage.
5. Replace blade once adapter and belt are positioned correctly.
Read less
Did you find this story helpful?
Thank you for voting!
Blade no longer fit on Adapter because it had loosened up.
After cleaning the underside of the Deck, I installed Adapter which had a pulley for the Belt . Holding the Blade being sure it was seated in place, I tightened the Bolt.
The whole job would have taken no more then 3 minutes if I didnt need to clean out the under side of the Deck.
Removed blade and replaced adapter, blade, installed with new head screw. Easy fix and mower is back in operation. Thank you for the great prices and quick service! Ken C.
Placed mower on the workbench, placed some blocks beneath it.
Removed the blade bolt with a pneumatic 3/8 ratchet, and the washers.
Removed the blade.
Remove the broken adapter.
Cleaned up the shaft and looked for damage.
Lined up the key in the new adapter, with the key way in the engine shaft and tapped it
... Read moreon with a mallet.
Replace blade, washers and blade bolt
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
3
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9982357
Manufacturer Part Number: 581473301
